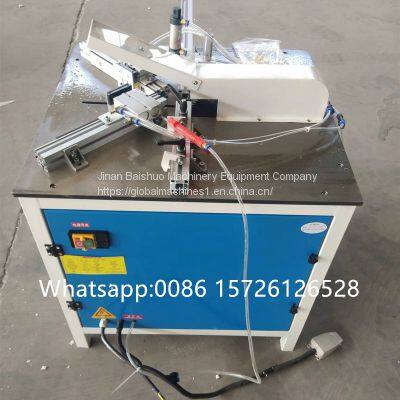

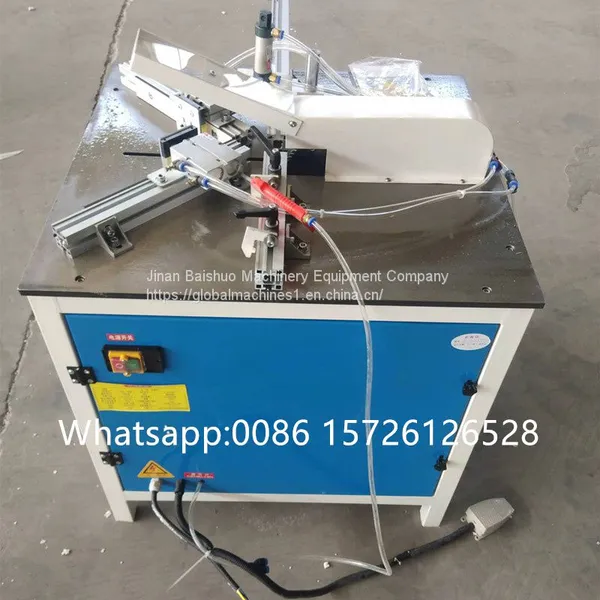

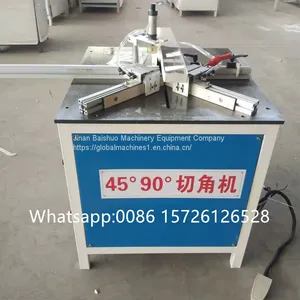

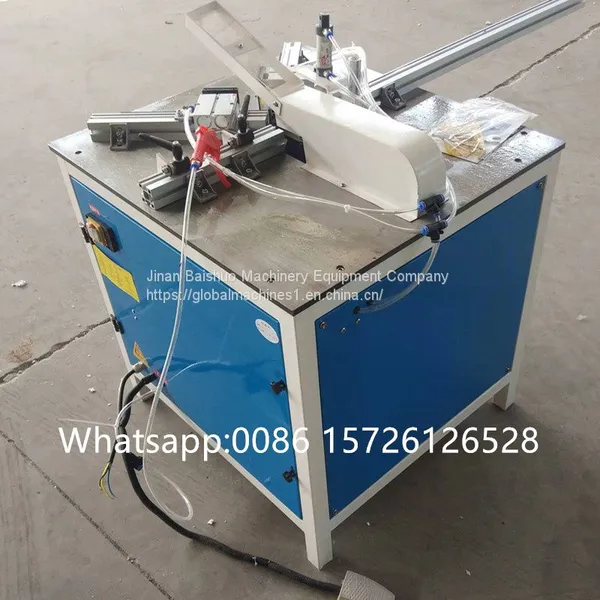

Aluminum Doors Window Single Head Photo Frame Cutting Saw Machine

Specification

1.45 degree and 90 degree angle cutter is controlled by pneumatic control system.

2.Good effect processing,table cutting speed and smooth cutting.

 3.It is widely used for aluminum alloy frame, edge banding, moulding, plastic steel, foaming strip, ABS plastic, picture frame, picture frame, photo frame Door and window frames, cabinet doors, display cabinets, aluminum for doors and windows, crystal steel door aluminum cutting and various wood products

4.45-degree and 90-degree opening cutting, equipped with standard ruler, accurate positioning, foot control, press positioning structure , Automatic waste discharge mechanism, easier to use, safe and fast.

5.This machine is available in 12-inch, 14-inch, 16-inch and 18-inch models, which you can choose according to your needs.

The machine can cut the material at 90 degrees,45 degrees, and cut the corner.

Techinical Parameter

Motor power: 1.5kw full copper motor

 Saw blade speed: 2800 rpm

Voltage: 220v 380v optional

Frequency: 50hz

Cutting angle: 45 degree and 90degree

Maximum cutting stroke: 180mm (maximum can cut 9.5 cm of material),

Saw blade size: 12-14 inches

Weight: 180kg

Dimensions: 750*700*950mm

Working form: pneumatic electric self-contained air pump

Operation form: semi-automatic
