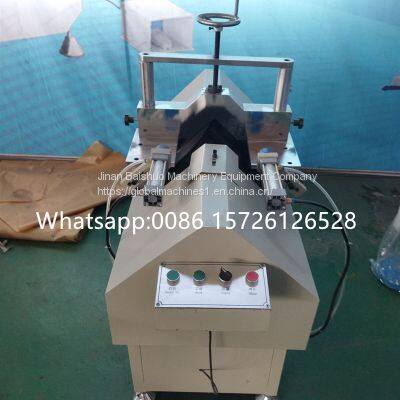

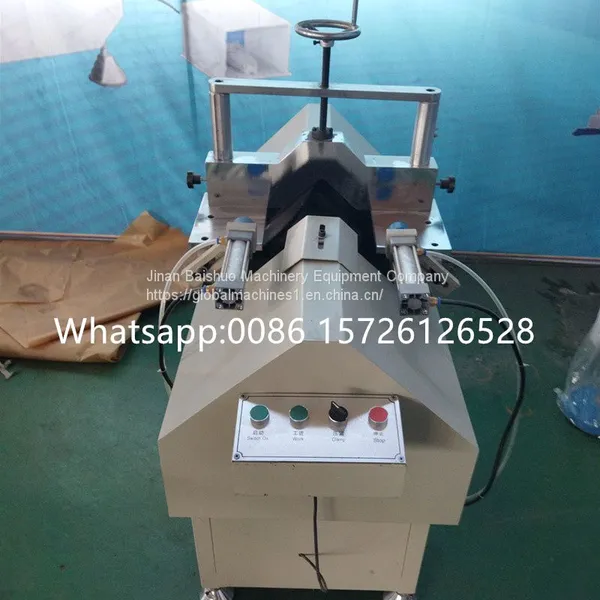

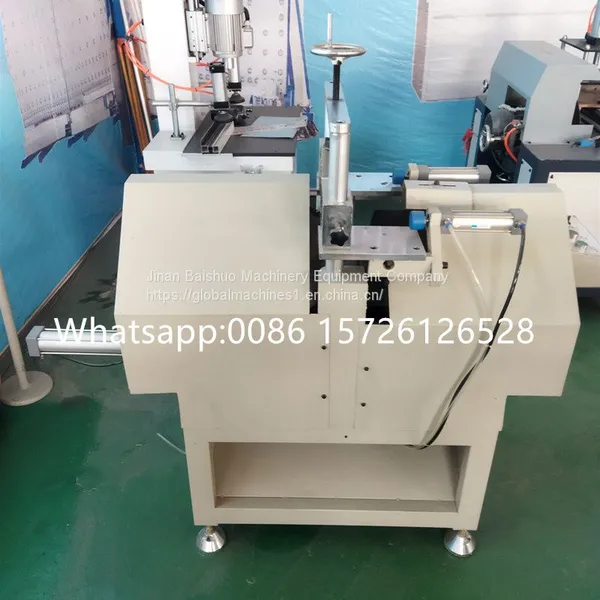

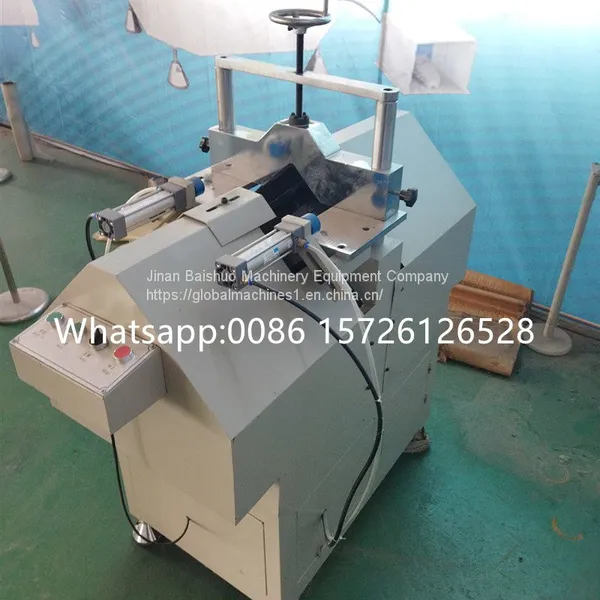

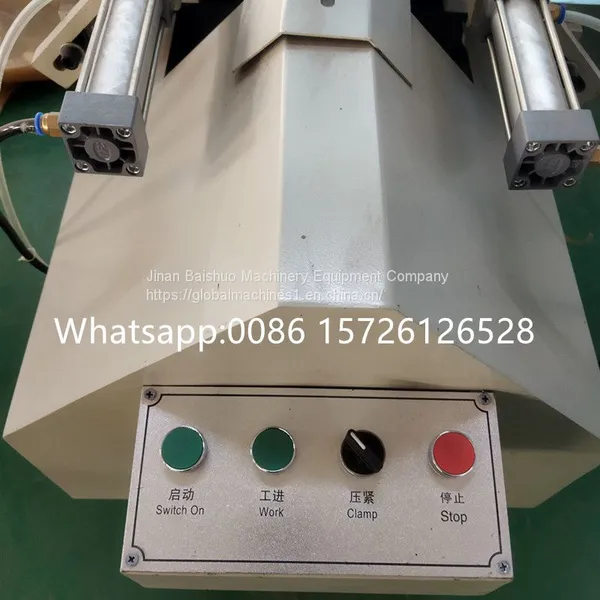

Upvc Window Mullion V Cutting Saw Upvc Window Making Machine
- QINGDAO
- T/T L/C D/P D/A Money Gram Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Double Head Aluminum Profile Drill Hole Lock Drilling Milling Machine
-
Cnc Upvc Window Corner Cleaning Machine Making Machine
-
Hot Sale 2-head Automatic Reinforcement Screw Fastening Machine
-
Quality CNC Double-head Water Slot Holes Milling Machinery
-
Aluminum Doors Window Single Head Photo Frame Cutting Saw Machine
-
Aluminum Doors Window Single Head Cutting Saw Machine
Product Details
| Brand Name | BAISHUO | Place of Origin | China | |
| Model Number | SVJ-60 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Used for upvc profile V-shaped groove cutting.
2.Adjustable V-notch depth based on different profile.
3.Adjustable feeding speed.
4.Automatic shaping of one pair of saw is cut.
5.Two saw blade on two separate motor fixed at 45 degree without cross. 6.Guide rod assist positioning.
Specification
Ø Input voltage 380V/50Hz(As Required)
Ø Input power 2*0.75Kw
Ø Spindle rotary speed 2800rpm
Ø Air pressure 0.5~0.8Mpa
Ø Air consumption 80L/min
Ø Cutting depth 20-60mm
Ø Cutting width 120mm
Ø Cutting length 300~1600mm
Ø Saw blade diameter Ø300
Ø Overall dimension 1300*700*1350mm
Contact me for details window solution
