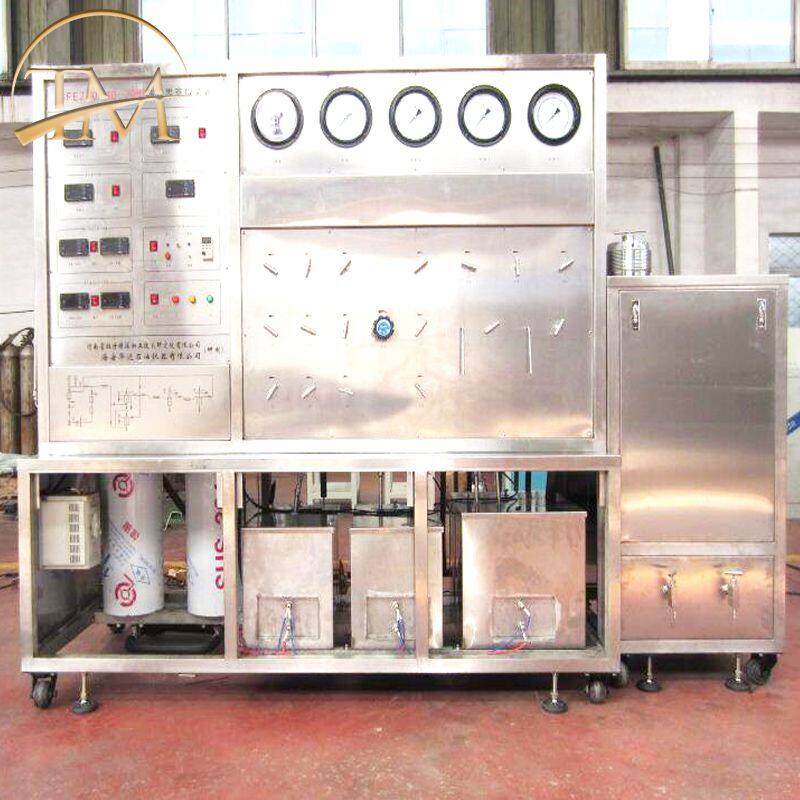

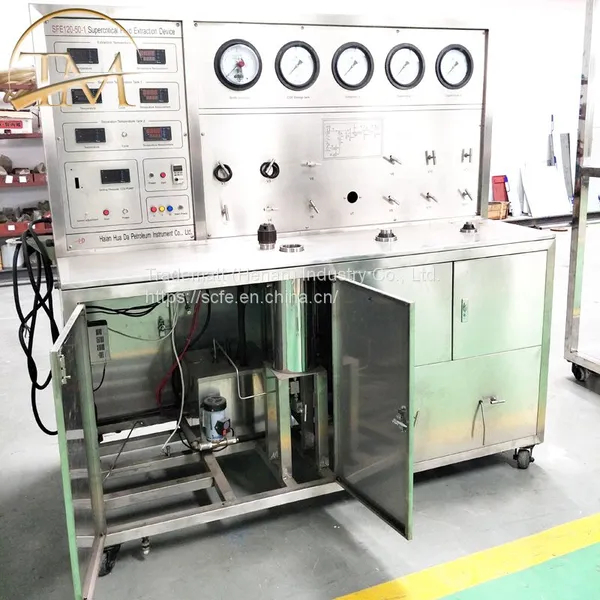

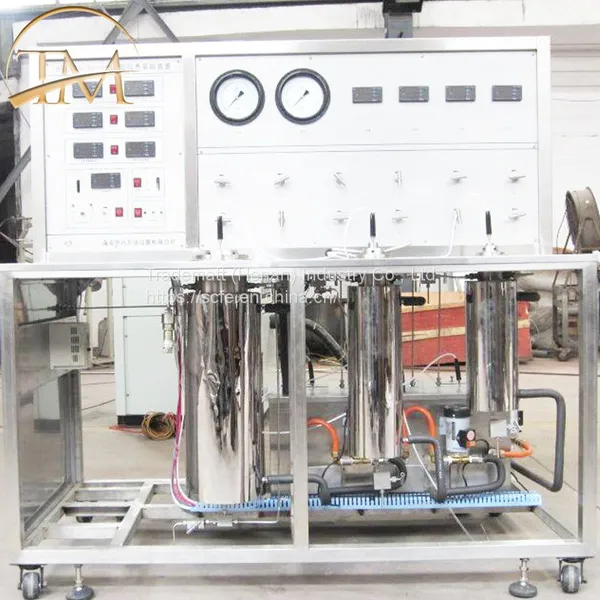

5L New Essential Oil Extraction Machine Equipment with Supercritical Co2 Extraction Technology
1.This is a multifunction device in which supercritical (CO2) fluid is used for extraction. It could extract solute from solid or liquid materials continuously.
2.It consists of one extractor, two separators, etc., with the design of fast opening cap.
3.The maximum working pressure of extractor for solid material is 500bar, and highest working temperature is up to 80℃.
4.Design pressure and working pressure of the device is in conformity with relevant design codes about high pressure vessel and its parts. Meanwhile, it is equipped with reliable over-pressure protection system.
5.The device is designed with compact structure, safe and easy to operate. There are a pressure gage to display pressure and digital instruments in control panel to display temperature and flow rate. Host computer is touch-screen type. Pipes, valves and frames are made of stainless steel (SS304).
Main Technical Parameters
a) Highest Working Pressure: 50MPa
b) Working Temperature: 25~80℃
c) CO2 Flow Rate: 0~60L/h
d) Extraction Vessel Capacity: 5L
e) First Separator: 3L/16MPa
f) Secondary Separator: 3L/16MPa
g) Installed Capacity: 15KW
h) Refrigerating Capacity: 5,100 Kcal
i) Drying Purifier: 0.5L/50MPa
j) Entrainer flow rate: 0~4L/h.
k) Voltage: 380V (AC)
Note:The configuration list is only a part of the device, please contact customer service for details.
No. | Details | Feature |
1 | Experience | More than 100 sets of industrial equipment manufacturing experience, mature application in many fields |
2 | Brand | Aerospace brand and Military quality |
3 | Technology | National engineering center process R&D support |
4 | Manufacture | A number of design patents, independent completion of core high - voltage equipment |
5 | Service | Long-term after-sales service |
6 | Function | Overall solution, turnkey project |
7 | Power Consumption | 2/3 of the imported equipment |
8 | Control | High precision automatic control ensures stable process parameters |
9 | Service | Assist user to develop and optimize operation training process |
10 | Investment | 1/3 of imported equipment |
No. | Name | Target Extract2 | Product |
1 | Gansu Yasheng Luxin Beer Material Co ., Ltd | Hops | 3X500L 1 Set |
2 | Guangzhou Honsea Sunshine BioScience &Technology Co., Ltd | Artemisinin | 3X100L 1 Set |
3 | Jofont Holding Co., Ltd (Taiwan) | Flavor and fragrance | 3X500L 1 Set |
4 | Xinjiang TomatoRed Biotech Co., Ltd | Lycopene | 4X300L 1 Set 3X1500L 1 Set |
5 | Guilin Layn Biological Technology Co.,Ltd. | Osmanthus oil | 3X100L 1 Set |
6 | Nanyang Zhang Zhongjing Super Kitchen Co., Ltd | Pepper oil, ginger oil, etc | 3X400L 2 Set 3X600L 2 Set |
7 | Chenguang Biotech Group Co., Ltd | Pepper oil/Chili oil | 3X1500L 1 Set |
8 | Xumei Flavour (Kaifeng) Co., Ltd | Tea spice | 3X500L 1 Set 3X700L 1 Set |
9 | Synthite Industries Ltd. India | Capsicum red pigment | 3X200L 1 Set |
10 | Guangzhou Hanfang Pharmaceutical Company Limited | Egg yolk lecithin | 3X300L 1 Set |
11 | Hong Kong Tangut Biotech Co ., Ltd | Seabuckthorn oil | 3X700L 1 Set |
12 | Henan Tomorrow Food Co., Ltd | Essential oils and resins | 3X600L 1 Set |
13 | Zhengzhou Xomolon Flavor Co ., Ltd | Essential oils and resins | 3X300L 1 Set 3X600L 1 Set |
14 | Macao International Biological Extraction &Separation Technology Co., Ltd | 3X500L 1 Set | |
15 | INDIA OZONE | Chilli/Ginger Oleoresin | 3X400L 1 Set |
16 | TUNISIA AGRI-LAND |
| 3X600L 1 Set |
17 | BULGARIA AGROPOLYCHIM | Coriander Seed Oil | |
18 | YUNNAN HEMPSON BIO-TECH | Industry Hemp | 3X600L 1 Set |
