Supercritical Co2 Extraction Equipment
Supercritical co2 extraction equipment description:
This supercritical co2 extraction equipment is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics, food and other industries ambient pressure extraction, ultrasonic extraction,ultrasonic essential oils, aromatic oils Ingredient extract and Extraction Vacuum pressure concentrate and other technology.This supercritical co2 extraction equipment is the ideal for universities, research institutes and enterprises, laboratories and pharmaceutical research and development departments of many varieties, small batch production use.
Features of supercritical co2 extraction equipment:
1. Equipment efficiency: This supercritical co2 extraction equipment is the latest ultra-compact ultrasonic dynamic extraction and concentration unit developed by our company's, this device optimize the product on the basis of the original dynamic extraction machine,integrated the small vacuum evaporated device in this chinese medicine, use the ultrasonic dynamic extraction, extraction, filtration, concentrated under reduced pressure, oil condensate and other production processes to saving raw materials and working hours, work efficiency have been increased by 50% to 100% than the average multi-extraction equipment.
2. Our supercritical co2 extraction equipment with the compact structure, fully exert the features of the ultrasonic shaped type generator, ultrasonic effect to the raw materials directly, using ultrasound to enhanced the mechanical action of Herbal extracts, cavitation, local high vibration, high impact, high sound pressure shearing, so that the extraction time shortened 4/5 or more than traditional methods, medicinal raw material processing capacity big.
3. Regarding the HDT Series supercritical co2 extraction equipment, the supercritical co2 extraction equipment and the vacuum evaporated device can be operate independently in use, it’s can also be linked operation.
4. Material conversion rate high, chinese medicine extractor is room temperature extraction, the active ingredient of the raw materials is not likely to lose, in the process of the concentrated in vacuo, the evaporated chamber working at the low temperatures, made the active ingredient of the heat-sensitive Within raw materials can be maximize retention. This can be make sure the quality of the material extract better.
5. Shanghai Yuda supercritical co2 extraction equipment adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. It’s applies to the extract of vast majority of Chinese herbal extracts and various ingredients;This supercritical co2 extraction equipment is equipped with water separator and efficient condenser, aroma oils are vegetable oils can be extracted.
Equipment selectable frequency range:15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.
Parameters of supercritical co2 extraction equipment:
Model |
HDT |
Capacity |
3L---1000L |
Maximum heating power |
Depending on the model, 3.5kw-20kw |
Mixing motor power |
Depending on the mode,75w-180kw |
High temperature magnetic pump power |
Depending on the mode,55w-200kw |
Ultrasonic Power |
Depending on the mode. 100w--1800kw |
Mixing control |
0-1500 rev / min, digital, stepless |
Temperature Control |
Temperature -65 °C |
Device Control |
Digital control machine |
Use solvent |
Water, ethanol, and petroleum ether |
Equipment Material |
SUS304/SUS316L |
Vacuum evaporated system |
Can be equipped with DSX-LZ stainless steel rotary vacuum evaporator |
Ultrasonic frequency |
20KHz frequency automatic tracking (standard) |
Material handling capacity |
Depending on the model, 1.2 - 50 kg / hr range |
Dimension |
1300mm*650mm*1700mm |
Pictures of supercritical co2 extraction equipment

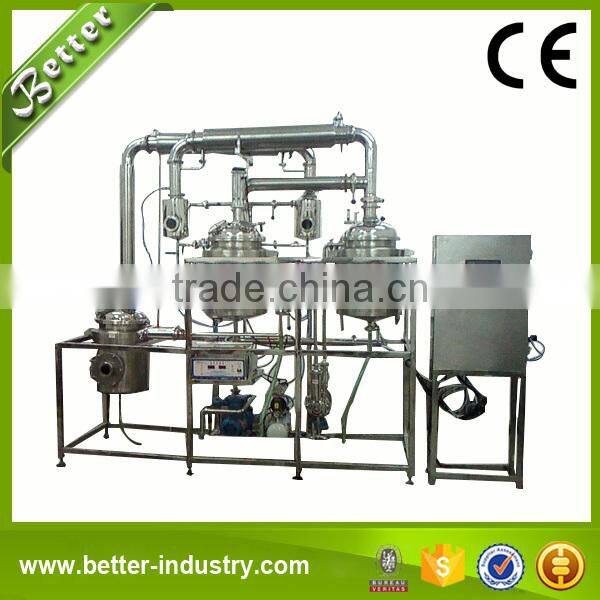

supercritical co2 extraction equipment
Supercritical co2 extraction equipment after packing
Why Choose BETTER?
1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing citronella oil distillation plant , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.
Quality guarantee:12 months after shipment. During 12 months, any problem not caused by wrong operation, we will provide spare parts for free to fix. 2 years spare parts available.
Installation: We will assemble and test the machine before packing. Also send English manual. If customer need, we will send one engineer and one translator for assembling and training of workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
What does BETTER need from me to quote a price?
1.Raw material
2.Production capacity per batch.
We supply 10L~3000L machine for you,big size of machine can be customized according to your
request.
What is your machine’ material?
Stainless steel.It can be customized according to your request.
What is suitable material for your machine?
Our machine is quite suitable for herbs,plants extracting and concentrating.
Can I do extraction test of my raw material?
Yes,of course,and we will send you videos and test report for your reference.
Can you provide us equipment if we do not know the process flow?
We have R&D department,we can do research according to your request.
What you can I get through your machine?
You can get concentrate liquid,cream and powder.
What solvent does your machine can use?
Water and Organic solvents.
It depends on your raw material and request.
Can I use the machine to extract several kinds of raw materials?
Yes,of course.
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
How will my order be packed, can you provide the installation service?
Packed in plywood case,we will assemble and test the machine before packing.
We will send English manual. If customer need, we will send one engineer for assembling
and training for workers. USD100 per person per day, food, accommodation and air-ticket
will be on clients.
Send your Inquiry Details in the Below, Click "Send" Now! Specific information and Accurate quotation
are waiting for you.
Thank you for your interest about our supercritical co2 extraction equipment !
