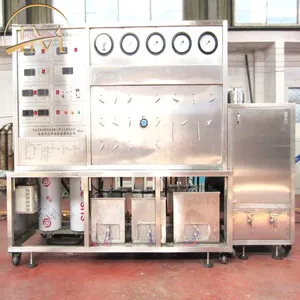

25L China Supplier Small Scale Supercritical Co2 Making Extract Machine Price
1.This is a multifunction device in which supercritical (CO2) fluid is used for extraction. It could extract solute from solid or liquid materials continuously.
2.It consists of two extraction vessels, two separation vessels, etc., with the design of quick opening cap.
3.The maximum working pressure of extraction vessel for solid material is 40MPa, and highest working temperature is up to 80℃.
4.Design pressure and working pressure of the device is in conformity with relevant design codes about high pressure vessel and its parts. Meanwhile, it is equipped with reliable over-pressure protection system.

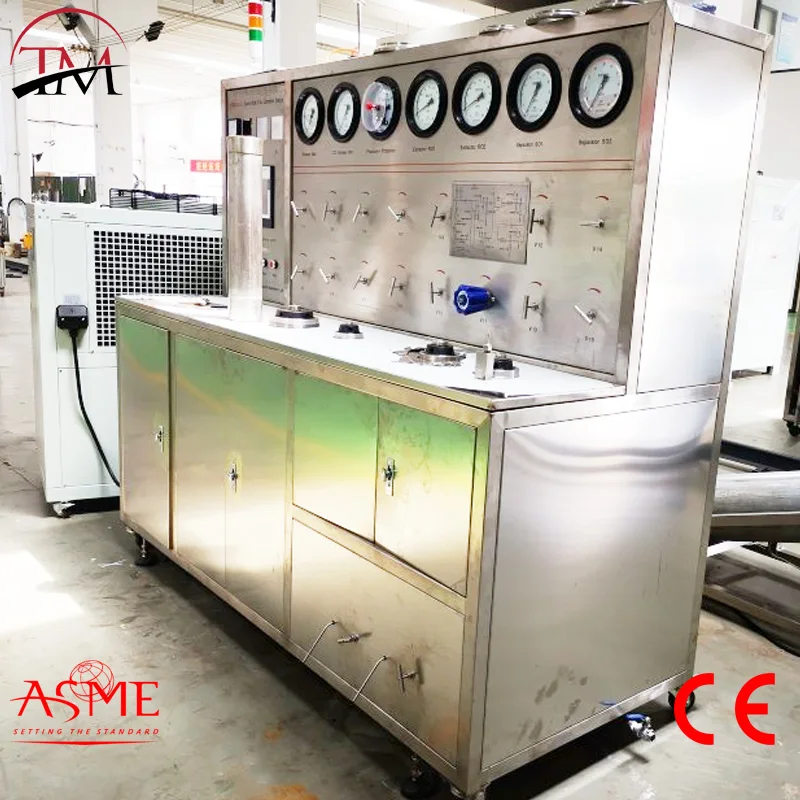

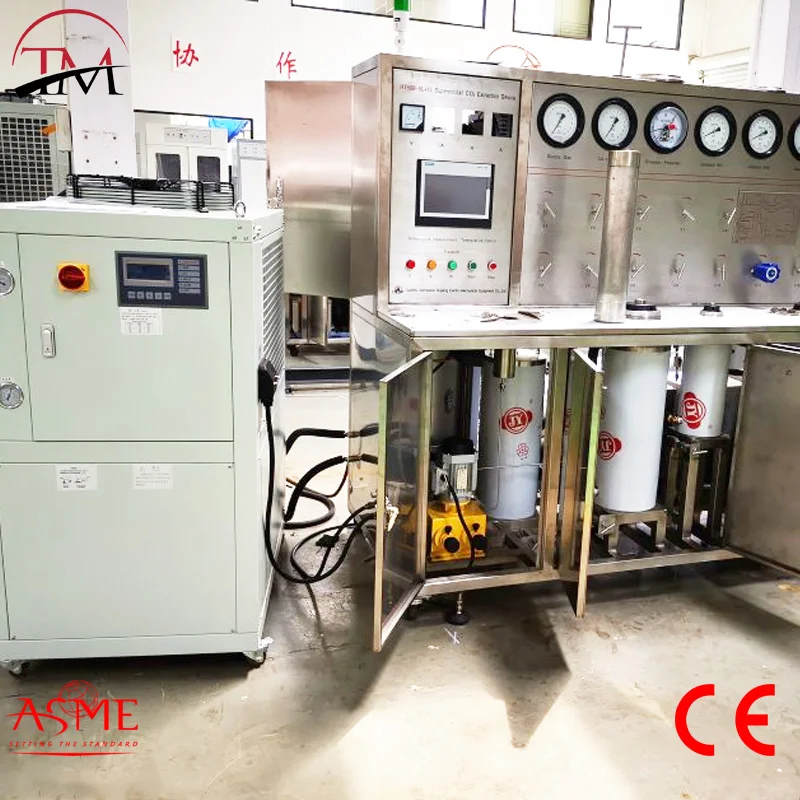

5.The device is designed with compact structure, safe and easy to operate. There are a pressure gage to display pressure and digital instruments in control panel to display temperature and flow rate. Host computer is touch-screen type. Pipes, valves and frames are made of stainless steel (0Cr18Ni9).
Main Technical Parameters
a. Highest Working Pressure: 40MPa
b. Working Temperature: 25~80℃
c. CO2 Flow Rate: 0~300L/h
d. Extraction Vessel Capacity: 25L
e. First Separator: 17L/16MPa
f. Secondary Separator: 17L/12MPa
g. Installed Capacity: 65KVA
h. Refrigerating Capacity: 20,000 Kcal
i. Drying Purifier: 3L/40MPa
j. CO2 Storage Tank: cooled by air, volume is 24L, maximum working pressure is 10MPa. Double cooling through jacket and coil structures.
k. Voltage: 380V (AC)
Training
1) Safety training about the complete equipment, including electricity, pressure, flammable and combustible, mechanical drive, health, etc.
2) Routine operating methods and steps
3) In & out of CO2 and entrainer
4) Material feeding & discharging in extraction vessel
5) Open and close of extraction vessel and separation vessel
6) Purifying activator’s feeding and dismantling, operation of automatic activation
7) Parameter settings and specific physical meanings of all control elements or units
8) High pressure valve’s operation including its control, flow regulation, temperature setting, pressure balancing, etc.
9) Procedure and method of the equipment’s routine maintenance and repair.

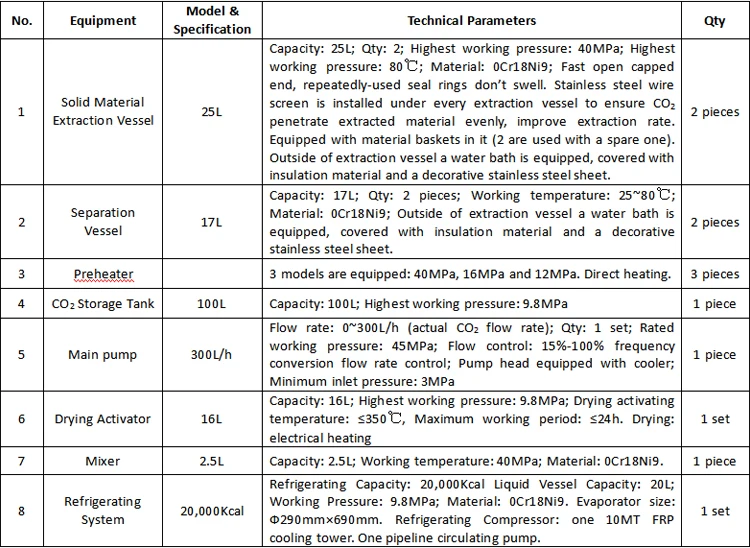

Note:The configuration list is only part of the display, please consult the customer for details.
No. |
Details |
Feature |
1 |
Experience |
More than 100 sets of industrial equipment manufacturing experience, mature application in many fields |
2 |
Brand |
Aerospace brand and Military quality |
3 |
Technology |
National engineering center process R&D support |
4 |
Manufacture |
A number of design patents, independent completion of core high - voltage equipment |
5 |
Service |
Long-term after-sales service |
6 |
Function |
Overall solution, turnkey project |
7 |
Power Consumption |
2/3 of the imported equipment |
8 |
Control |
High precision automatic control ensures stable process parameters |
9 |
Service |
Assist user to develop and optimize operation training process |
10 |
Investment |
1/3 of imported equipment |
