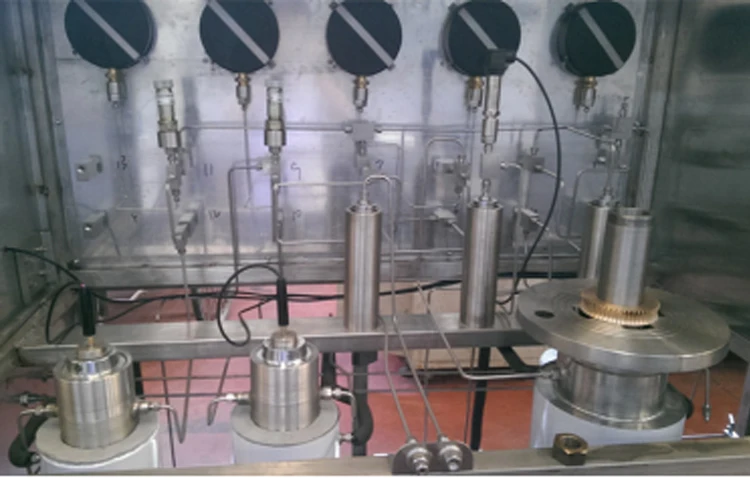

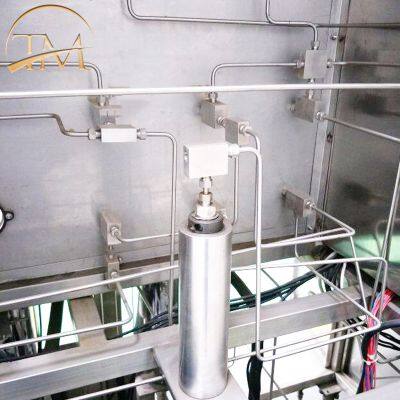

10L Supercritical Co2 Extraction Equipment Supercritical Fluid Extraction Plant
1.This system is multi-function SCFE equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the supercritical fluid.
2.It consists of one extraction vessels, two separation vessels.
3.The highest working pressure of solid extractor is 40Mpa, the highest working temperature is 80℃.
4.The design of pressure vessels according the related national standard and rule demand and with over pressure protection system which means enough safety valve.
5.The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).
Main Technical Parameters
a) Highest Working Pressure: 40MPa
b) Working Temperature: 25~80℃
c) CO2 Flow Rate: 0~100L/h
d) Extraction Vessel Capacity: 10L
e) First Separator: 5L/16Mpa
f) Secondary Separator: 5L/16Mpa
g) Installed Capacity: 15KVA
h) Refrigerating Capacity: 10,700 Kcal
i) Drying Purifier: 1L/40Mpa
j) Entrainer flow rate: 0~4L/h.
k) Voltage: 380V (AC)
Training Content
1.Safety training about the complete equipment, including electricity, pressure, flammable and combustible, mechanical drive, health, etc.
2.Routine operating methods and steps
3.In & out of CO2 and entrainer
4.Material load & unload in extraction vessel
5.Open and close of extraction vessel and separation vessel
6.Purifying activator’s feeding and dismantling, operation of automatic activation
7.Parameter settings and specific physical meanings of all control elements or units
8.High pressure valve’s operation including its control, flow regulation, temperature setting, pressure balancing, etc.
9.Procedure and method of the equipment’s routine maintenance and repair.

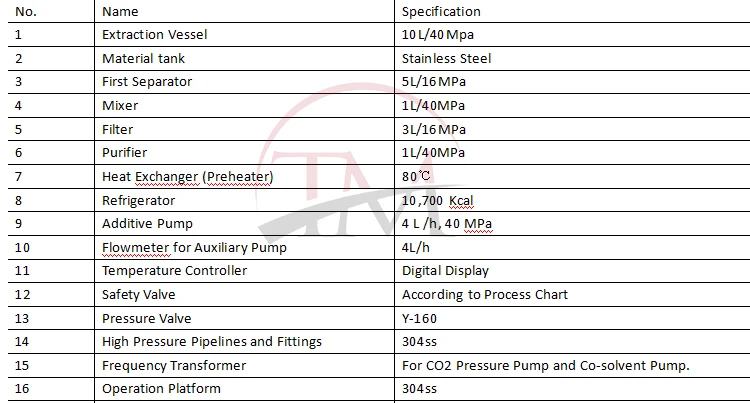

Note:The configuration list is only part of the display, please consult the customer for details.
No. |
Details |
Feature |
1 |
Experience |

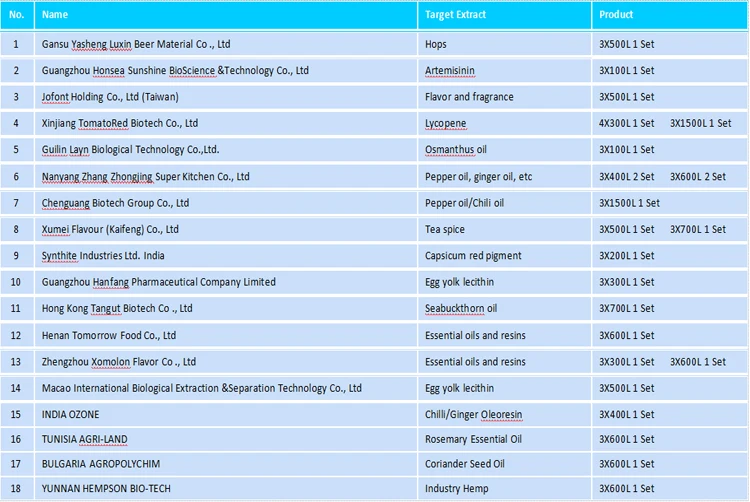

More than 100 sets of industrial equipment manufacturing experience, mature application in many fields |
2 |
Brand |
Aerospace brand and Military quality |
3 |
Technology |
National engineering center process R&D support |
4 |
Manufacture |
A number of design patents, independent completion of core high - voltage equipment |
5 |
Service |
Long-term after-sales service |
6 |
Function |
Overall solution, turnkey project |
7 |
Power Consumption |
2/3 of the imported equipment |
8 |
Control |
High precision automatic control ensures stable process parameters |
9 |
Service |
Assist user to develop and optimize operation training process |
10 |
Investment |
1/3 of imported equipment |
