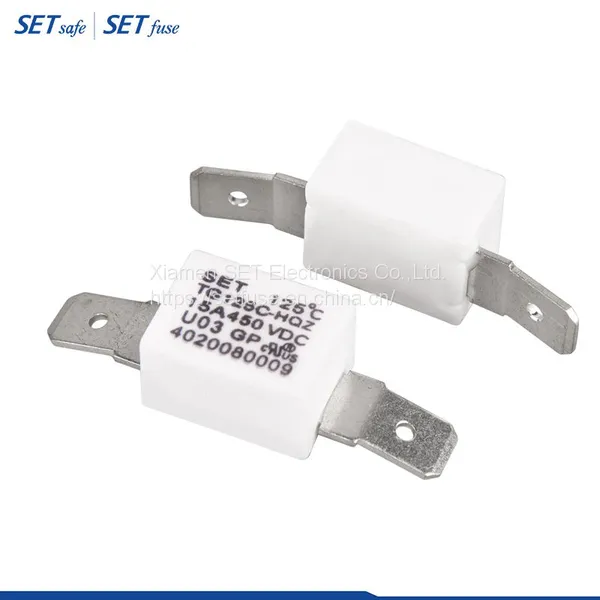

Help CenterTgxxxc Series 15A 450VDC DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector Manufacturers
Related Products
-
Arl Series 30A 600VDC DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector ManufacturersUS$ 0.01 - 10MOQ: 100 Pieces -
Tgh Series 15A 850VDC DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector ManufacturersUS$ 0.01 - 10MOQ: 100 Pieces
-
Rqf Series 10A 450VDC DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector ManufacturersUS$ 0.01 - 10MOQ: 100 Pieces
-
Tb Series 200A 125VDC DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector ManufacturersUS$ 0.01 - 10MOQ: 100 Pieces
-
50A Tvb Series DC Alloy Atco Thermal Fuse Link Cutoff Motor Protector ManufacturersUS$ 0.01 - 10MOQ: 100 Pieces
Rated Current (Ir): 15 / 20 A
Rated Voltage (Ur): 400 / 450 VDC / 600 VAC
Rated Functioning Temp. (Tf): 86 ℃ ~ 150 ℃
UNIQUE
Xiamen SET Electronics Co., Ltd.
DC-Alloy Thermal-Link / DC-Alloy Thermal Cutoff (DC-ATCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment and electric vehicle. DC-ATCO is mainly consist of Thermal Element, Flux Resin, Case, Sealant and Lead Wires. Normally, thermal element is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of DC-ATCO, the thermal element melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely.
SETsafe | SETfuse DC-Alloy Thermal-Link is classified into Axial and Radial shapes, with Rated Current 10 A to 200 A, Rated Functioning Temp. 76 °C to 230 °C, with UL, cUL , Approvals and RoHS, REACH compliant.
● 0 to 450 VDC / 0 to 600 VAC Operating Voltage
● High Accuracy of Functioning Temp.
● Ceramic Case
● Non-Resettable
● RoHS & REACH Compliant
Stud, Soldering
Axial
● Battery Cooling Systems
● Precharged Resistors
● Automotive Air-Conditioners
● Heaters
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
UL (America):
Standards: UL60691
File NO.: E214712
UL_DC-ATCO_TGxxC SETsafe & SETfuse.pdf
cUL (Canada):
Standards: CAN-CSA-E60691
File NO.: E214712
cUL_DC-ATCO_TGxxC SETsafe & SETfuse.pdf
● Shape of Electrode Leads
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
