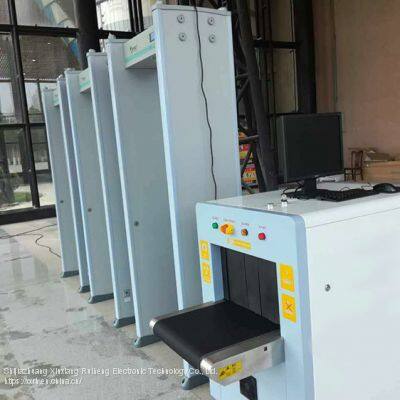

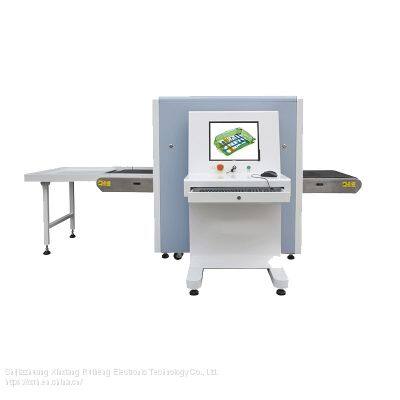

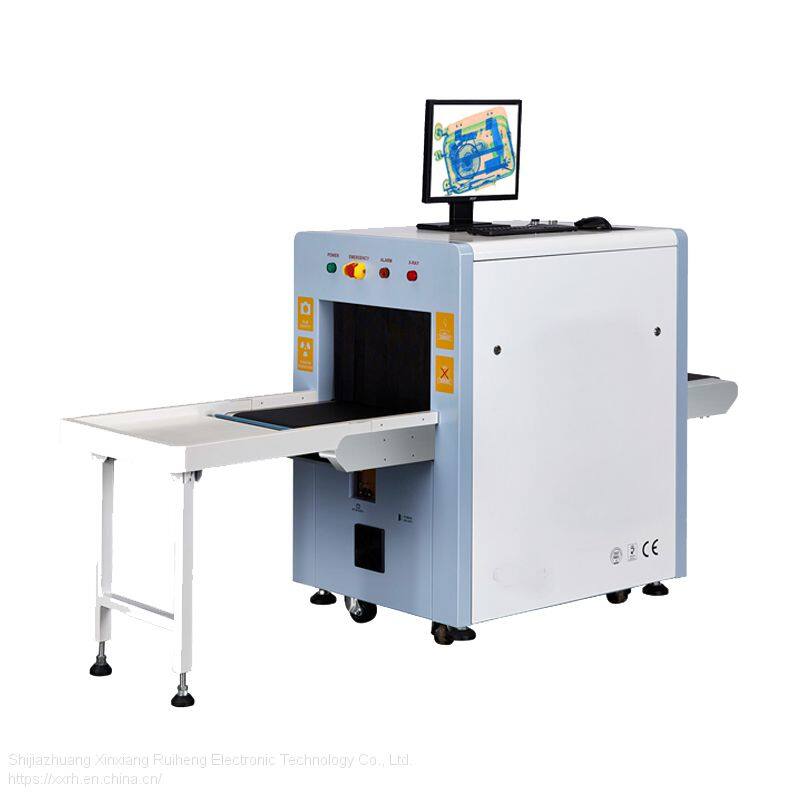

X-ray safety inspection equipment
Brand: KamHunt
Model number: X5030
Origin: China
A: Function introduction
Detection objects: parcels, mail, small bags, suitcases, carrying bags and other small items.
Applicable places: finance, factory, express delivery logistics, sports, education, medical care, tourist attractions, post office, hotel and other places and many fields.
The most tangible technical advantages:
One-button shutdown: shutdown only need to rotate the key, the equipment automatically safe shutdown, more humanized.
Emergency stop layered control: press the tight stop button, only power off the transmission and ray source part, safer.
Waterproof function: special treatment in the channel, a small amount of liquid passengers scattered without impact, more assured.
Magic mirror function: unique mouse magnifying glass function, any local details amplification, more accurate.
infinite amplification function: 128 continuous infinite mouse amplification function, more continuous.
Magic keys: instead of the traditional keyboard, when the mouse is put on the soft button, the software intelligent recognition control, more intelligent.
Fault self-diagnosis: automatic fault judgment, and give prompt information for easy maintenance.
Two: technical standards
Electrical appliances shall refer to the EN60950 safety standard
Radiation is performed according to the EN50081-1 standard
Strictly implement the current national standards for X-ray security inspection equipment
Fully passed the ISO14001:2004 environmental management system certification
Fully passed the OHSAS18001:2007 occupational health and safety management system certification
Through the ISO9001:2000 quality management system certification
Full EU CE certification
Three: technical parameters
Overall dimensions: 1650 (long) x 722 (W) X 1150 (H) mm
Channel size: 500 (width) X 300 (height) mm
Transfer speed: 0.22m / sec
Drag weight: 150 kg
Resolution: 0.07871mm diameter wire
Spatial resolution: horizontal diameter 1.0mm; vertical diameter 1.0mm
Penetration resolution: 0.101mm in diameter
Penetration: 16mm steel plate (customizable)
Film safety: Safety for IS01600 film
Ray beam direction: bottom type
Pipe current: 0.4-1.2mA (adjustable)
Tube voltage: 80-100KV (adjustable)
Leakage dose:
Ray-beam divergence Angle: 60
Cooling / working cycle: sealed oil cooling / 100%
Working environment: -20 C~ + 60 C / 20%~95% (non-condensation)
noise:≤55dB(A)
Operating voltage: 220VAC (± 10%) 50 ± 3HZ
Power consumption: 0.5KVA / h
image processing:
Array detector: L-type photoelectric secondary tube single energy detector
Display: High-resolution 19-inch LCD display
Pseudo-color: image display, 24-bit color display, 12bit depth
Edge enhancement: clearer contour edges
Super image enhancement diagram: clearer image details
High wear display: improve the contrast of the image bright area, and make the easy penetration area clearer
Low penetration display: improve the contrast of the image dark area to make the difficult penetration area clearer
Lighting / shading: Increase the brightness of the image / decrease the brightness of the image
Pull back / front pull: Pull and process the current 30 images
Image recovery: The image display returns to the original state
Image storage: 500,000 images continuously and can be processed
