Home > Construction & Decoration > Fence > Security Fence > X-ray Machine Security Inspection Machine The Parcel Inspection

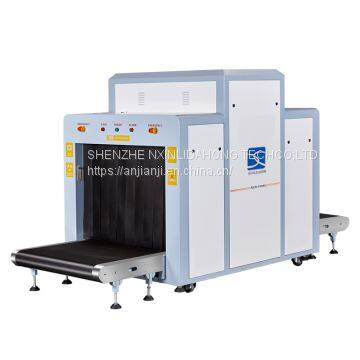

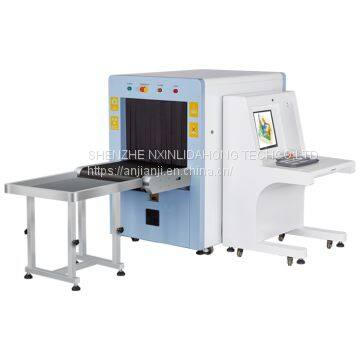

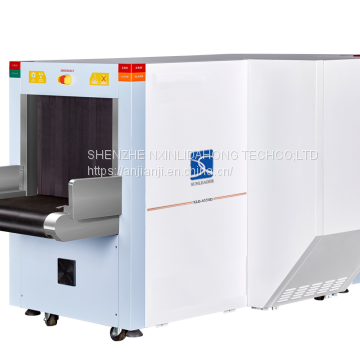

X-ray Machine Security Inspection Machine The Parcel Inspection

Name: X-ray Machine Security Inspection Machine The Parcel Inspection
Brand: SUNLEADER
SKU: 163056665
Availability: InStock

X-ray Machine Security Inspection Machine The Parcel Inspection thumbnail-1

X-ray Machine Security Inspection Machine The Parcel Inspection thumbnail-2

X-ray Machine Security Inspection Machine The Parcel Inspection thumbnail-3

X-ray Machine Security Inspection Machine The Parcel Inspection thumbnail-4

X-ray Machine Security Inspection Machine The Parcel Inspection thumbnail-5

X-ray Machine Security Inspection Machine The Parcel Inspection photo-1

X-ray Machine Security Inspection Machine The Parcel Inspection photo-2

X-ray Machine Security Inspection Machine The Parcel Inspection photo-3

X-ray Machine Security Inspection Machine The Parcel Inspection photo-4

X-ray Machine Security Inspection Machine The Parcel Inspection photo-5

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

SUNLEADER

Place of Origin:

China

Model Number:

XLD

Contact Supplier Request Quote Chat Now

Shenzhe Nxinlidahong Techco;ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name SUNLEADER

Place of Origin China

Model Number XLD

X-ray machine security inspection machine The parcel inspection

Quick details:

* Economic model

* Single energy

* Built-in ARM CPU

* Energy saving design

* MTBF: More than 10000 hours

* With Digital Signal and Processor

Product Data:

Model	XLD-
Tunnel size(mm)
Conveyor Speed(m/s)	0.20 (±10%)
Conveyor height(mm)	668
Conveyor Max Load(KG)	100KG
Unit Weight(KG)	300
Unit size	1531mm(L)* 668mm(W)* 860mm(H)
Generator	100KV, oil cooling, from bottom to top
Penetration	Typical 16mm steel, guarantee 14mm steel
Wire Resolution	Typical AWG40, guarantee AWG38
X-Ray dosage /inspection	Typical 1μGy/h, guarantee 1.5 μGy/h
Boundary Leakage	Typical 0.3μGy/h, guarantee 0.35μGy/h
Power consumption	Max0.5KW
Noise
Film Safety	Guarantee ASA/ISO1600 Film
Computer	CPU: Cortex A9
Display monitor	Dell or Acer, 17" LED screen, resolution 1280*1024
Operation System	LINUX
Image Enhancement	1-16times enlargement continuity, Color/BW, negative,high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color,etc.
Image Archive	At least 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Image Recall	All preceding images re-callable,retrieval.
Other Functions	Fault diagnosis, system time setting, detection blind dots delete, x-ray source setting(analog or digital), alarm setting, images setting, software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operation temperature/Humidity		0C‐45C / 5%-95%(non-condensing)
Storage temperature/Humidity		-40C‐70C / 5%-95%(non-condensing)
Operation Power		220VAC(±10%) 50±3Hz 100VAC,110VAC,120VAC,200VAC (optional)

XLD- X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment (GB15208-94)”.
