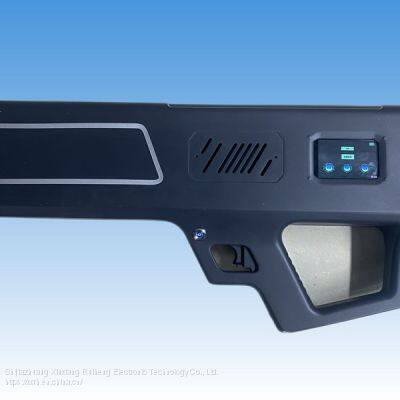

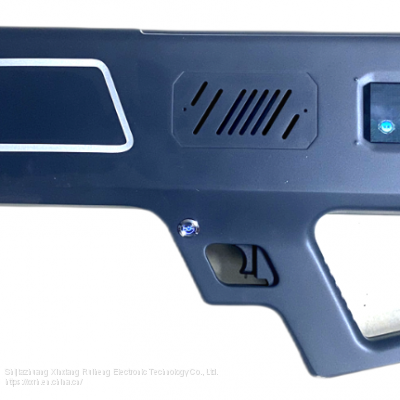

Almhunt Handheld Drone Countermeasure Equipment

Guns-type drone jamme BrandModel number: DDS-0001

Origin: China: CalmHunt、II.First, preface

Commercial drones have now sparked great concern about privacy violations.Because most drones are equipped with high-definition cameras to take aerial photos, violate personal privacy, take photos and personal property.And drones can be used for drug smuggling, bomb bombing to destroy construction facilities, acting as spies, throwing bombs, shooting guns, information leaks, and carrying biological and chemical weapons to destroy protected areas.Therefore, drone jamming devices have emerged.It is also necessary to protect our privacy and personal space by interfering with remote drone signals.The multi-functional uav jamming instrument system developed by Hebei Daxin Electronic Technology is mainly for the most commonly used remote control signal of interference with commercial UAV, GPS navigation system and wireless digital transmission of 5.8G.

II. Brief introduction of the working principle

The KamHunter series UAV countermeasures system will not destroy or damage the UAV, its main working principle is to interfere with the UAV flight control system, signal transmission system, enabling the UAV to achieve vertical landing or automatic return.

The ® DDS-0001 is a rifle-shaped, simple, fast deployed, single operation, a large capacity battery and an interference distance of more than 1200 meters.The KamHunter series UAV countermeasures system mainly functions in 2.4GHZ and 5.8GHZ interference bands, And GPS GPS 1.5GHZ system interference, By blocking with frequency interference, Implement interference countermeasures against the UAV flight control system, GPS system and data transmission system, Blocking the connection between the drone and the operator, Force the drone to land smoothly to the ground or return home automatically, The UAV jamming instrument can effectively control all the low-altitude multi-rotor drones on the market, Once the device is turned on, It can fail the remote control of the drone, Images and videos taken could not be returned, The GPS navigation system loses its signal, Cut off the drone from the remote control or even the ground end completely, So as to ensure that some important information is not leaked, to avoid important facilities have drone invasion accidents.

III. Product Description

This jammer is a directional gun jammer, which is mainly forced control for the UAV or flight model aircraft in the flight state. Cutting off the connection between the UAV and the remote control, the jammer can be forced to ensure the safety of the low-altitude airspace in the area.

product function.

1. Cut off all connections between the drone and the controller: the drone remote control fails.

2. The ground control of the UAV cannot receive aerial pictures and videos;

3. The UAV cannot locate; the jamming mer can force the UAV to return or crash land;

IV. Technical parameters

Power supply mode: the built-in rechargeable lithium battery lithium battery can work continuously for 1 hour

Operation mode: can be operated with one hand or both hands, light and portable

Heat dissipation system: module: integrated heat dissipation, environment: PWM temperature control fan

Host structure: high-strength ABS material

Interception mode: forced return, forced landing, map transmission interference

Interception channel: three channels

Open mode: three-band independent switch

Support frequency band: 1.5G / 2.4G / 5.8G

Antenna:, directional antenna

Long-distance control: 1,200 meters

Operating temperature: -45℃ - + 55℃

Storage temperature: -50℃ - + 60℃

Weight: 2.5KG

Additional function: power quantity display

1.Equipment with small size, light weight, individual portable operation; 2, accurate blocking frequency, directional high gain antenna, long distance and visual standard;

3, imported chip, ensure quality and stability; 4, built-in large capacity battery, ensure long standby; 5, integrated design, without any terrain environment; 6, simple operation, start can work, without professional skills.The main advantages of other drones in the market are as follows:

1. Signal source upgrade: module integration, quasi-realize signal integration gain, reduce signal divergence, and make the signal more accurate;

2. Battery upgrade: using high-performance polymer lithium battery, capacity increase, volume and weight reduction, sustainable work for 1 hour;

3. Heat dissipation system: integrated heat dissipation, with better heat dissipation effect;

4. Appearance design: integrated ergonomic integration design, push and pull gun support, suitable for different people to hold, increase comfort;

5. Main engine structure: adopt industrial-grade high-strength materials

V. the main application:

UAV counter, drones is mainly applicable to the airport, public judicial system, prison, jail, rehab, drug center, security agencies, troops, large events, concerts, important meetin
