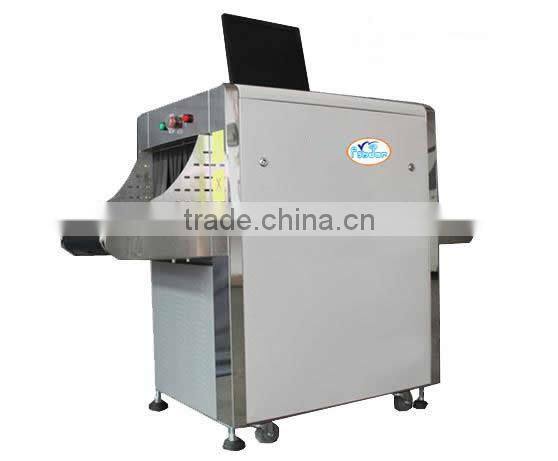

5030A model x-ray cargo security inspection machine
VX5030A security x ray luggage scanners
Advantages
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spell-man brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Inter-roll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Features
• Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
• Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
• Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
• A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automatic ,reduce equipment failure.
• Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
Product Certification
• Strict quality internal control , double-check principles of engineering and production
• Safeguard measures for machine parts
• Through the testing by Ministry of public security and police use electronic product quality testing center
• Through the EU CE certification
• Through the ISO9001 quality management system certification
• Through the ISO14001 environmental management system certification
• Through the GB/T28001 occupation health and safety management system certification
• Through the provincial Environmental Protection Department of radiation safety certification
• Through the provincial occupation health inspection center detection of radiation
• Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
• Double soft certification
Image Processing System | |
X-ray sensor | Dual energy l shaped photo diode array detector |
Monitor | high resolution 19 inch LCD BenQ monitor |
Color image display | 24-bit true color display |
Edge Enhancement | the outline of objects will be more clear |
Super Image Enhancement | the details of the image are more clear |
High penetration display | improve image contrast in bright areas, so the easy penetrating area will be more clear |
Low penetration display | improve image contrast in dark areas, so the difficult penetrating area will be more clear |
Magnifier local | amplification function |
Brighten / darken | Increase / decrease image brightness |
Image pull back / front pull | Show the top 20 images, and the current image can be any image processing |
Image Restoration | Restored to its original state |
Image Storage | Real-time save any image, any image can be processed arbitrarily ,continuous work to save |
Technical standards | Technical parameters |
By size | 530mm (w)*350mm(h) |
Conveyor speed | Hour detection 600ps / h toy shoes products 0.22m/s |
Load | <70kg |
Resolution | Ø0.0787 mm |
Conveyor height from the ground | 700mm |
Penetration | 27mm steel |
Monitor | BenQ 19in LCD monitor |
Storage | 500G hard drive to save any image in real time, can store more than 100,000 |
Noise | ≤55dB(A) |
Operating system | Windows XP |
X-ray dosage per inspection | <0.1mR |
Leaking radiation dose rate | Away from any device outer surface of 5cm, the ray irradiation leak rate should |
Dimensions | < 1620*850*1145mm |
NW / GW | 280 kg / 350 kg |
Applications
Designed for small mail parcel security check, primarily serves the post Express Logistics Center of small parcel safety testing centers.
