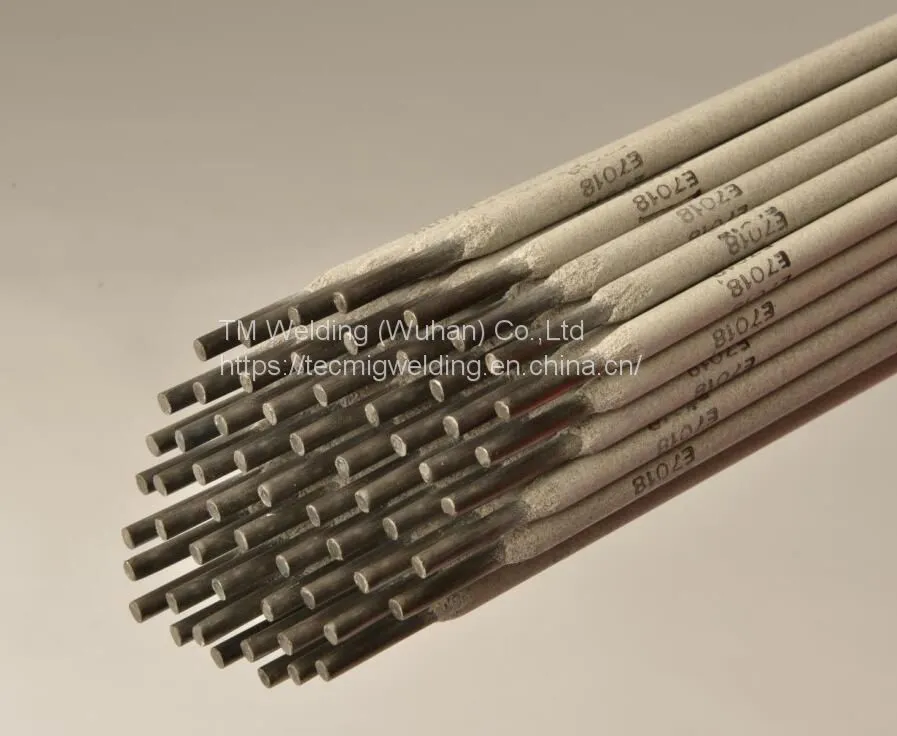

TMW Extra Low Temperature Low Hydrogen Iron Powder Basic Electrodes E7018-1 H4
US$ 1200 - 1500
MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
TecMig
Place of Origin:
China
Model Number:
E7018-1 H4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
25 days
Related Products
-
TMW Cellulose Pipe Welding Electrodes E6010 E6011 E7010US$ 1300 - 1600MOQ: 5 Metric Tons -
TMW Stainless Steel Electrodes E308L-16 E309L-16 E316L-16US$ 5000 - 7000MOQ: 5 Metric Tons
-
TMW Cast Iron Electrodes Niquel100, Ni99 Ni55 ENi-CI, ENiFe-CIUS$ 25000 - 35000MOQ: 5 Metric Tons
-
TMW Mild Steel Solid Mig CO2 Welding Wires ER70S-6 ER50-6 G3Si1 SG2 G4Si1US$ 1200 - 2500MOQ: 5 Metric Tons
-
TMW Low Alloy Steel Solid Mig CO2 Welding Wires ER70S-2 ER70S-3 ER70S-4 ER80S-D2US$ 1200 - 2500MOQ: 5 Metric Tons
Brand Name
TecMig
Place of Origin
China
Model Number
E7018-1 H4
Material
Other, Mild steel
Diameter
1.6-5.0mm
Weight
5kg/pack
Application
arc welding
Melting Point
300
Flux Content
rutile
E7018-1 H4
AWS A5.1 E7018-1
ISO2560-A E42 4 B 3 2
GB/T5117 E5018
Description：
An improved formulation of E7018, which ensures good impact value at -45℃.
Diameters:
2.5mm, 3.2mm, 4.0mm, 5.0mm.
Typical Mechanical Properties:
Tensile strength(MPa): |
572 |
Yield strength(MPa): |
480 |
Elongation (%): |
28 |
Impact values(≥47J/-45℃): |
110 |
Typical Chemical Compositon:
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
V |
0.060 |
1.26 |
0.017 |
0.012 |
0.25 |
0.008 |
0.028 |
0.035 |
0.014 |
Welding Current:(AC/DC+)
Diameter(mm) |
2.5 |
3.2 |
4.0 |
5.0 |
|
Current/A |
F/H |
70-110 |
100-140 |
140-170 |
190-240 |
Current/A |
V/OH |
60-70 |
80-110 |
130-150 |
-- |
Note:
1.The electrodes must be baked 1-2 hours in 350℃-450℃ before using.
Rusty, oil stains, water and other impurity on the weld parts must be cleaned before welding.
