PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine

PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine photo-1

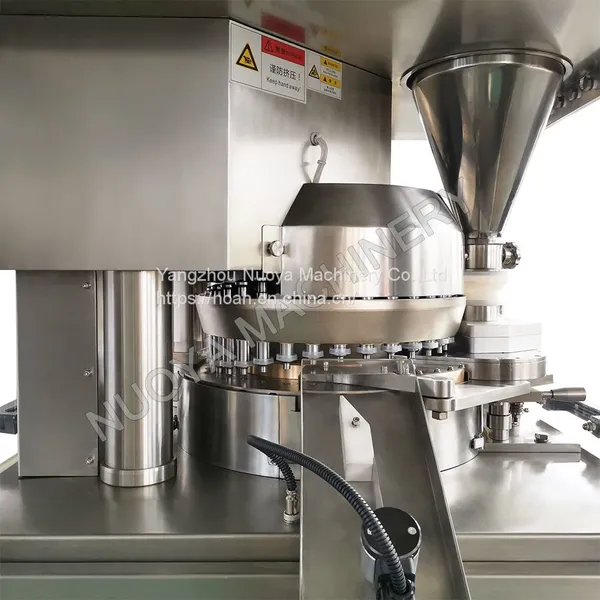

PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine photo-2

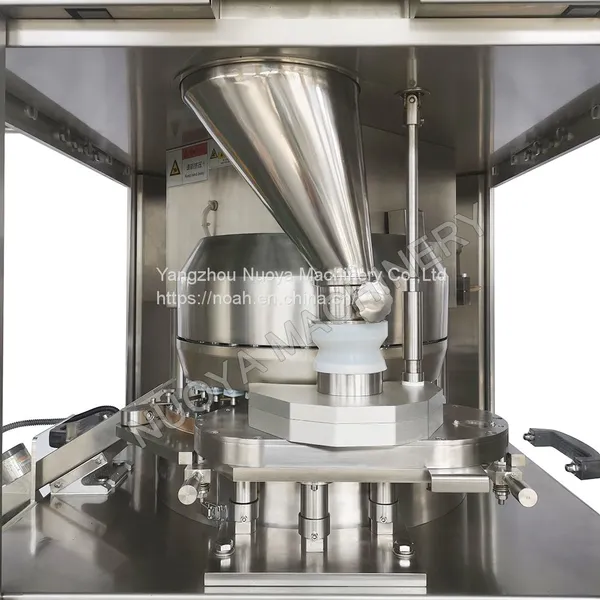

PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine photo-3

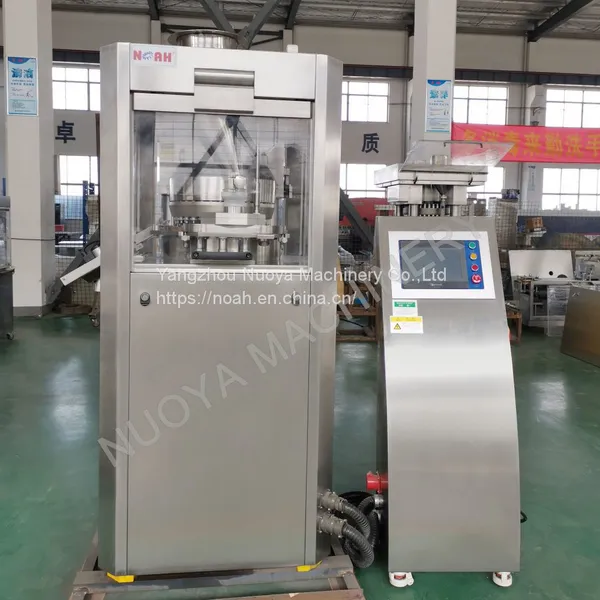

PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine photo-4

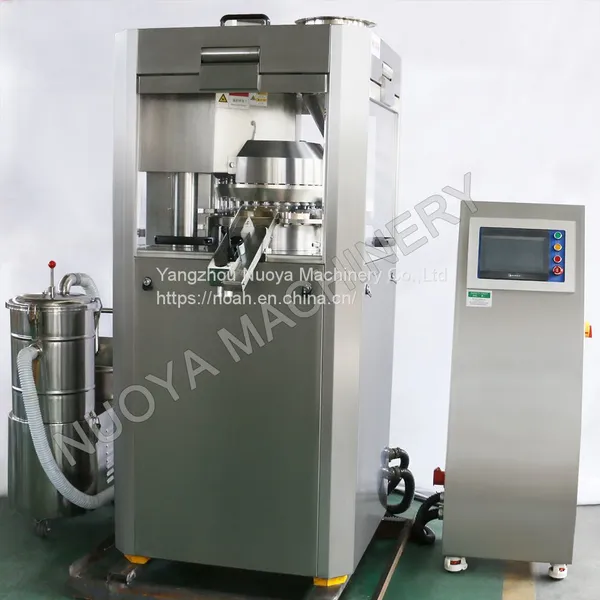

PG26 High Speed Automatic Rotation Continuous Compression Large-scale Rotary Tablet Press Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
25 days
PG26 High speed automatic rotation continuous compression large-scale rotary tablet press machine
Products Description
Model
PG26
PG32
PG40
Number of Station
26
32
40
Max. Output (tablets\h)
40000-170000
40000-190000
40000-240000
Max. Tablet Diameter (mm)
5.5-25
Round tablet 5.5-16mm
irregular shape tablet
Round tablet 5.5-13mm
irregular shape tablet
Max. Filling Depth (mm)
20
16
16
Max. Tablet Thickness (mm)
1-8
1-6
1-6
Max. Compression Force (kN)
100
100
100
Max. Pre-compression Force (kN)
20
16
16
Main Drive Power(kW)
10
7.5
7.5
Overall Dimension (L*W*H) (mm)
800*1200*1860
950*1300* 1850
950*1300* 1850
Weight (kg)
1800
2000
2000
Applications:
The PG26 High speed automatic rotation continuous compression large-scale rotary tablet press machine is equipment of the first choice for tablet production. Selecting punches and dies with different specifications, Tablets in circular shape, abnormal shapes, with printed patterns and characters can be pressed.
Characteristic

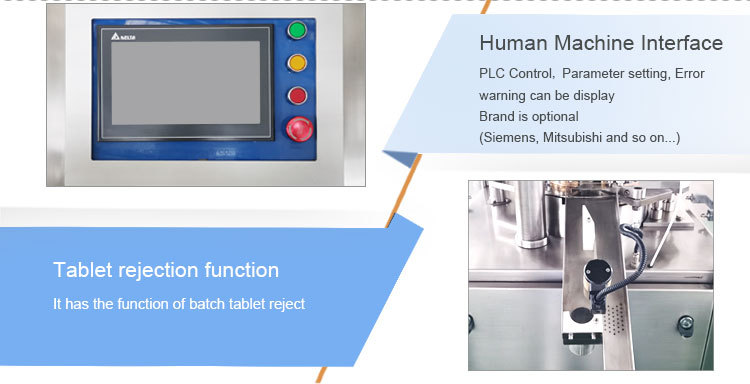

1.Design of GMP, PLC control, high quality all stainless steel construction
2.Automatic lubrication system & dust-proof sealing system
3.New design of support structure with high support ability, suitable for medicine tablets & tablet of irregular shapes
4.Up & lower punch over-tight protection, overload protection, emergency stop, failure alarm
5..Main pressure & pre-pressure, filling range adjustable, and forced powder feeding.
6.  Low-speed control detection, with waste rejection function and control of tablet weight

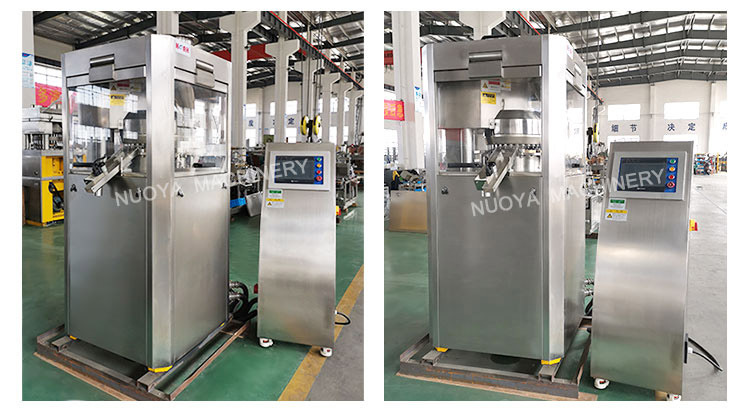

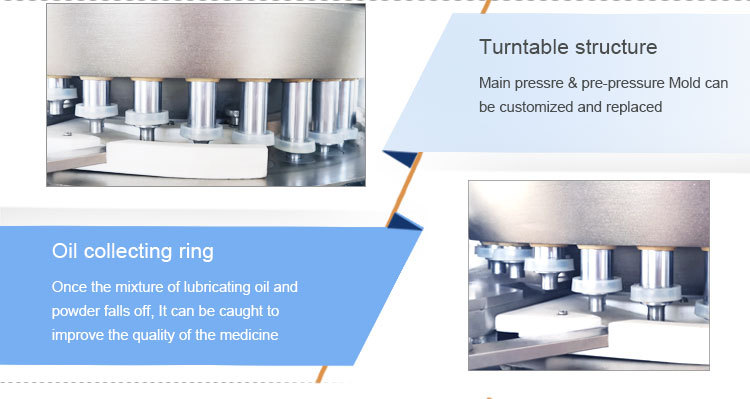

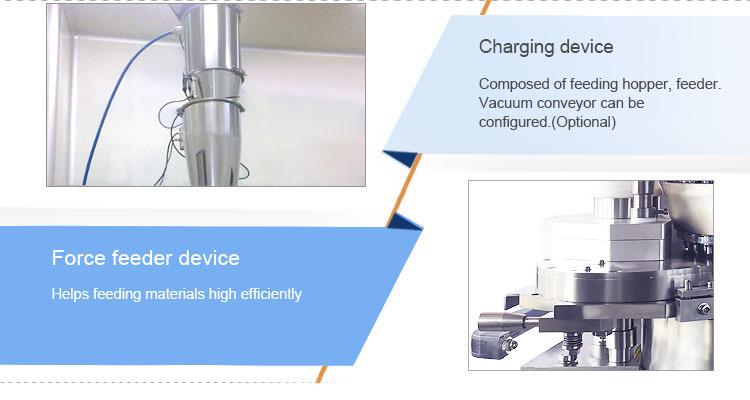

Details Images
