GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine

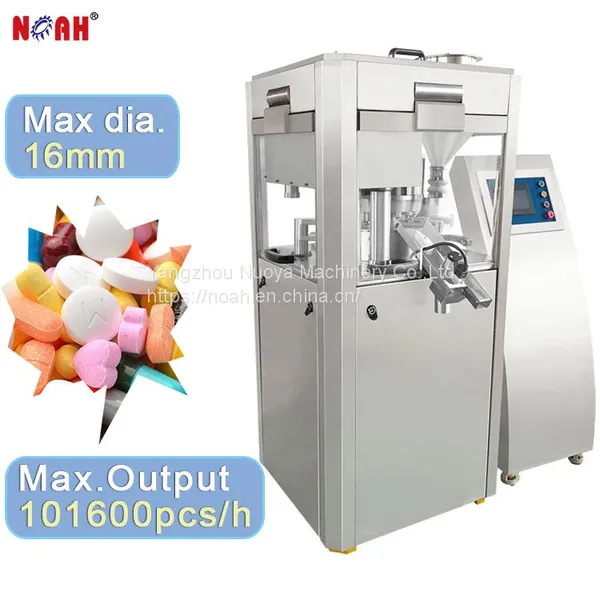

GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine photo-1
GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine photo-2
GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine photo-3
GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine photo-4
GZP-22 GMP Pharmaceutical Medicine and Food Tablet Pill Press Machine photo-5
US$ 12800.0 - 28000.0 MOQ: 1 Set
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangsu
Delivery Detail:
25 days
GZP-22 GMP Pharmaceutical medicine and Food tablet pill press machine
Products Description
Model
GZP-17
GZP-22
GZP-26
Number of Station
17
22
26
Single Sided
Single Sided
Single Sided
Single Sided
Max. Output (tablets\h)
78500
101600
120100
Max. Tablet Diameter (mm)
22
16
10mm
Max. Filling Depth (mm)
16
16
12mm
Max. Tablet Thickness (mm)
10
10
6mm
Max. Compression Force(KN)
100
100
100KN
Max. Pre-compression Force (KN)
16
16
16KN
Feed mechanism
Forced feeding
Forced feeding
Forced feeding
Main Motor Power(kW)
5.5
4
5.5
Power requirement
380V, 50HZ, 3P
380V, 50HZ, 3P
380V, 50HZ, 3P
Overall Dimension (m)
0.6*0.7*1.8
0.6*0.7*1.8
1*1.2*1.7
Weight (Kg)
1200
1150
1250
Applications:The GZP-17 Pharmaceutical Effervescent Tablet Press Rotative Pills Machine provides new design principle, which makes standardization, modularity and series design come true. The characteristic of machine is high-precision, sub high-speed and automation. It is suitable for high output and large batch production. Selecting punches and dies with different specifications, Tablets in circular shape, abnormal shapes, with printed patterns and characters can be pressed.II. Features1.Design of GMP, PLC control, high quality all stainless steel construction 2.Oil-proof & dust-proof sealing system 3.New design of support structure with high support ability, suitable for medicine tablets & tablet of irregular shapes 4.Up & lower punch over-tight protection, overload protection, emergency stop, failure alarm 5.. Main pressure & pre-pressure, filling range adjustable. Forced powder feeding.
Details Images
Packaging & Shipping
Company Profile


Product Tags: tablet pill press machine , tablet press machine , tablet press , Pharmaceutical tablet press machine , Pharmaceutical tablet press , Food tablet pill press machine , medicine tablet pill press machine
