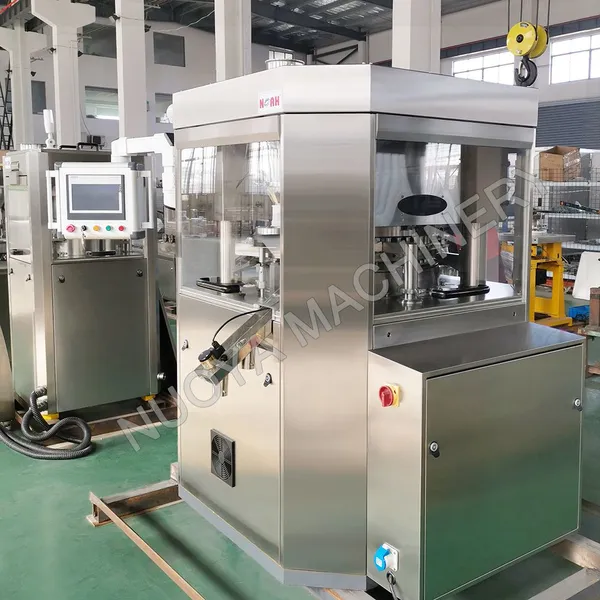

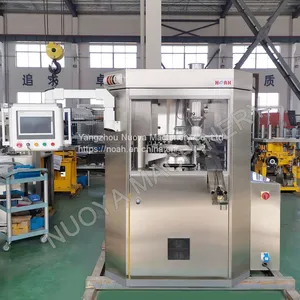

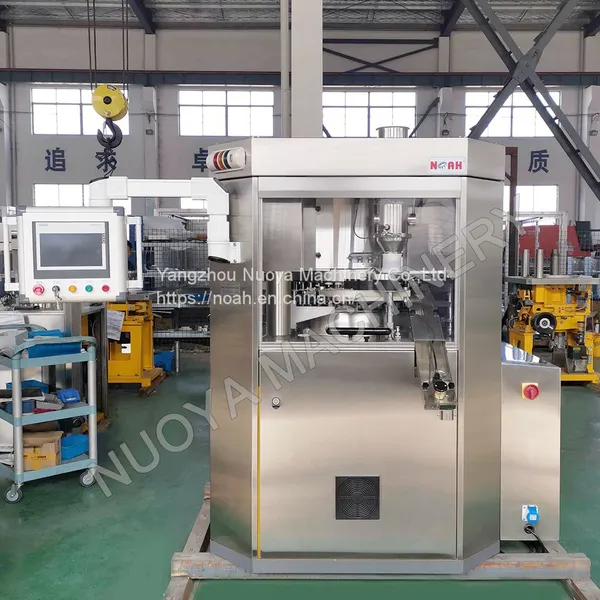

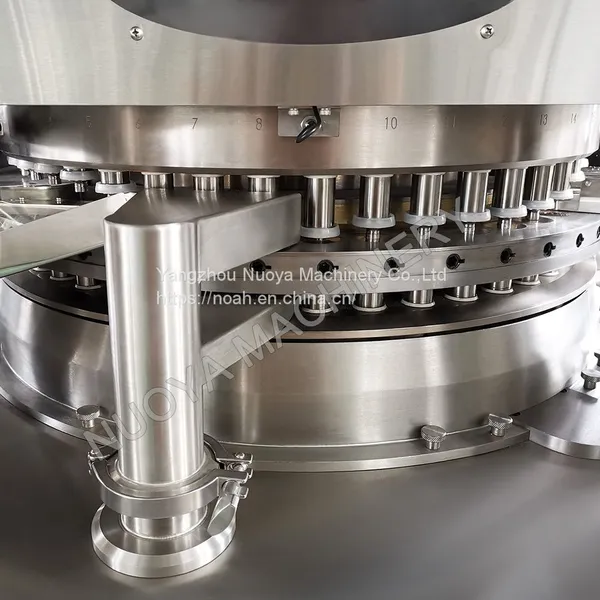

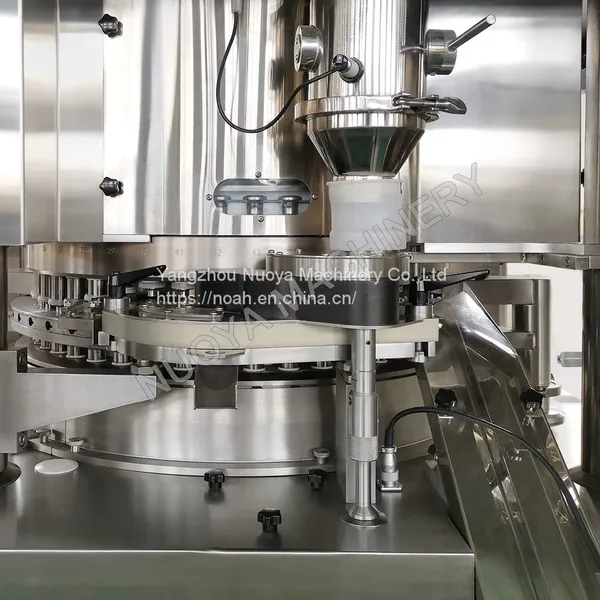

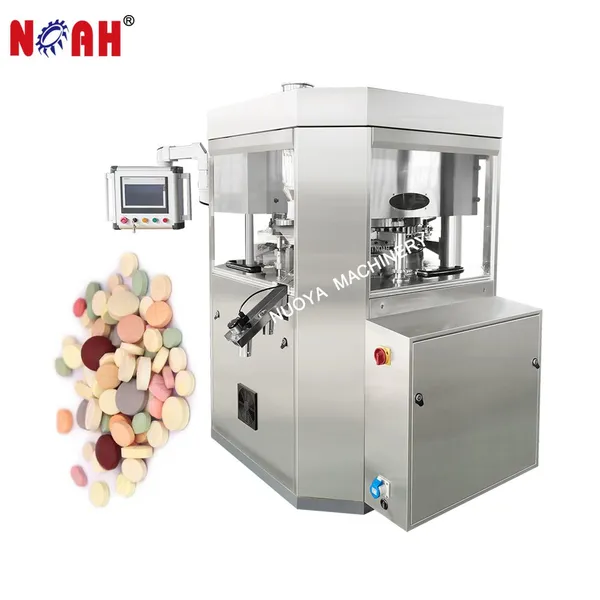

PG-45 Double Layer Rotary Tablet Press Machine

PG-45 Double Layer Rotary Tablet Press Machine photo-1
PG-45 Double Layer Rotary Tablet Press Machine photo-2
PG-45 Double Layer Rotary Tablet Press Machine photo-3
PG-45 Double Layer Rotary Tablet Press Machine photo-4
PG-45 Double Layer Rotary Tablet Press Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
PG-45 Double Layer Rotary Tablet Press Machine
Products Description
Model
PG-45
PG-55
PG-69
PG-75
Punch&die type(EU)
D
B
BB
BB
Number of press station
45
55
69
75
Max tablet diameter(mm)
25
16
13
13
Max abnormal prolate axis size(mm)
25
18
16
16
Max output(Tablet/h)
390000
470000
580000
630000
Max filling depth
20
18
18
18
Max main pressure(KN)
100
100
100
100
Max Pre Preesure(KN)
20
20
20
20
Idle load noise dB(A)
Power
380, 50hz 10.5-13kw
Size L*W*H(MM)
1260*1260*1950
Weight(kg)
3750
Double-layer tablet or ring tablet function(for your choice)
This series machine is with double-slide,large pressure high speed tablet press, has the advantages of high precision, high speed and high automation program, fully compliant with GMP requirements. it can press double-layer color film, ring-like tablet, round shape tablet, engraving tablet and irregular shape tablets, suitable for high-efficiency and precision tablet pressing in pharmaceutical, food, chemical and other industries. Feature 1. Anti-seepage oil and dustproof device; 2. Structure that is easy to disassemble to ensure the maintainability of the equipment; 3.Lengthen the ration cam, which increase the number of controlled punches & die, tablet weight more precise. 4.Multi-layer three quants forced feeding device ,material filling more uniformity. 5.Trash system: The system can carry out single piece automatic waste rejection and batch automatic waste rejection.
Details Images
Our Advantages
Product packaging
Company Profile


Product Tags: High-speed Tablet Press , Rotary Tablet Press Machine , Double Layer Tablet Press Machine , Pharmaceutical Tablet Press , Tablet Press , Tablet Press machine , Dechlorination Oxygen Tablets High-speed Tablet Press
