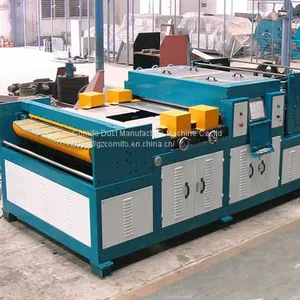

Duct Manufacture Auto Line III (B)

Model No.: CAL3B-1.2*1300

Coil Thickness: 0.4-1.2mm

Material: Galvanized Steel

Maximum Width: 1300mm

Speed: 0-18m/min

Power: 8.5kw/380v/50hz

Min.Order Quantity: 1 Set

Supply Ability: 10 Sets per Month

Port: GUANGZHOU PORT,SHENZHEN PORT

Payment Terms: T/T,L/C

Duct Manufacture Auto Line III (B) Products Information

Duct Manufacture Auto Line III(B) consists of duplex decoiler, straightening, beading, cross-tid hole punching, punching and notching, duplex drive cleat forming,hydraulic folding and shearing.

Customer can shear metal notching and punching according to his requirement automatically, and fold “l" "u” and all wrap ducts.

As the best sales line of Comifo Duct Manufacture Machine Co., Ltd , this cnc duct fabrication machine has earned Comifo, the ducting machine supplier, the reputation of providing the cost-effective accurate and reliable machine available.

Duct Manufacture Auto Line III (B) Configuration

1. Electric duplex decoiler: (capacity: 5ton per each) 2set

2. Straightening

pneumatic controlled straightener, no adjustment required when changing from 0.4mm to 1.2mm material

diameter of rollers：φ100

material of rollers：45＃thermal refined,chrome plated

3. Beading ：1set

no of beading roller： 2 rollers

diameter of rollers：φ100

material of rollers：45＃thermal refined,chrome plated

beading shapes

beading shapes

4. Cross-tid hole punching

punching corss-tid for strengthen

5. Notching and punching

Notching and punching

6. Duplex drive cleat forming
