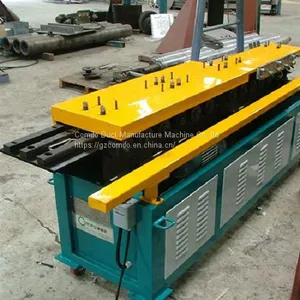

TDF Flange Forming Machine
Model No.: T-12-34,T-15-34
Thickness Range: 0.5-1.2(18-25ga),1.0-1.5(16-19ga)
Speed: 8m/min(26FPM)
Roller stations: 15
Min.Order Quantity: 1 Set
Supply Ability: 10 Sets per Month
Port: GUANGZHOU PORT,SHENZHEN PORT
Payment Terms: T/T,L/C
TDF Flange Forming Machine Products Information
TDF flange is well seal and low cost, suitable for small size duct connection. The flange machine makes one side TDF flange and the forms Clip. 16 forming stations produce an intefral flange while another 9 forming stations produce clip. With compact design, this machine can be taken to construction site easily.
TDF Flange Forming Machine Configuration
Model No. |
Thickness |
Speed |
Shape |
Roller stations |
T-12-34 |
0.5-1.2(18-25ga) |
8m/min(26FPM) |
15 |
|
T-15-34 |
1.0-1.5(16-19ga) |
8m/min(26FPM) |
15 |
TDF Flange Forming Machine Capabilities
l One side forms TDF flange and the other forms Clip
l 15 forming stations produce an integral flange while another 10 forming stations produce clip
l Flange uses approximately 42mm and clip uses approx.52mm material
l A small parts feeder is included for parts with a minimum width of 140mm
l No adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material
l Manufacturing speed of approximately 26FPM(8m/min)
l Compact design,can be taken to construction site easily
