Help CenterDuct Auto Line VIII
Related Products
Model No.: CAL8-1.2x1300,CAL8-1.2x1600
Max Coil Width: 1300mm,1600mm
Thickness Range: 0.4-1.2mm
Speed: 0-18m/min
Shearing Tolerance: ±0.5mm
Diagonal Tolerance: ±0.5mm
Min.Order Quantity: 1 Set
Supply Ability: 10 Sets per Month
Port: GUANGZHOU PORT,SHENZHEN PORT
Payment Terms: T/T,L/C
Duct Auto Line VIII Products Information

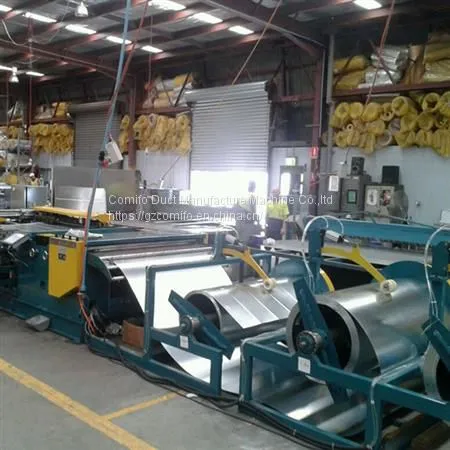

Duct manufacture auto line VIII consists of duplex decoiler, straightening, beading, cross-tid hole punching, punching and notching, duplex drive cleat forming, hydraulic folding, shearing, automotion pittsburgh lock forming, coil conveyer (pitional), duplex tdf flange forming, and hydraulic folding. Customer can shear metal notching and punching according to his requirement automatically, and fold “l”“u” and all wrap ducts, tdf flange duct. As the most multi-functional auto duct line of comifo, the sheet metal duct fabrication equipment has earned comifo the reputation of providing the cost-effective accurate and reliable machine available.
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
CAL8-1.2x1300 |
1300mm |
0.4-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
CAL8-1.2x1600 |
1600mm |
0.4-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
Duct Auto Line VIII Configuration
1.Modular design allows adding a section at a time
2.Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
3.Pneumatic controlled straightener and beader
4.Punch center holes for cross-tie duct bracing
5.Duplex drive cleat forming rollers are available
6.Patented Automation pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
7.Duplex TDF flange former, forms TDF flange by double sides
8.Optimizes floor space by inline position of machines, guarantees high efficiency
9.Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Duct Auto Line VIII Capabilities
Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automation pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding
Comifo Duct Manufacture Machine Co., Ltd is a professional HVAC duct production line manufacturer and duct machines manufacturers which involves in business manager, marketing sales and production. We supply different equipment for light industry, metallurgy and metalworking fields with high quality, latest design and high cost performance. Comifo machines are offered all over the world. Please feel free to contact us and ask for more information.
