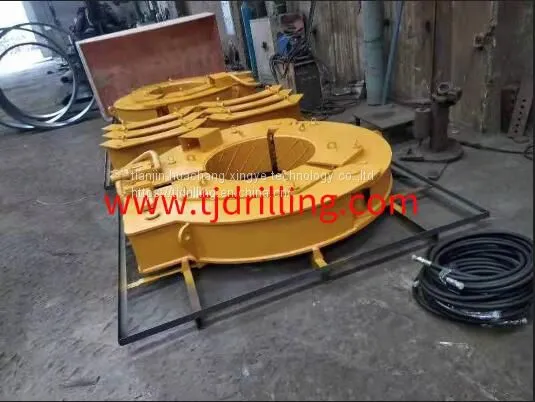

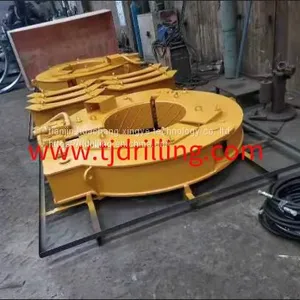

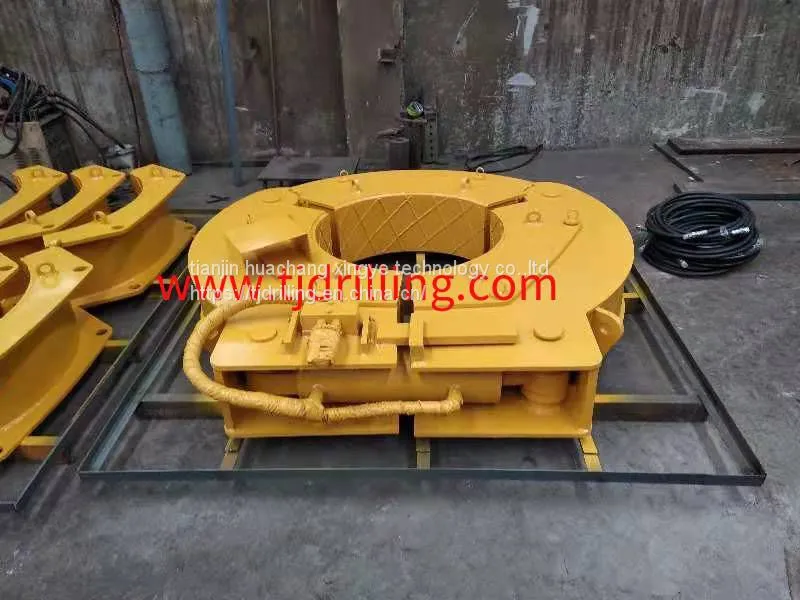

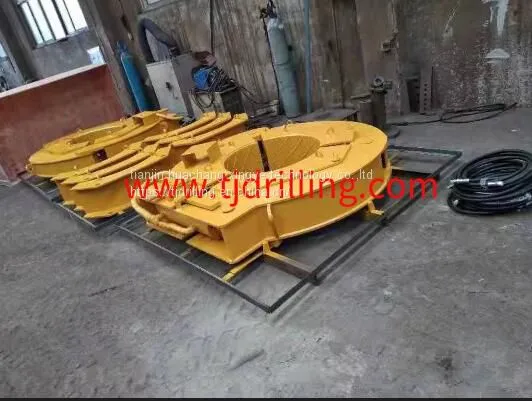

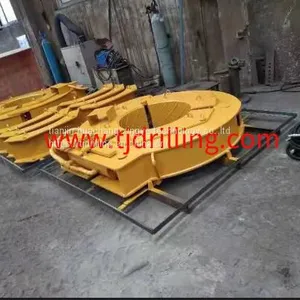

OD1200MM Hydraulic Casing Clamp with 1000mm and 880mm insert used for double wall casing clamp
Available diameter range 880 - 2,500 mm The hydraulic casing clamp can be operated through the hydraulic system of the drilling rig or a separate hydraulic power pack. Hydraulic casing clamps and various inserts are available for other diameters on request
1000 mm Mechanical Casing Clamp Used for Double Wall Casing Deep Foundation Piling Work
Hydraulic casing clamp used for double wall casing , single wall casing ,foundation pilling
1300 mm OD Hydraulic Casing Clamp-no power pack
1180 mm Mechanical Casing Clamp
1000 mm Mechanical Casing Clamp
HYDRAULIC RETAINING CLAMPD880MM
HYDRAULIC RETAINING CLAMPD1180MM .
HYDRAULIC RETAINING CLAMP D1350MM
HYDRAULIC RETAINING CLAMPD1200MM
HYDRAULIC RETAINING CLAMP1000MM
hydraulic retaining clamp guarantees a safe grip of the casing column, while retracting the casings with the drilling rig.
hydraulic retaining clamps guarantee a safe hold of the drill pipes during pipe retraction.
Hydraulic casing clampD880MM
Hydraulic casing clampD1000MM
Hydraulic casing clampD1180MM
Hydraulic casing clampD1200MM
Hydraulic casing clamp1500MM
Hydraulic casing clamp1350MM
mechanical casing clamp 1500mm
mechanical casing clamp 1200mm
mechanical casing clamp 1000mm
mechanical casing clamp 880mm
used for double wall casing , single wall casing ,foundation pilling
type
NAME
UNIT
parameter
remark
CLAMP CYLINDER QUANTITY
PC
1
MAX CLAMP FORCE
T
50
MAX CASING DIAMETER
mm
1200
WEIGHT
kg
880
OVERSIZE(L×W×H)
m
1.8x1.8x0.4
Transport size
MOTOR
three phase asynchronous motor
POWER
Kw
5.5
SPEED
rpm
1500
OIL
L/min
37
WORKING PRESSURE
MPa
25
OIL TANK CAPACITY
L
100
OVERSIZE
mm
1850*1350*1150
WEIGHT(NOT INCLUDE OIL）
Kg
600
tian jin huachang xingye technology co ltd
email info@tjdrilling.com whatsapp 008618902059907
