Φ2000mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work

Φ2000mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ2000mm hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
Φ2000mm hydraulic casing extractor with 1500mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic casing extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic casing puller with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic tube extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ1500mm hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
Φ1200mm hydraulic casing extractor with 1000mm reduction insert used for secant pile foundation work
Φ1000mm hydraulic casing extractor with 880mm reduction insert used for secant pile foundation work
Φ610mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ24inch hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
Φ16inch hydraulic casing extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic double wall casing extractor with 1200mm reduction insert used for secant pile foundation work
1500mm double wall casing extractor , 1200mm double wall casing extractor 1000mm double casing extractor 880mm double wall casing extractor
1500mm single wall casing extractor , 1200mm single wall casing extractor 1000mm single casing extractor 880mm single wall casing extractor
We can produce 400-3000mm casing extractor , can add different size reduction insert suit to different casing pipe , our hydraulic casing extractor can use different hydraulic power pack
Diesel engine power and electricity motor power pack.

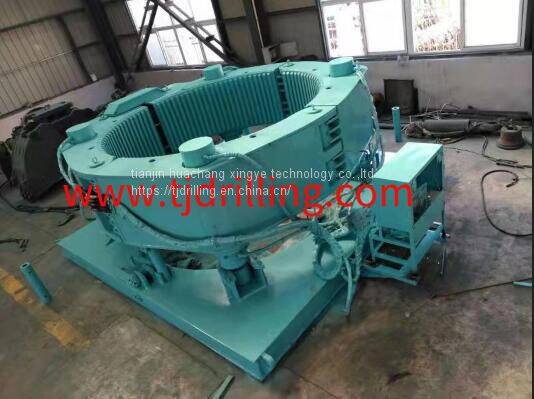

They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
1 specification of hydraulic casing extractor
NAME
UNIT
parameter
REMARK
LIFT SYLINDER250/160/1000
PC
4

MAX STOKE OF CYLINDER
mm
1000

NUMBER OF CLAMP CYLINDER 360/180/300
PC
1

MAX CLAMP FORCE
t
220

MAX CASING SIZE
mm
2000

MAX LIFT FORCE
t
600

WEIGHT
kg
14000

OVER SIZE (L×W×H)
m
4.6×3×2.4

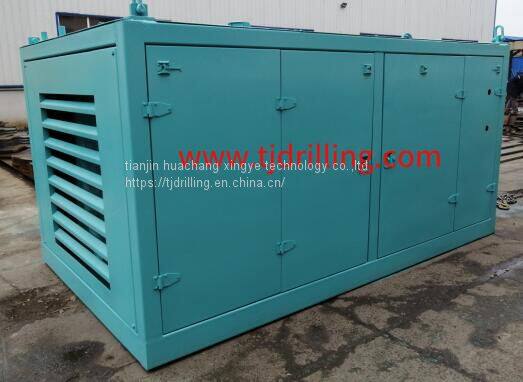

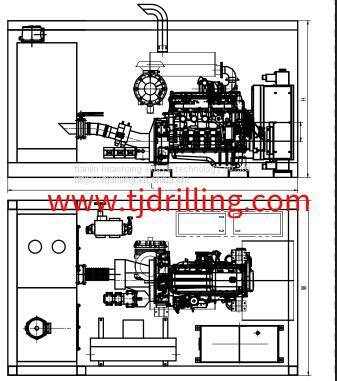

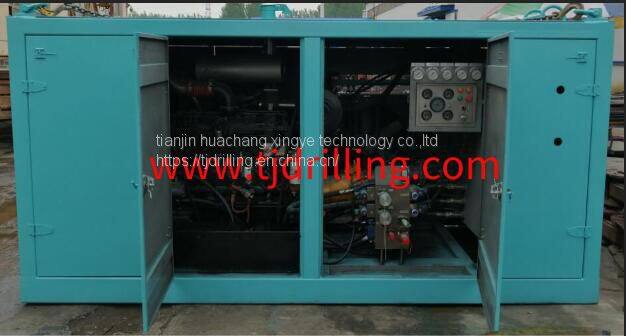

2 specification of hydraulic power pack
Model
DL80
REMARK
Engine model：
QSB3.9-C100-31
European III emission standard
Engine power kW
60

Discharge  l/min
120

Working pressure ：MPa
25

oiltank L
500

Over size(L×W×)Hmm)
2500×1500×1500

WEIGHT (kg)
2000


Tianjin huachang xingye technology co ltd email info@tjdrilling.com  whatsapp 008618902059907
