Φ1200mm hydraulic casing extractor with electricity motor power pack for secant pile foundation work
Φ1200mm hydraulic casing extractor with 1000mm and 880mm reduction insert for secant pile foundation work
we can produce 400mmcasing extractor ,600mm casing extractor 800mm casing extractor , 1000mm casing extractor
1500mm casing extractor , 2000mm casing extractor 3000mm casing extractor
Φ1200mm hydraulic casing puller with 1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic tube extractor with 1000mm and 880mm reduction insert for secant pile foundation work
Φ1000mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ880mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ1500mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ2000mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic casing extractor with diesel engine power pack1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic casing extractor with electricity motor power pack1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic diaphragm wall stop end extractor
Diaphragm wall round stop end pipe extractor 800mm ,1000mm
Diaphragm wall round joint tube extractor 800mm ,1000mm
2,TECHNICAL SPECIFICATION
NAME
UNIT
PARAMETER
REMARK
LIFT CYLINDER QUANTITY
PC
4
CYLINDER MAX STROKE
mm
1000
HOLD CYLINDER QUANTITY
PC
1
MAX HOLDER FORCE
t
150
MAX CASING DIAMETER
mm
1200
RATED LIFT FORCE
t
400
BELOW 30MPa
WEIGHT
kg
6100
OUT SIZE(L×W×H)
m
3x2.2x2M
TRANSPORT SIZE

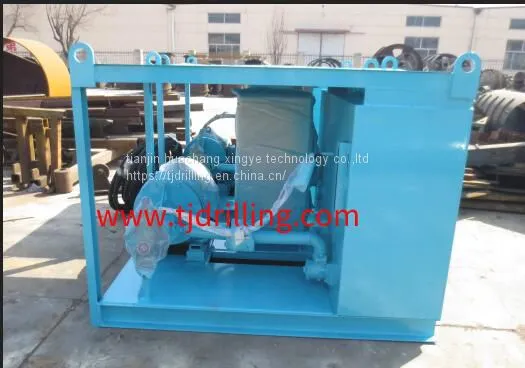

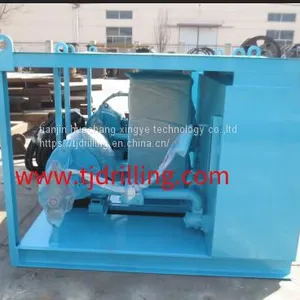

HYDRAULIC POWER STATION
MOTOR POWER STATION
MOTOR
TRIPLE-PHASE ASYNCHRONOUS MOTOR
POWER
Kw
45
SPEED
rpm
1500
FUEL SUPPLY
L/min
100
OPERATION PRESSURE
Bar
300
OIL TANK CAPACITY
L
850
OUT SIZE
mm
1850*1350*1150
WEIGHT(NOT INCLUDE OIIL)
Kg
1200
tianjin huachang xingye technology co ltd email info@tjdrilling.com
