Help CenterΦ1200mm Hydraulic Casing Extractor With Diesel Engine Power Pack for Secant Pile Foundation Work
Related Products
-
Φ3000mm Hydraulic Casing Extractor With Electricity Motor Power Pack Used for Secant Pile Foundation WorkUS$ 30000 - 60000MOQ: 1 Piece -
Φ3000mm Hydraulic Casing Extractor With Diesel Engine Power Pack Used for Secant Pile Foundation WorkUS$ 30000 - 60000MOQ: 1 Piece
-
Φ2000mm Hydraulic Casing Extractor With Diesel Engine Power Pack Used for Secant Pile Foundation WorkUS$ 40000 - 60000MOQ: 1 Piece
-
Φ2000mm Hydraulic Casing Extractor With Electricity Motor Power Pack Used for Secant Pile Foundation WorkUS$ 30000 - 60000MOQ: 1 Piece
-
Φ1500mm Hydraulic Casing Extractor With Diesel Engine Power Pack Used for Secant Pile Foundation WorkUS$ 30000 - 50000MOQ: 1 Piece
Φ1200mm hydraulic casing extractor with diesel engine power pack for secant pile foundation work
Φ1200mm hydraulic casing extractor with electricity motor power pack for secant pile foundation work
Φ1200mm hydraulic casing extractor with 1000mm and 880mm reduction insert for secant pile foundation work
we can produce 400mmcasing extractor ,600mm casing extractor 800mm casing extractor , 1000mm casing extractor
1500mm casing extractor , 2000mm casing extractor 3000mm casing extractor
Φ1200mm hydraulic casing puller with 1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic tube extractor with 1000mm and 880mm reduction insert for secant pile foundation work
Φ1000mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ880mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ1500mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ2000mm hydraulic casing extractor with 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic casing extractor with diesel engine power pack1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic casing extractor with electricity motor power pack1000mm and 880mm reduction insert for secant pile foundation work
Φ1200mm hydraulic diaphragm wall stop end extractor
Diaphragm wall round stop end pipe extractor 800mm ,1000mm
Diaphragm wall round joint tube extractor 800mm ,1000mm
2,TECHNICAL SPECIFICATION
NAME | UNIT | PARAMETER | REMARK | |||
LIFT CYLINDER QUANTITY | PC | 4 | ||||
CYLINDER MAX STROKE | mm | 1000 | ||||
HOLD CYLINDER QUANTITY | PC | 1 | ||||
MAX HOLDER FORCE | t | 150 | ||||
MAX CASING DIAMETER | mm | 1200 | ||||
RATED LIFT FORCE | t | 400 | BELOW 30MPa | |||
WEIGHT | kg | 6100 | ||||
OUT SIZE(L×W×H) | m | 3x2.2x2M | TRANSPORT SIZE | |||
MODEL | specification | note | ||||

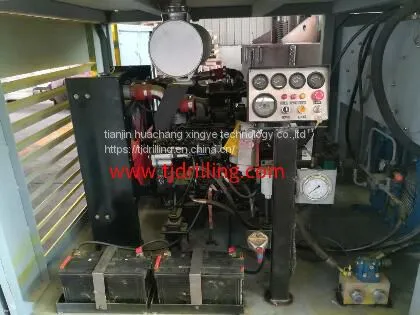

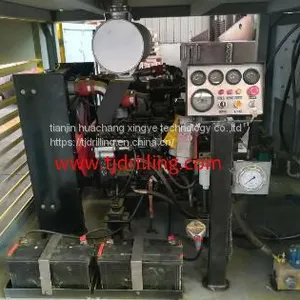

POWER | 4BTAA3.9-C100 | Cummins | ||||
Engine power kW | 75 | |||||
big pump discharge l/min | 150 | |||||
Small pump discharge L/min | 45 | |||||
Working pressure：MPa | 25 | |||||
Hydraulic oil capacity L | 900 | |||||
Hydraulic oil number | YB-N46 | |||||
oversize(l×W×H)(mm) | 3000×2000×1700 | |||||
WEIGHT (kg) | 2000 | |||||
Tianjin huachang xingye technology co ltd email info@tjdrilling.com
Whatsapp 008618902059907
