AC2010-02 FR.L two points Air Source Treatment units Pneumatic Filter Regulator Lubricator with Compressor Gauge

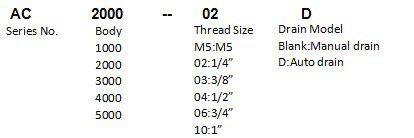

Order code

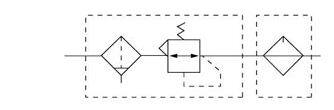

Symbol for air source treatment unit
Technical parameter
Model | AC1000-M5 AC1000-M5D
| AC2000-02 AC2000-02D
| AC3000-02 AC3000-02D AC3000-03 AC3000-03D
| AC4000-03 AC4000-03D AC4000-04 AC4000-04D AC4000-06 AC4000-06D | AC5000-06 AC5000-06D AC5000-10 AC5000-10D
| |||||
Combinations | Filter | AW1000 | AW2000 | AW3000 | AW4000 | AW5000 | ||||
Regulator | AR1000 | AR2000 | AR3000 | AR4000 | AR5000 | |||||
Lubricator | AL1000 | AL2000 | AL3000 | AL4000 | AL5000 | |||||
Proof Pressure | 1.5Mpa(15.3kgf/cm2) | |||||||||
Max.Operating Pressure | 1.0Mpa(10.2kgf/cm2) | |||||||||
Temperature | 5℃~60℃ | |||||||||
Filtration | 40μm | |||||||||
Suggested Lubricating Oil | Turbine No.1 Oil(ISOVG32) | |||||||||
Bowl material | PC | |||||||||
Bowl guard | Without guard | Without guard | With guard | With guard | With guard | |||||

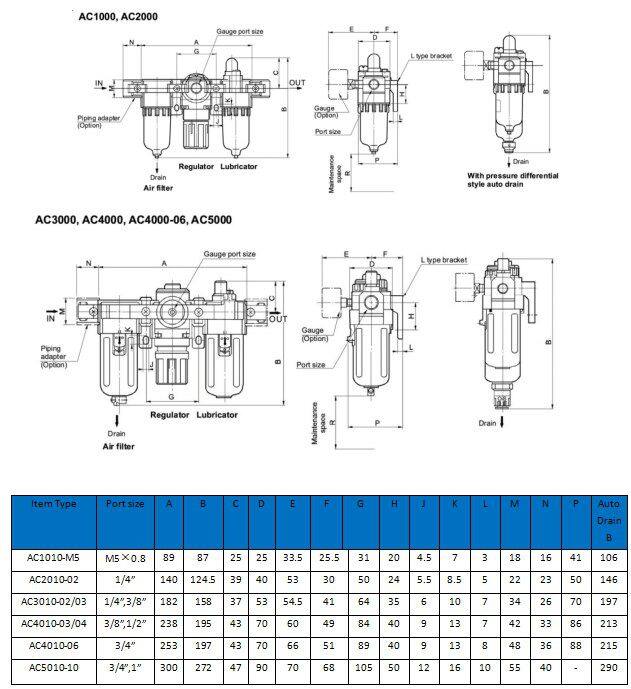

Dimension
Feature
.Air Filter Regulator Lubricator 3 units F.R.L Combination Pneumatic Air source treatment including 3 parts :air preparation unit, air line equipment and FR.L combination
.AC2000-02 series air unit is the one with smaller body size and without protecting guard,AC3000-02/03, AC4000-03/04/06,AC5000-06/10 series air unit are the ones with larger body size and with protecting guard.
About us
Yister pneumatic specialized in air combination preparation units incluing Pneumatic air filter, air source treatment units,air regulator ,air filter regulator, oil lubricator,FRL three units regulator filter,etc.
Packing&shipping
Feature
.AC2000 BC2000 BC3000 BC4000 series pressure regulator FRL units three combination air pressure regulator air filter oil lubricator supports accurate adjustment of oil mist,rotate the knob to easily adjust the amount of oil mist
.air source body is marked with direction marks,which is convenient for installation
.High precision filter element,efficiently filter impurities such as water/oil/dust in the air
