Airtac type AFC2000 BFC2000/BFC3000/BFC4000 air preparation treament unit air pressure filter regulator

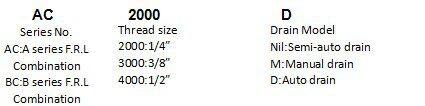

Order code
Symbol for air regulator filter
Technical parameter
Model |
AC2000 |
BC2000 |
BC3000 |
BC4000 |
|||||
Combinations |
Filter |
AF2000 |
BF2000 |
BF3000 |
BF4000 |
||||
Regulator |
AR2000 |
BR2000 |
BR3000 |
BR4000 |
|||||
Lubricator |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
|||||
Port size |
1/4” |
1/4” |
3/8” |
1/2” |
|||||
Proof Pressure |
1.5Mpa(15.3kgf/cm2) |
||||||||
Max.Operating Pressure |
0.95Mpa(10.2kgf/cm2) |
||||||||
Temperature |
5℃~60℃ |
||||||||
Filtration |
40μm |
||||||||
Suggested Lubricating Oil |
Turbine No.1 Oil(ISOVG32) |
||||||||
Filter bowl capacity |
15CC |
60CC |
60CC |
60CC |
|||||
Lubricator bowl capacity |
25CC |
90CC |
90CC |
90CC |
|||||
Body material |
Aluminum alloy |
||||||||
Bowl material |
PC |
||||||||
Bowl guard |
Without guard |
With guard |
With guard |
With guard |
With guard |
||||

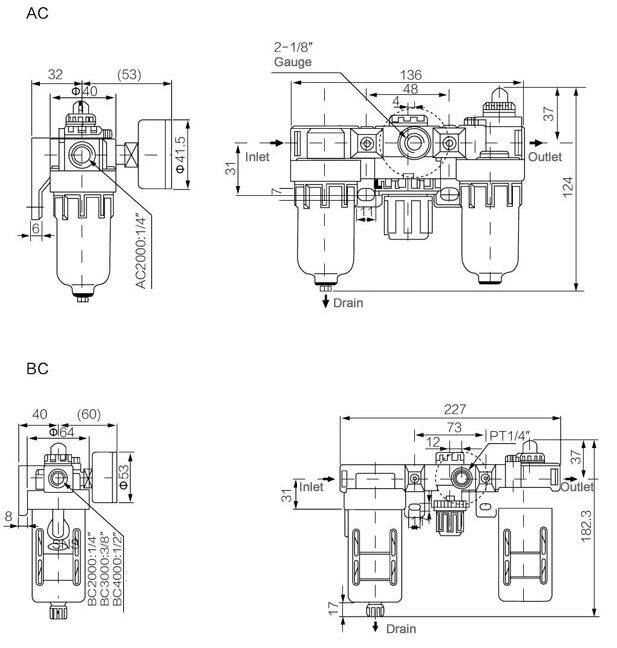

Dimension
About us
Yister pneumatic specialized in air combination preparation units incluing Pneumatic air filter, air source treatment units,air regulator ,air filter regulator, oil lubricator,FRL two units regulator filter,etc.
Packing&shipping
Feature
.AC2000 BC2000 BC3000 BC4000 series pressure regulator FRL units three combination air pressure regulator air filter oil lubricator supports accurate adjustment of oil mist,rotate the knob to easily adjust the amount of oil mist
.air source body is marked with direction marks,which is convenient for installation
.High precision filter element,efficiently filter impurities such as water/oil/dust in the air
