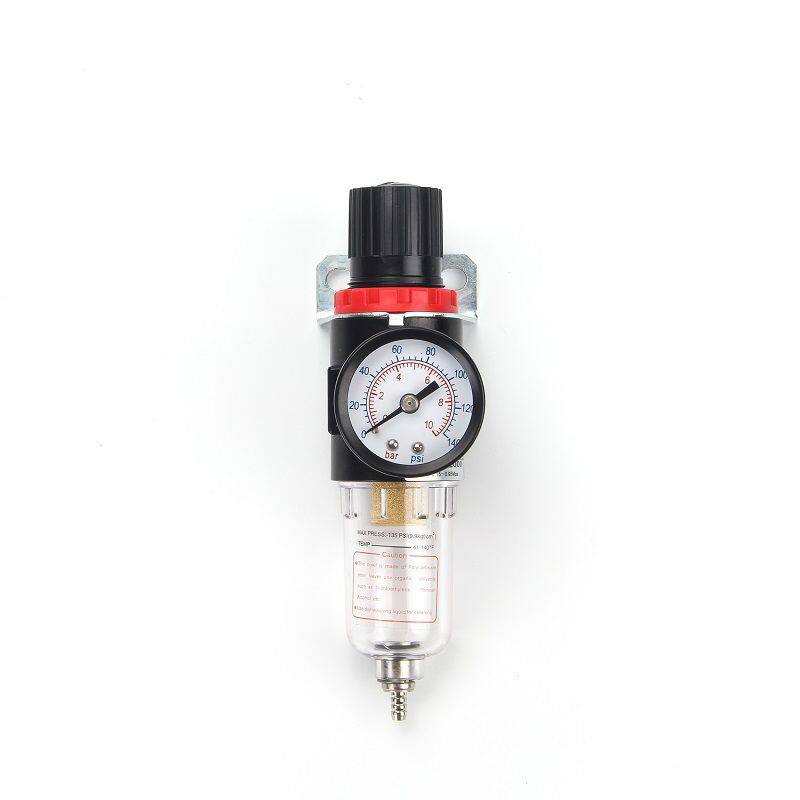

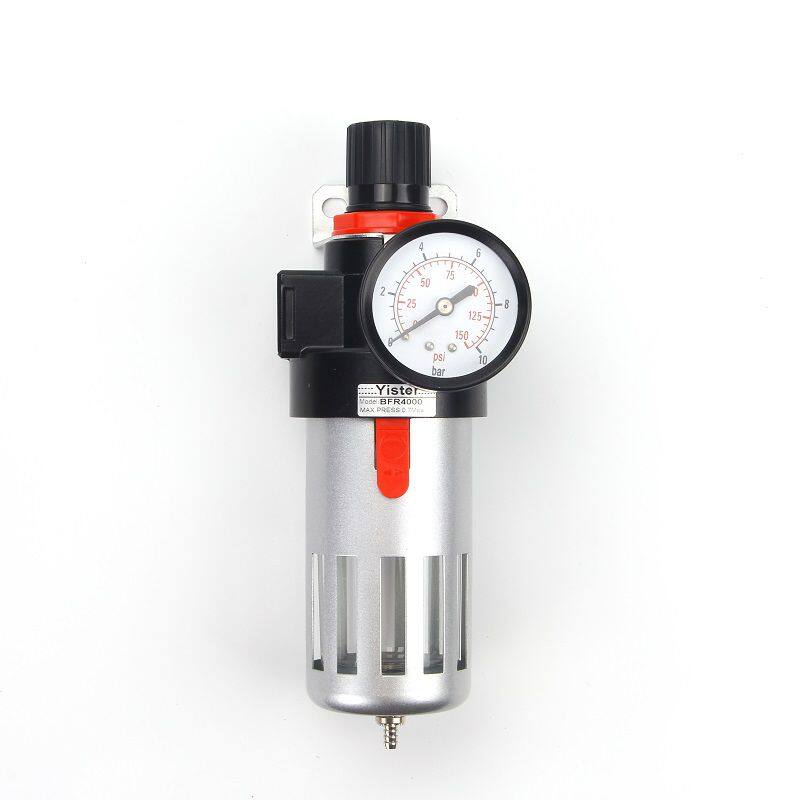

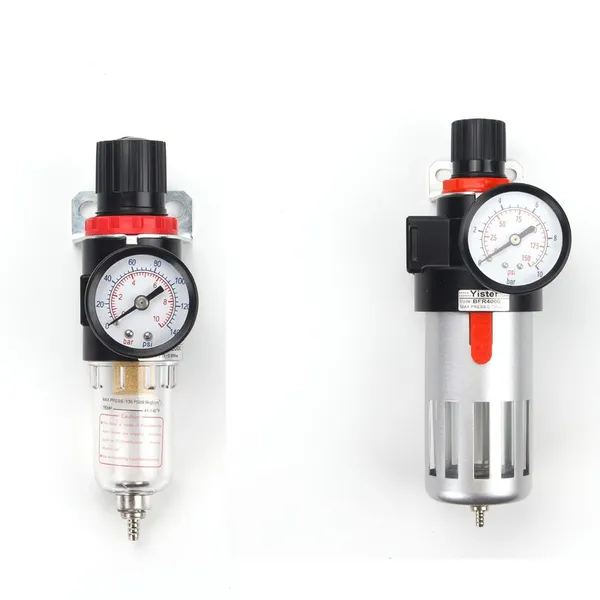

AFR2000/BFR2000/BFR3000/BFR4000 Pneumatic Air Compressor Filter Pressure Regulators Valve with Gauge
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2 days
- Airtac type AR2000/BR2000/BR3000/BR4000 Pneumatic Air Source Treatment Pressure Regulator
- AL2000/BL2000/BL3000/BL4000 Pneumatic Air Source Processor oil mist oil-water separator filter lubricator
- SMC type Air Preparation FRL combination units Air Filters Pressure Regulators Lubricators
- AC2010-02 FR.L two points Air Source Treatment units Pneumatic Filter Regulator Lubricator with Compressor Gauge
- SMC type Pneumatic air preparation unit AF2000-02 1/4 Particulate Compressed Air Filter
- AR2000-02 pneumatic air compressor pressure regulator valve with a 1/4 Inch Port
Product Details
Brand Name: | Yister | Place of Origin: | China | Model Number: | AFR2000 BFR2000 BFR3000 BFR4000 |
Certification: | CE certificate for AFR2000/BFR2000/BFR3000/BFR4000 Pneumatic Air Compressor Filter Pressure Regulators Valve with Gauge | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Condition: | New | Efficiency: | air pressure regulator | Medium Material: | Other, Air Oil water |
Filtration Grade: | Medium Filter | Construction: | Other, oil-water seperator |
Product Description
AFR2000/BFR2000/BFR3000/BFR4000 Pneumatic Air Compressor Filter Pressure Regulators Valve with Gauge
Order code
Symbol for Pneumatic air filter
Technical parameter
Model | AFR2000 | BFR2000 | BFR3000 | BFR4000 | ||||
Port size | 1/4” | 1/4” | 3/8” | 1/2” | ||||
Range pressure | 0.05~0.85Mpa | |||||||
Proof Pressure | 1.5Mpa(15.3kgf/cm2) | |||||||
Max.Operating Pressure | 0.95Mpa(10.2kgf/cm2) | |||||||
Temperature | 5℃~60℃ | |||||||
Filtration | 40μm | |||||||
Filter bowl capacity | 15CC | 60CC | 60CC | 60CC | ||||
Body material | Aluminum alloy | |||||||
Bowl material | PC | |||||||
Bowl guard | Without guard | With guard | With guard | With guard | With guard |

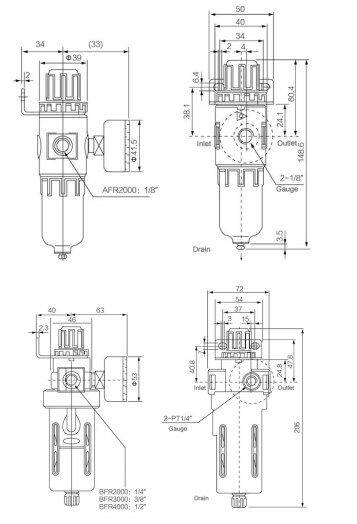

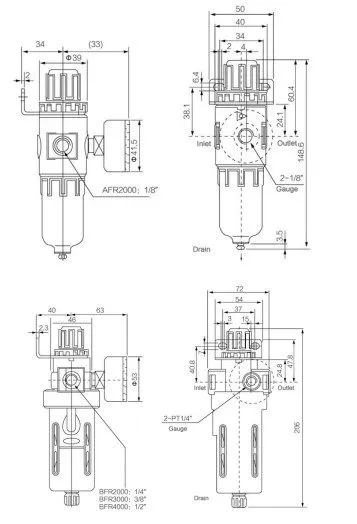

Dimension
About us
Yister pneumatic specialized in air combination preparation units incluing pneumatic filter regulator ,pneumatic filter element ,pneumatic filter auto drain ,pneumatic filter water separator ,inline pneumatic filter ,central pneumatic filter regulator ,solenoid valve pneumatic filter noise silencer ,Airtac pneumatic filter regulator lubricator ,pneumatic air filter ,etc.
Packing&shipping
Feature
.Airtac type 1/4 inch AFR2000 BFR2000 BFR3000 BFR4000 series Air source treatment Pneumatic Regulator Filter and Pressure Gauge meets temperature Range: 5-60 Degree
. Max.Adjusting pressure of 0.95Mpa
. Body Material: Aluminum Die-casting Forming
. Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
.The Filter Removes Solid Particles And Condensates With Compressed Air
Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
.Protect Your Air Tools With Much Longer Life
