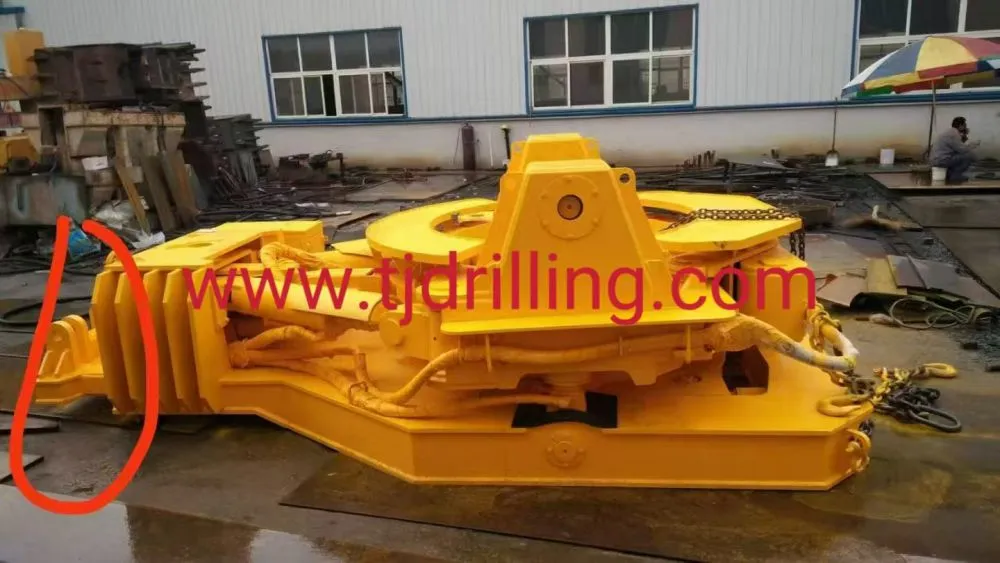

1500mm casing oscillator connected on bauer-bg28 drill rig for cased bored pile work
1500mm casing oscillator hydraulic type used on liebherr-lb28 drill rig for pull out double wall casing
1500mm casing oscillator foundation drill rig type used for secant pile foundation work
1500mm hydraulic casing oscillator Short version drill rig type used on soilmec sr65 drill rig for pile foundation work
1,specification of 1500mm hydraulic casing oscillator
| MODEL: | BCG1500D | REMARK |
| CASING DIAMETER (mm) | 600~1500 | |
| MAX LIFT FORCE (kN) | 2000 | |
| OSCLLATE ANGEL (°) | 18° | |
| TORQUE (KN·m) | 1950 | |
| STOKE(mm) | 450 | |
| CLAMP FORCE(kN) | 1500 | |
| OVER SIZE(L×W×H)(mm) | 4800×3000×1650 | |
| WEIGHT (kg) | 16500 |
2,specification of casing oscillator power pack
| MODEL: | DL180 | REMARK |
| DIESEL ENGINE MODEL: | 6CT8.3-C240 | TIER3 EMISSION EUROPE3 STANDARD |
| ENGINE POWER kW | 180 | |
| DISCHARGE CAPACITY l/min | 2x170 | |
| WORKING PRESSURE:MPa | 27 | |
| OIL TANK SIZE L | 1200 | |
| OVER SIZE (L×W×H)(mm) | 3500×2000×1850 | |
| WEIGHT (kg) | 3500 |
Casing Oscillator is a high-performance machine designed for efficient soil mixing and foundation construction. It features a maximum torque of 300 kN·m and an oscillation frequency range of 0 to 60 rpm, allowing for precise and adaptable operations. The casing oscillator's robust design and powerful performance make it suitable for various foundation projects, including deep mixing and soil stabilization
Tianjin huachang xingye technology co ltd casing Oscillator is an advanced and highly reliable oscillatory drilling rig designed for the most demanding foundation engineering and soil improvement projects. With its cutting-edge technology, the combines power, precision, and efficiency to offer exceptional performance in heavy-duty applications. is engineered to optimize productivity and reduce operational costs, making it an essential tool for a wide range of large-scale construction and infrastructure projects.
Featuring an advanced hydraulic system and an intuitive control interface, the casing Oscillator is capable of handling a wide range of soil conditions, from soft ground to more challenging, hard soils. Its enhanced stability, high torque output, and robust design ensure smooth operation, even in the toughest environments. This versatile equipment is ideal for use in urban, industrial, and large civil engineering projects.
Key Features:
High Torque Output: tianjin huachang xingye technology co ltd offers exceptional torque performance for efficient deep foundation drilling and soil improvement.
Advanced Hydraulic System: Features an advanced hydraulic system for smooth, reliable, and precise operation in various ground conditions.
Compact and Robust Design: The rig's compact design allows for optimal maneuverability in confined spaces while maintaining stability during operation.
Enhanced Safety Features: Equipped with overload protection and advanced monitoring systems to ensure maximum safety for operators.
Precise Control: casing oscillator provides easy-to-use, precision controls for efficient operation and high productivity in challenging environments.
Durability: Built with high-quality materials and engineering standards to ensure long-lasting performance under extreme working conditions.
Versatile Application: Capable of handling different types of soil and foundation depths, offering versatility across multiple construction sectors.
Technology Integration: The rig is equipped with intelligent monitoring systems that collect real-time performance data to optimize operations and prevent issues.
Applications:
Large-Scale Foundation Construction: Ideal for constructing deep foundation piles, including those for high-rise buildings, bridges, and tunnels.
Soil Improvement and Stabilization: Original for soil treatment and stabilization to ensure strong and reliable foundations in soft or unstable ground.
Urban Development Projects: Perfect for foundation work in congested urban areas, where space and efficiency are critical.
Bridge and Infrastructure Projects: Essential for creating secure and stable foundations for major infrastructure, including bridges, highways, and railways.
Geotechnical Investigations: Original for conducting deep soil and geotechnical investigations, offering precise data for planning and design.
The tianjin huachang xingye technology co ltd casing Oscillator is the ultimate solution for contractors and engineers in need of a powerful, efficient, and versatile tool for complex foundation engineering and soil improvement tasks. Built to deliver outstanding performance and reliability, it ensures a seamless operation in even the most challenging working environments.
1. What is the tianjin huachang xingye technology co ltd Oscillator original for?
Tianjin huachang xingye technology co ltd casing Oscillator is a heavy-duty piece of equipment designed for efficient pile driving and soil stabilization in deep foundation construction projects. Perfect for large infrastructure projects such as bridges, marine structures, and high-rise buildings. Original to improve soil compaction and provide enhanced foundation support.
2. What are the key features of the tianjin huachang xingye technology co ltd Oscillator?
High-frequency oscillation for fast and precise pile driving.
Robust design suited for both land and marine construction.
Powered by an advanced hydraulic system for consistent power delivery.
Designed to operate in the most challenging soil and environmental conditions.
3. What is the maximum operating depth of the tianjin huachang xingye technology co ltd casing Oscillator?
The tianjin huachang xingye technology co ltd casin Oscillator is capable of reaching a maximum depth of 75 meters, making it ideal for deep foundation work in a variety of soil conditions.
4. What is the maximum pile diameter the casing oscillator can handle?
The tianjin huachang xingye technology co ltd BCG 1500 can drive piles with a maximum diameter of up to 1500 mm making it perfect for large-scale construction projects that require large-diameter piles.
What type of engine powers the TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD CASING Oscillator?
The TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD BCG CASING Oscillator is powered by a high-performance diesel engine, HAVE EURO TIER3 EMISSIONS DIESEL ENGINE POWER PACK , EURO TIER5 DIESEL ENGINE POWER PACK providing the necessary energy to efficiently drive piles and stabilize soil in demanding construction environments.
Mexico 1500mm hydraulic casing oscillator ,canada/Vancouver /Calgary toronto /Ottawa 1500mm hydraulic casing oscillator colombia Medellín,Cartagena,Barranquilla,Tunja1500mm hydraulic casing oscillator,Vietnam/Hà Phòng/Thành
Chí Minh 1500mm hydraulic casing oscillator ,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbane 1500mm hydraulic casing oscillator,thailand 1500mm hydraulic casing oscillator ,Malaysia /Singapore Indonesia/Jakarta/Pilipines Россия/russia 1500mm hydraulic casing oscillator,belize/Puerto Rico/Guatemala/San salvador/Honduras 1500mm hydraulic casing oscillator ,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana 1500mm hydraulic casing oscillator,usa ,america los Angeles/new york/California1500mm hydraulic casing oscillator ,South Africa Kazakhstan 1500mm hydraulic casing oscillator , spain Português germany italy ,greece romania serbia,france 1500mm hydraulic casing oscillator south africa 1500mm hydraulic casing oscillator,south korea 1500mm hydraulic casing oscillator, japan 1500mm hydraulic casing oscillator, taiwan , hong kong 1500mm hydraulic casing oscillator uae 1500mm hydraulic casing oscillator ,israel 1500mm hydraulic casing oscillator Tianjin huachang xingye technology co ltd

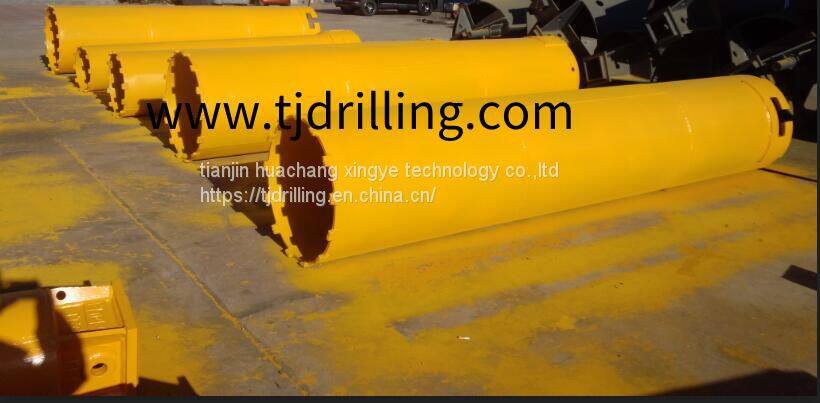

The casings with screw joints are single or double wall. The double wall casings are designed especially for high torque drilling machines and casings oscillators
Single wall casing pipe mainly used for light work in pile foundation work
Male-Female casing joint
D800MM single wall CASING WITH SCREW TYPE CONNECTION
D800MM single wall CASING WITH KEY TYPE CONNECTION
D1000MM single wall CASING WITH SCREW TYPE CONNECTION
D1000MM single wall CASING WITH KEY TYPE CONNECTION
D1200MM single wall CASING WITH SCREW TYPE CONNECTION
D1200MM single wall CASING WITH KEY TYPE CONNECTION
D1500MM single wall CASING WITH SCREW TYPE CONNECTION
D1500MM single wall CASING WITH KEY TYPE CONNECTION
D800mm Single wall casing with Labyrinth joints for pile foundation work
D1000mm Single wall casing with Labyrinth joints for pile foundation work
D1200mm Single wall casing with Labyrinth joints for pile foundation work
D1500mm Single wall casing with Labyrinth joints for pile foundation work
D800mm Single wall casing with key connection for pile foundation work
D1000mm Single wall casing with key connection for pile foundation work
D1200mm Single wall casing with key connection for pile foundation work
D1500mm Single wall casing with key connection for pile foundation work
D600mm Single wall casing with key joint for pile foundation work
D800mm Single wall casing with key joint for pile foundation work
D1000mm Single wall casing with key joint for pile foundation work
D1200mm Single wall casing with key joint for pile foundation work
D1500mm Single wall casing with key joint for pile foundation work
D600mm Single wall casing with key joint for pile foundation work
Single Walled casings (S.W.)
We are able to produce casings till 3000mm diameter
Double walled casings (D.W.
Casings drive adapter with flange (Long)
Casings drive adapter with flange (short)
Casings drive adapter with Kelly Box (short)
casing sizes, from diameter 600 mm up to 3000 mm. Joint thickness range is from 40 mm to 60 mm according to requested diameter. Double wall casings are especially designed to be used with casing oscillator and rotary systems. Casing joint coupling operations is by means of conical thread screws and centering keys
recommend DOUBLE WALL casing
Labyrinth joints are designed for quick coupling of double and single wall casings
Single wall casing labyrinth casing joints are available for columns having an outer diameters from 600mm a to 3000mm and on request.
Casing TWISTER / CASING ADAPTER
CASING SHOE FOR SOFT SOILS
CASING SHOE FOR ROCK WITH WELD-ON BARS
CASING SHOE FOR ROCK WITH REPLACEABLE BARS for secant pile
Casing drive adapter (Twister) that transfers the torque from the rotary drive to the casing
Casing Shoe for soft soil or hard soil conditions or secant piles using different types of teeth
Double walled which are used widely used either for their resistance and ability to ensure a flush drill string.
– Single walled which can be used when weight reduction is required or for light works.
These both versions could be equipped with Screw type connection or Key connection.
CASING WITH SCREW TYPE CONNECTION
CASING WITH KEY TYPE CONNECTION
