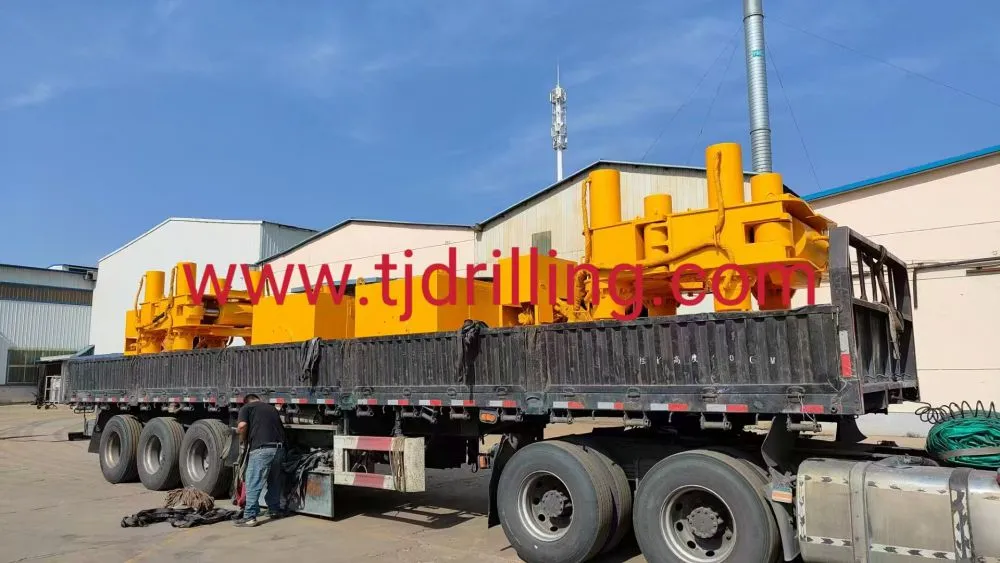

1000mm hydraulic casing extractor with diesel engine power pack used for pull out double wall casing in secant pile work
1000mm casing extractor hydraulic type with diesel engine power pack for pull out double wall casing during cased bored pile foundation work
1000mm diesel engine power pack hydraulic casing extractor used for extract casing pile in secant pile construction
1000mm secant pile casing remove extractor with diesel engine power pack used for secant pile foundation work
Tianjin huachang xingye technology co ltd can produce 400-3000mm casing extractor , can add different size reduction insert suit to different casing pipe , our hydraulic casing extractor can use different hydraulic power pack Diesel engine power and electricity motor power pack. They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
B1000 extractor
| name | unit | parameter | remark |
| Lift cylinder quantity | pc | 4 | |
| Max stroke of cylinder | mm | 800 | |
| Clamp cylinder quantity | pc | 1 | |
| Max clamp force | t | 120 | 30MPa |
| Max casing diameter | mm | 1062 | |
| Max lift force | t | 240 | 30MPa |
| Weight | kg | 4200 | |
| Oversize (L×W×H) | m | 2.85x1.7x1.6 | Transport size |
2,HYDRAULIC POWER STATION
| MODEL | specification | note |
| POWER | 4BTAA3.9-C100 | |
| Engine power kW | 75 | |
| big pump discharge l/min | 150 | |
| Small pump discharge L/min | 45 | |
| Working pressure:MPa | 25 | |
| Hydraulic oil capacity L | 900 | |
| Hydraulic oil number | YB-N46 | |
| oversize(l×W×H)(mm) | 3000×2000×1700 | |
| WEIGHT (kg) | 2000 |
A 1000mm hydraulic casing extractor (also referred to as a casing puller or pipe extractor) is a piece of heavy-duty pile equipment used to extract temporary steel casings ,double wall casing , single wall casing from the ground during deep foundation works, such as bored piling, secant pile walls, and diaphragm wall installations.Because withdrawing 1000mm temporary casings can exceed the safe pulling capacity of standard rotary drilling rigs-especially after concrete placement or when bound by high skin friction-these standalone hydraulic units provide the concentrated upward force required.Here is a breakdown of typical technical specifications, features, and operational setups for a standard 1000mm class unit.Typical Technical Specifications While exact metrics vary , a standard 1000mm standalone hydraulic casing extractor generally aligns with the following parameters:
| Parameter | Standard Range (1000mm Class) |
| Maximum Casing Diameter | 1000\text{ mm}$ (Can be reduced using modular inserts/shims) |
| Max Lifting Force (Pull Force) | $3,500\text{ to } 5,800\text{ kN}$ (Approx. $350\text{ to } 580\text{ tons}$) |
| Max Clamping Force | $1,100\text{ to } 1,800\text{ kN}$ (Approx. $110\text{ to } 180\text{ tons}$) |
| Lifting Stroke | $800\text{ to } 1,000\text{ mm}$ per cycle |
| System Operating Pressure | $30\text{ to } 32\text{ MPa}$ ($300\text{ to } 320\text{ bar}$) |
| Total Equipment Weight | $8.5\text{ to } 10.8\text{ metric tons}$ |
| Cylinder Configuration | Typically 2-column or 4-column lifting jacks |
Key Operational Features1. Reduction Inserts (Versatility)A dedicated 1000mm extractor is rarely limited to a single size. Manufacturers provide modular reduction inserts (shims) that bolt into the main clamping collar. This allows a 1000mm machine to securely grip smaller casing diameters common to secant wall layouts, such as:880 mm 610 mm
2. Synchronization SystemsBecause these machines deploy multiple hydraulic lifting jacks (often 4 cylinders), maintaining a perfectly level ascent is critical. High-end units utilize integrated hydraulic synchronization valves to prevent uneven cylinder extension, which can cause the casing to bind or cross-thread against the ground formation. 3. Power Pack Dependencies A 1000mm extractor requires a dedicated hydraulic power source. Depending on job site constraints, they are paired with: Diesel Power Packs: Best for isolated or heavy civil sites where electrical infrastructure is missing.
Electric Motor Power Packs: Typically 45kW stations, preferred for urban job sites with strict noise and emission regulations. Rig Auxiliary Hydraulics: In some configurations, the system can be plumbed directly into the auxiliary lines of a large rotary drilling rig or crawler crane.
Control Interfaces Modern configurations emphasize operator safety by shifting away from manual machine-side levers. They generally feature dual operating modes: Wireless Remote Control: Allows the ground crew to stand at a safe distance outside the line-of-fire while managing the clamping and lifting sequence.Manual Override Panels: Stationed directly on the power pack frame for backup or diagnostics. Common Field Applications Secant Pile Walls: Used to cleanly recover primary and secondary temporary casings without disturbing the freshly placed concrete of adjacent piles. Diaphragm Wall End-Pipes: Extracting structural circular joint tubes or stop-end pipes before the concrete fully cures.
Hydraulic Steering Flaps: Movable guide plates on the body of the grab that push against the trench walls to dynamically correct deviation during excavation.
Mexico 1000mm hydraulic casing extractor with diesel engine power ,canada/Vancouver /Calgary toronto /Ottawa 1000mm hydraulic casing extractor with diesel engine power ,colombia Medellín,Cartagena,Barranquilla,Tunja 1000mm hydraulic casing extractor with diesel engine power ,Vietnam/Phòng/Thành Chí Minh 1000mm hydraulic casing extractor with diesel engine power ,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbane 1000mm hydraulic casing extractor with diesel engine power ,thailand 1000mm hydraulic casing extractor with diesel engine power,Malaysia /Singapore Indonesia/Jakarta/Pilipines Россия/ruusia 1000mm hydraulic casing extractor with diesel engine power ,belize/Puerto Rico/Guatemala/San salvador/Honduras 1000mm hydraulic casing extractor with diesel engine power ,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana 1000mm hydraulic casing extractor with diesel engine power ,usa ,america los Angeles/new york/California 1000mm hydraulic casing extractor with diesel engine power,South Africa Kazakhstan 1000mm hydraulic casing extractor with diesel engine power , spain Português germany italy ,greece romania serbia,france 1000mm hydraulic casing extractor with diesel engine power africa 1000mm hydraulic casing extractor with diesel engine power ,south korea 1000mm hydraulic casing extractor with diesel engine power , japan 1000mm hydraulic casing extractor with diesel engine power , taiwan , hong kong 1000mm hydraulic casing extractor with diesel engine power uae 1000mm hydraulic casing extractor with diesel engine power israel 1000mm hydraulic casing extractor with diesel engine power ,serbia 1000mm hydraulic casing extractor with diesel engine power Tianjin huachang xingye technology co ltd

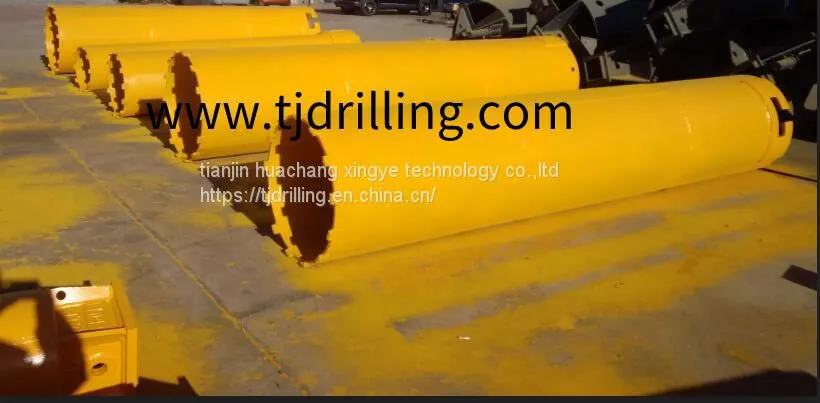

We are able to produce casings till 3000mm diameter
Double walled casings (D.W.
Casings drive adapter with flange (Long)
Casings drive adapter with flange (short)
Casings drive adapter with Kelly Box (short)

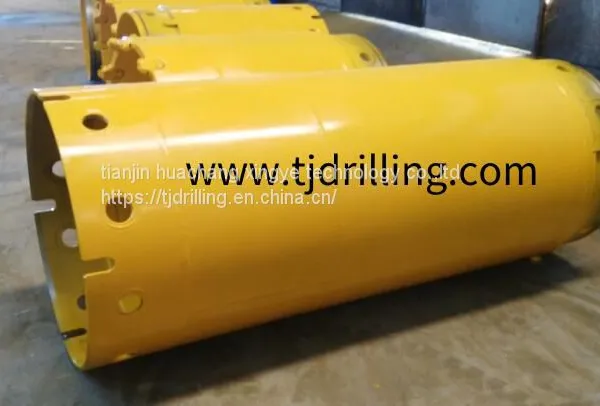

casing sizes, from diameter 600 mm up to 3000 mm. Joint thickness range is from 40 mm to 60 mm according to requested diameter. Double wall casings are especially designed to be used with casing oscillator and rotary systems. Casing joint coupling operations is by means of conical thread screws and centering keys
recommend DOUBLE WALL casing
Labyrinth joints are designed for quick coupling of double and single wall casings
Single wall casing labyrinth casing joints are available for columns having an outer diameters from 600mm a to 3000mm and on request.
Casing TWISTER / CASING ADAPTER
CASING SHOE FOR SOFT SOILS
CASING SHOE FOR ROCK WITH WELD-ON BARS
CASING SHOE FOR ROCK WITH REPLACEABLE BARS for secant pile
Casing drive adapter (Twister) that transfers the torque from the rotary drive to the casing
Casing Shoe for soft soil or hard soil conditions or secant piles using different types of teeth
Double walled which are used widely used either for their resistance and ability to ensure a flush drill string.
– Single walled which can be used when weight reduction is required or for light works.
These both versions could be equipped with Screw type connection or Key connection.
CASING WITH SCREW TYPE CONNECTION
CASING WITH KEY TYPE CONNECTION
Tianjin huachang xingye technology co ltd email info@tjdrilling.com
Whatsapp 008618902059907
