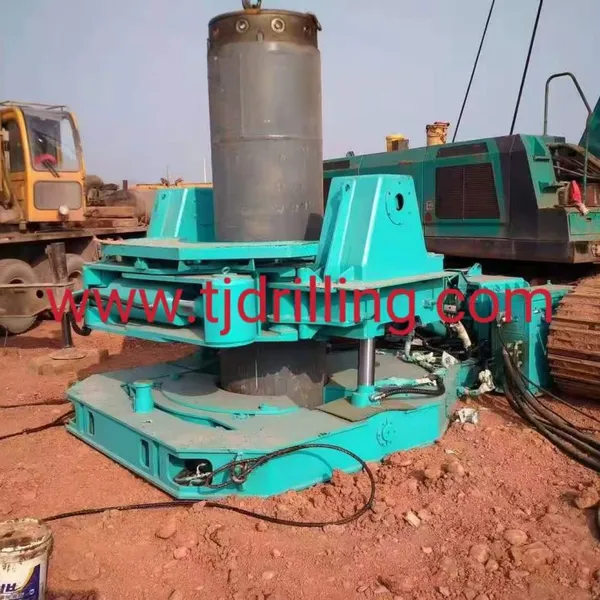

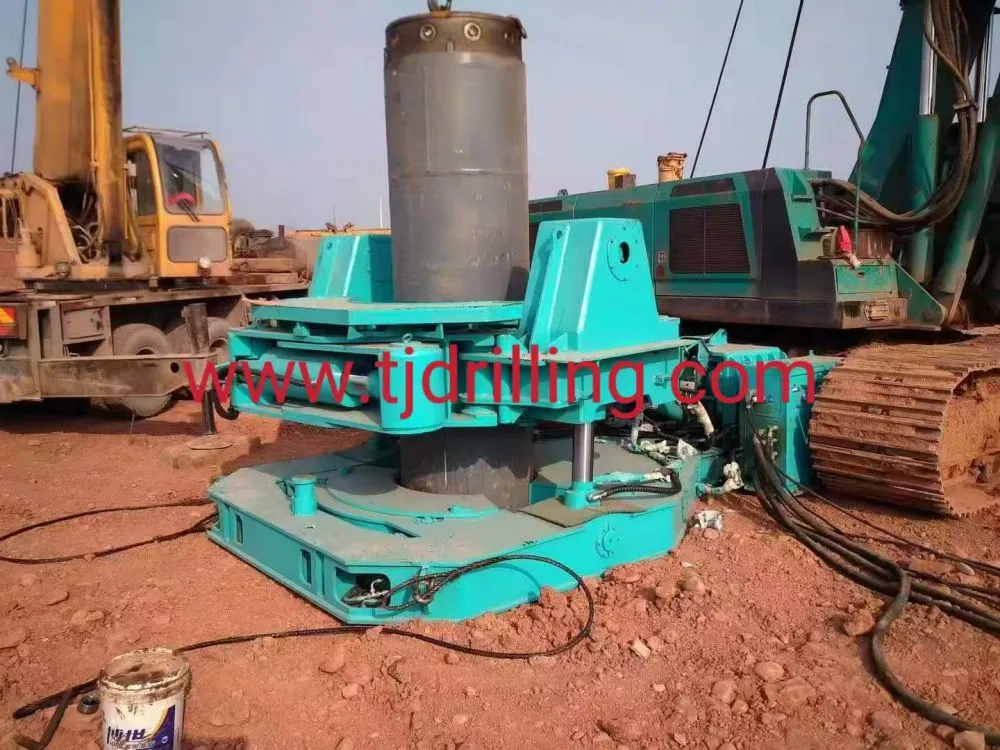

Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg28 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg24 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg33 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg36 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg40 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on bauer-bg26 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on liebherr-lb28 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on liebherr-lb24 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on liebherr-lb36 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on san-y sr285 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on soilmec sr60 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on san-y sr285 rotary rig for cased bored pile foundation work
Casing oscillator foundation drill rig type OD1200mm connect on casagrande b200 rotary rig for cased bored pile foundation work
Hydraulic casing oscillators are used to drive and to extract large steel casings with diameters ranging from 800 to 2500 mm up to depths of 70 m. The required hydraulic power is supplied either by the excavating machine (hydraulic crawler crane or drilling rig) or by a separate power pack Casing Oscillators for cranes type(long version
1,specification of 1200mm hydraulic casing oscillator
MODEL： |
BCG1200D |
REMARK |
CASING OD (mm) |
600～1200 |
|
MAX LIFT FORCE (kN) |
1200 |
|
OSCILLATE ANGEL (°) |
18° |
|
TORQUE (KN·m) |
1250 |
|
STROKE（mm） |
450 |
|
CLAMP FORCE（kN） |
1100 |
|
OVER SIZE (L×W×H)(mm) |
3200×2250×1600 |
|
WEIGHT (T) |
10 |
2,specification of 1200mm casing oscillator diesel engine power pack
MODEL： |
DL160 |
REMARL |
ENGINE MODEL： |
QSB4.5-C130 |
|
DIESEL ENGINE kW |
100 |
|
OUT CAPACITY l/min |
150 |
|
WORKING PRESSURE：MPa |
25 |
|
OIL TANK L |
800 |
|
OVER SIZE(L×W×H)(mm) |
3000×1900×1700 |
|
WEIGHT (kg) |
2500 |
NOT INCLUDE OIL |
Mexico 1200mm hydraulic casing oscillator ,canada/Vancouver /Calgary toronto /Ottawa 1200mm hydraulic casing oscillator colombia Medellín,Cartagena,Barranquilla,Tunja 1200mm hydraulic casing oscillator ,Vietnam/Hà i Phòng/Thành Chí Minh chy 1200mm hydraulic casing oscillator ,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbane 1200mm hydraulic casing oscillator thailand
1200mm hydraulic casing oscillator ,Malaysia /Singapore Indonesia/Jakarta/Pilipines Россия/russia 1200mm hydraulic casing oscillator ,belize/Puerto Rico/Guatemala/San salvador/Honduras 1200mm hydraulic casing oscillator,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana 1200mm hydraulic casing oscillator ,usa ,america los Angeles/new york/California 1200mm hydraulic casing oscillator ,South Africa Kazakhstan 1200mm hydraulic casing oscillator, spain Português germany italy ,greece romania serbia,france 1200mm hydraulic casing oscillator south africa 1200mm hydraulic casing oscillator ,south korea 1200mm hydraulic casing oscillator, japan 1200mm hydraulic casing oscillator
, taiwan , hong kong 1200mm hydraulic casing oscillator,uae 1200mm hydraulic casing oscillator , israel 1200mm hydraulic casing oscillator
