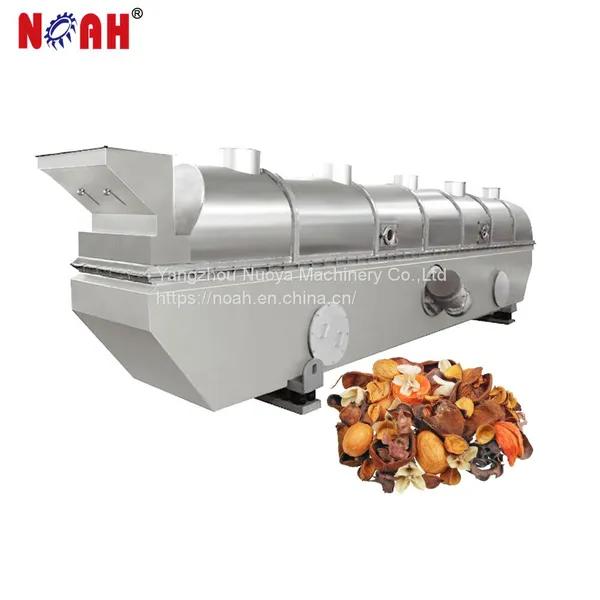

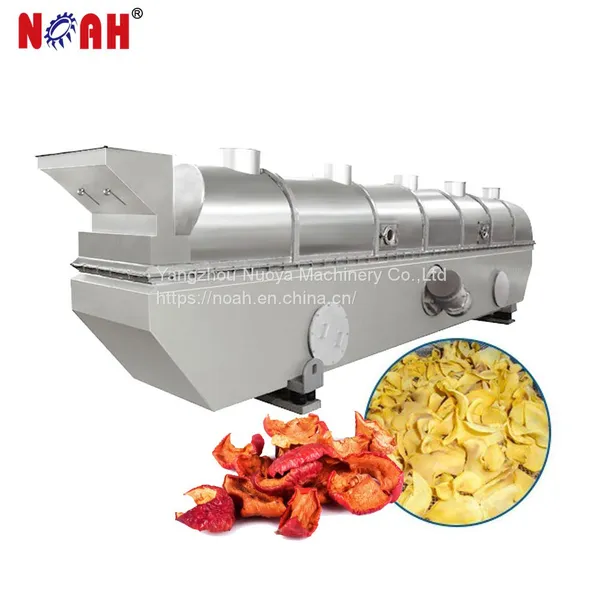

ZLG Series Rectilinear Vibrating Fluid Bed Dryer
The ZLG Series Rectilinear Vibrating Fluid Bed Dryer is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.
Features:
The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
High effection, raw material is heates evenly and heated evenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
It is small for danaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
You can string multi-set to raised capacity of raw materials, such as polyacrylamide.
Model | Fluidized Bed Area m2 | Temperature of air in °C | Temperature of air out °C | Capacity of vaporize moisture Kg/h | Vibration Motor | |
Model | Power(Kw) | |||||
ZLG3×0.30 | 0.9 | 70~140 | 40~70 | 20~35 | NYS8-6 | 0.75×2 |
ZLG4.5×0.30 | 1.35 | 35~50 | NYS10-6 | |||
ZLG4.5×0.45 | 2.025 | 50~70 | NYS15-6 | 1.1×2 | ||
ZLG4.5×0.60 | 2.7 | 70~90 | YZS15-6 | |||
ZLG6×0.45 | 80~100 | NYS15-6 | ||||
ZLG6×0.60 | 3.6 | 100~130 | NYS20-6 | 1.5×2 | ||
ZLG6×0.75 | 4.5 | 120~170 | 2.5×2 | |||
ZLG6×0.90 | 5.4 | 140~170 | NYS30-6 | 2.2×2 | ||
ZLG7.5×6.0 | 4.5 | 130~150 | ||||
ZLG7.5×0.75 | 5.625 | 150~180 | NYS40-6 | 3.0×2 | ||
ZLG7.5×0.9 | 6.75 | 160~210 | NYS-6 | |||
ZLG7.5×1.2 | 9 | 200~280 | NYS50-6 | 3.7×2 | ||
ZLG7.5×1.5 | 11.25 | 230~330 | ||||
ZLG8×1.8 | 14.4 | 290~420 | NYS75-6 | 5.5×2 | ||
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship ZLG Series Rectilinear Vibrating Fluid Bed Dryer by sea way.
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
If you need, we can dispatch our engineers to your country to install and train machines.

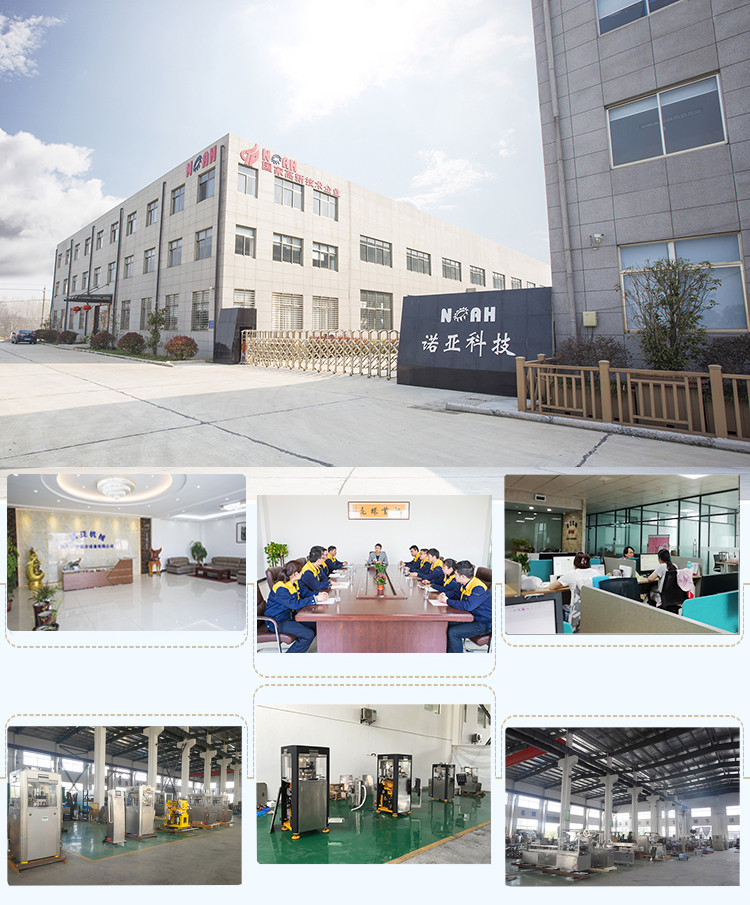

Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical,Chemical,food and so etc fields
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
The Headquarter is located in The beautiful,historical and cultural City-Yangzhou.
Our production,examinaton and supervision are strictly following the ISO9001 International Quality System and meet the CE Certification.
