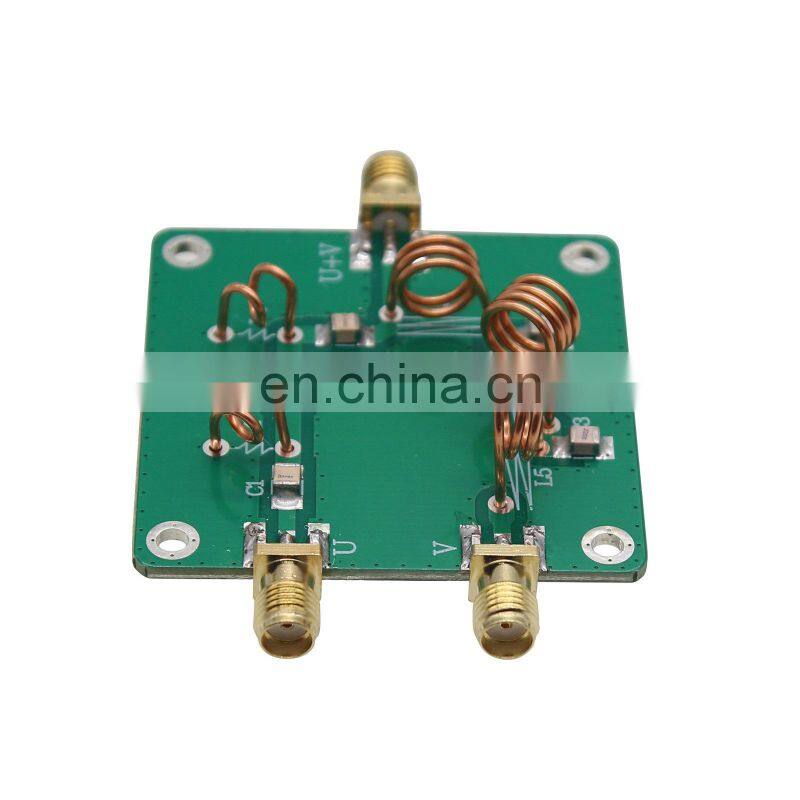

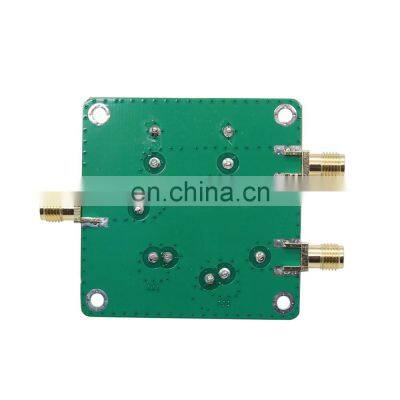

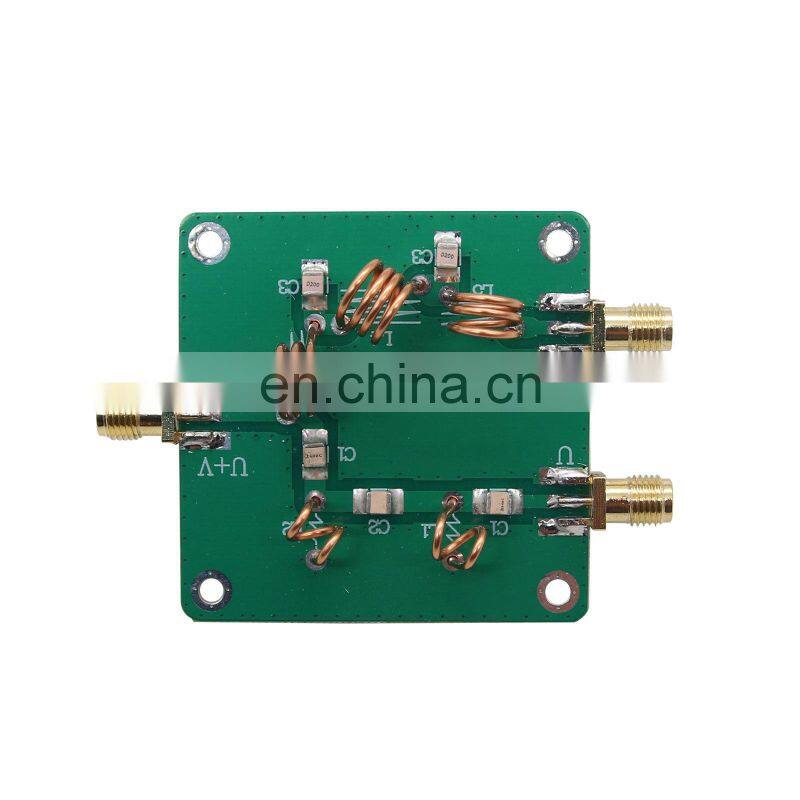

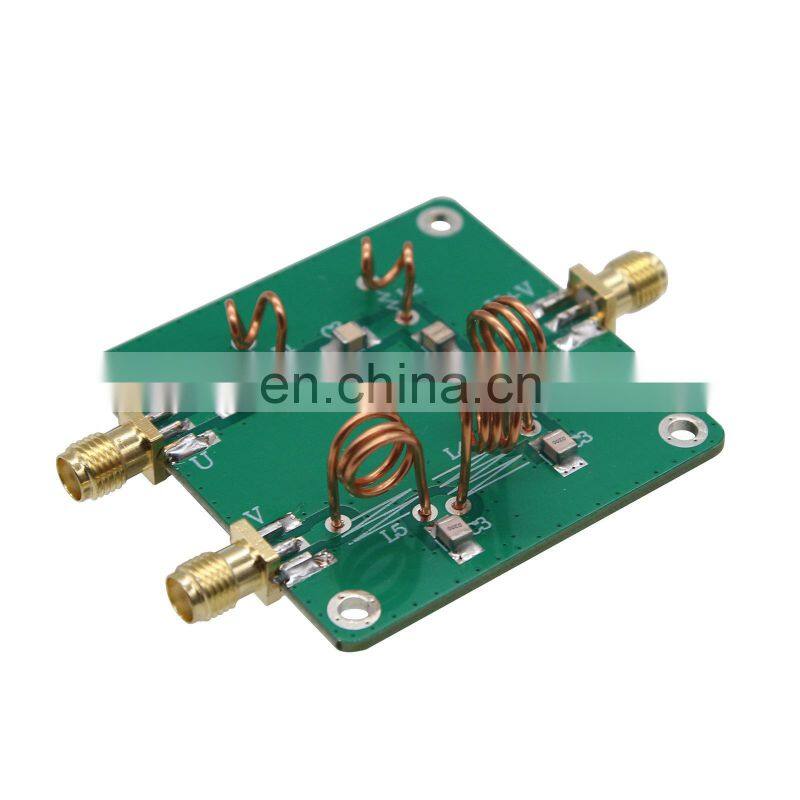

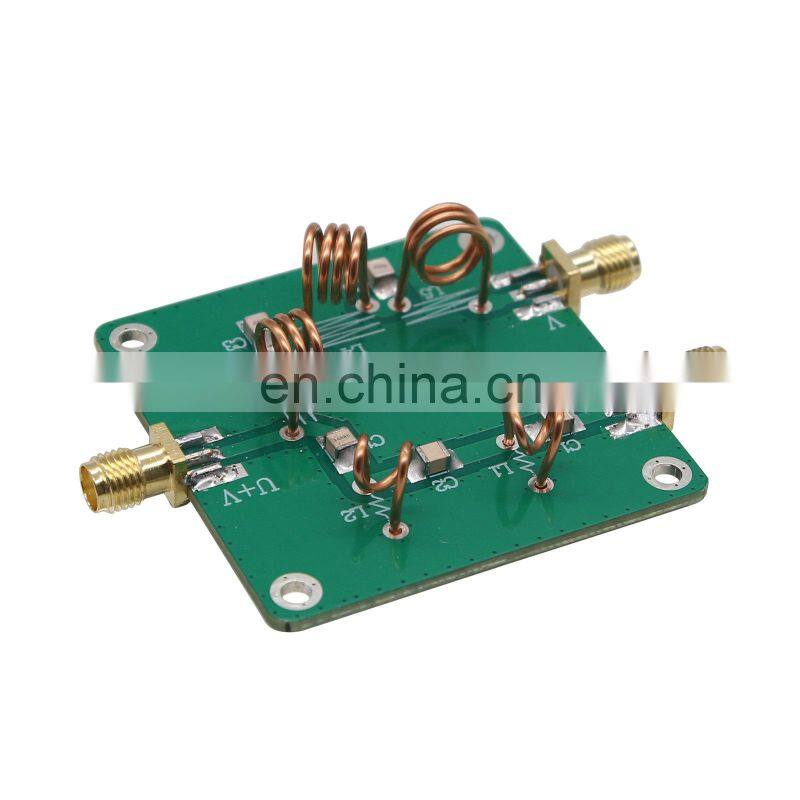

Description:
This passive module is used to combine U and V radio frequency signals into one channel, or to separate U and V common channel signals into two independent channels, so as to realize the sharing of a transmission cable or the two signals share one UV dual frequency antenna. It is suitable for UV differential links or repeaters.
Imported high-quality high-power high-voltage RF dedicated capacitors features small loss and large power capacity.

Technical Parameters:
- Operating Frequency:
  V Segment: DC-185MHz
  U Segment: 350-560MHz
- Insertion Loss:
  V Segment: <0.2dB
  U Segment: <0.3dB
- SWR: <1.5
- UV Isolation: > 45dB
- Power Capacity: 200W (using imported power capacitors)
- Connector Form: SMA-K (standard female)

Connection Methods:
- U: Connect to U segment separate signal
- V: Connect to V segment separate signal
- U + V: Connect to U and V collinear signals

Package Included:
- 1 x UV Combiner Splitter
