Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware

Parameters:
- Frequency band: 1MHz-6Ghz
- Data bandwidth: 20MHz
- Sampling accuracy ( ADC/DAC) : 8BIT
- Sampling speed ( ADC/DAC): 20Mbps
- Interface: USB2.0
- Open source
- Maximum transmitting power: 10dbm
- 64QAM transmitting EVM: 1.5%
- Complex sampling bandwidth: 20Mhz

Hardware:
- Mixer RFFC5072: 80MHz-4200MHz
- Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz
- Processor LPC4330: Main frequency 204MHz
- Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

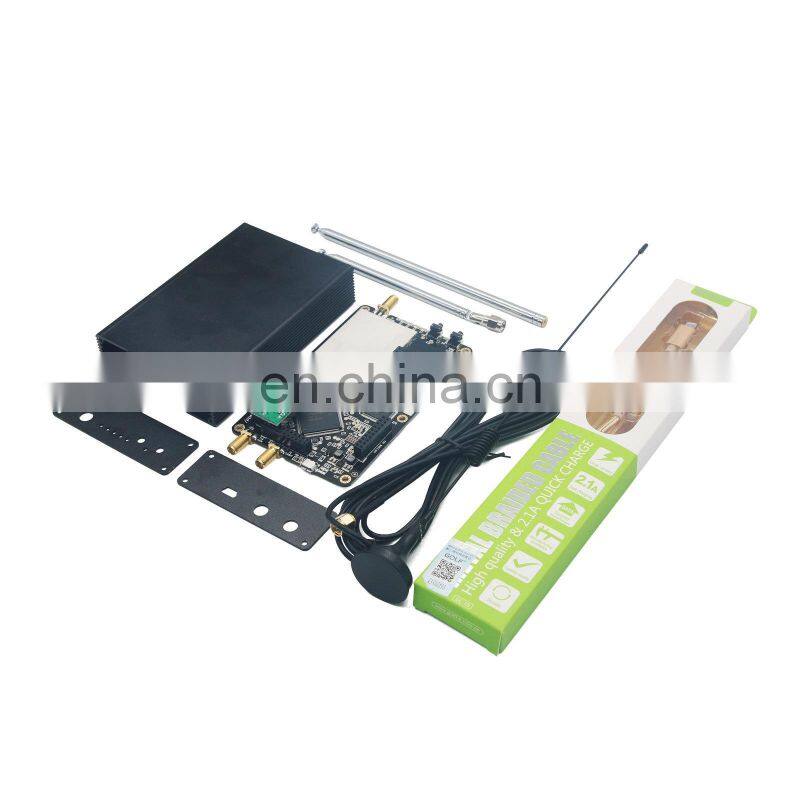

Package Contents:

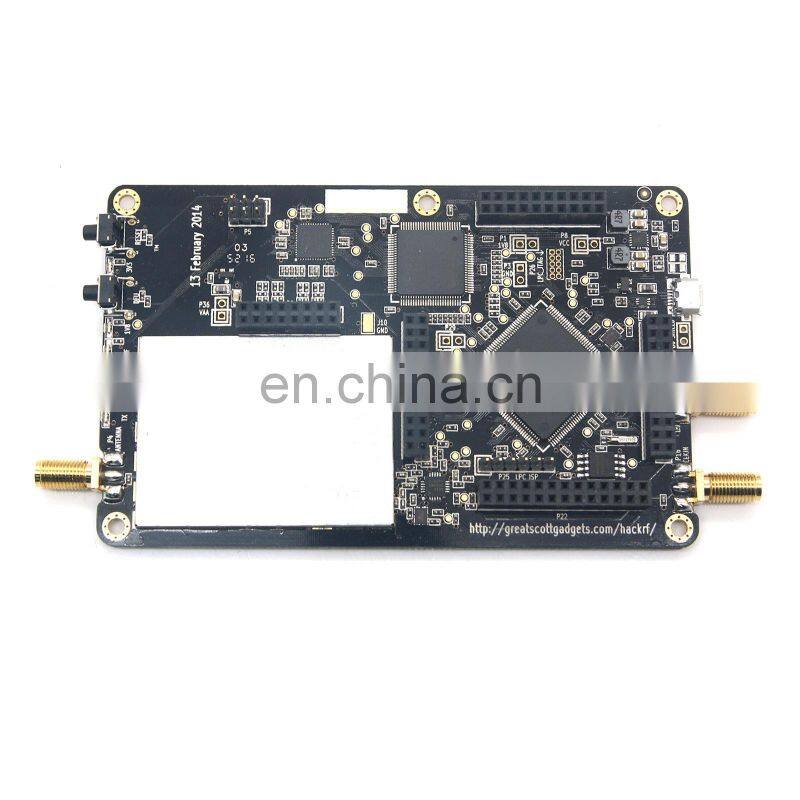

- 1 x Main board

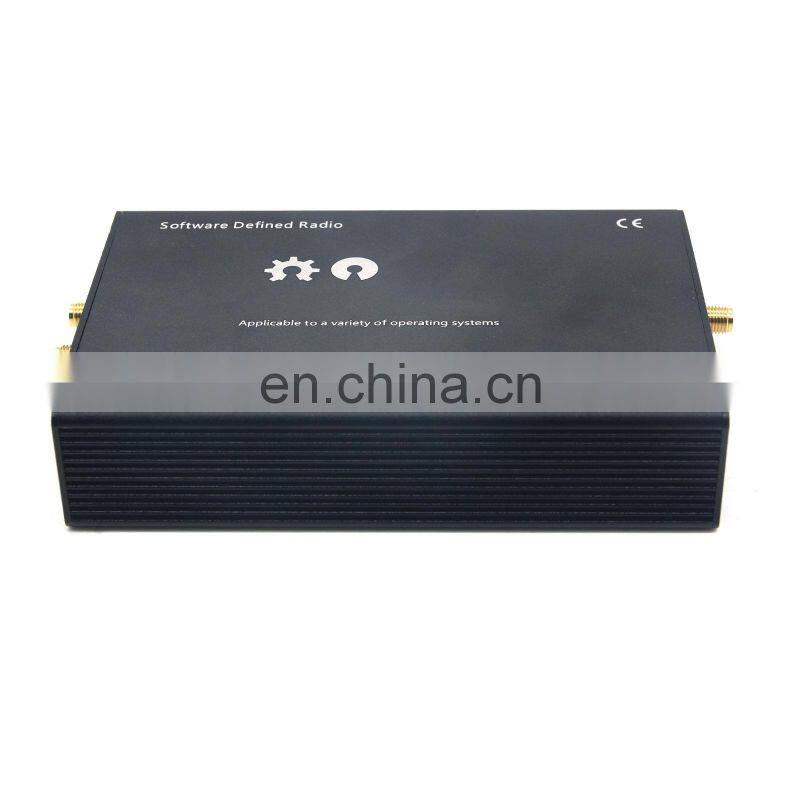

- 1 x Aluminum alloy Shell

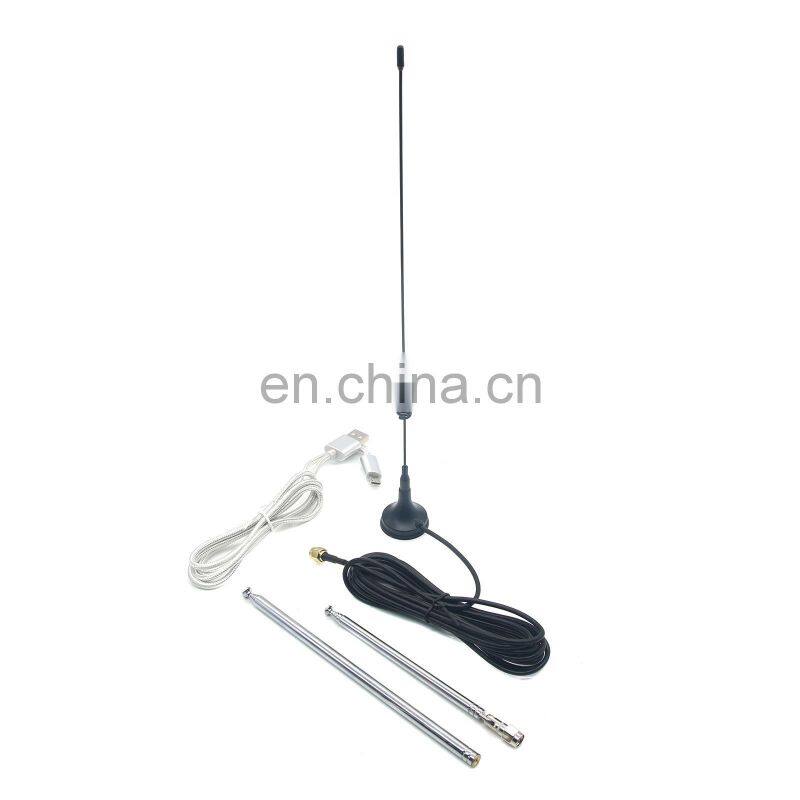

- 1 x Antenna (40Mhz-6GHz)
- 1 x Data cable
- 1 x TCXO clock
