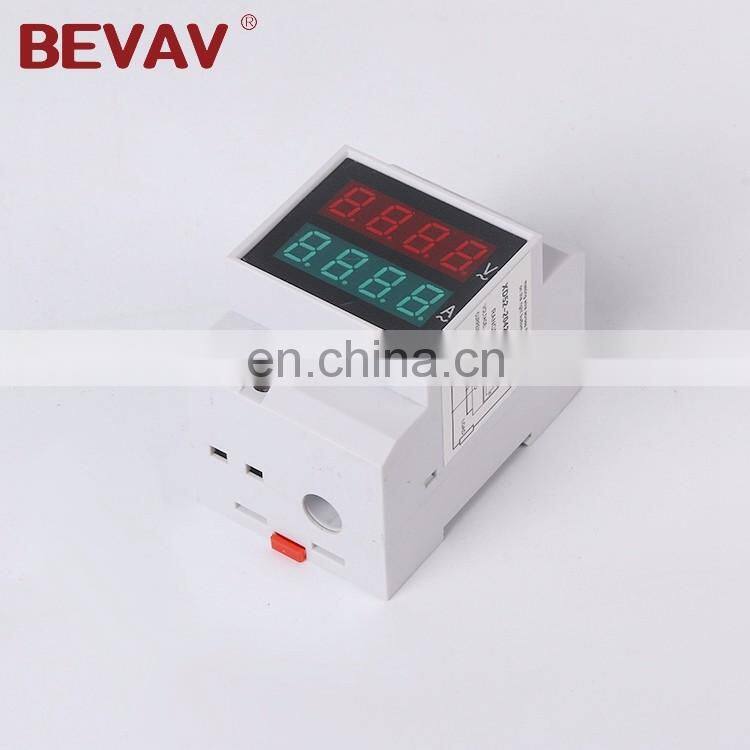

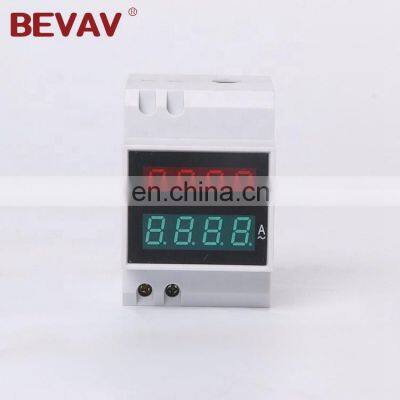

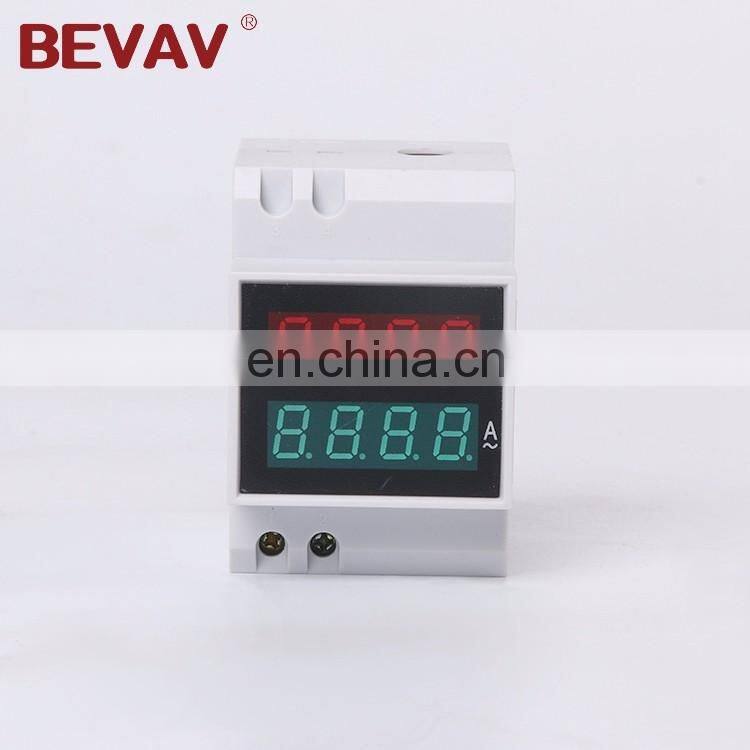

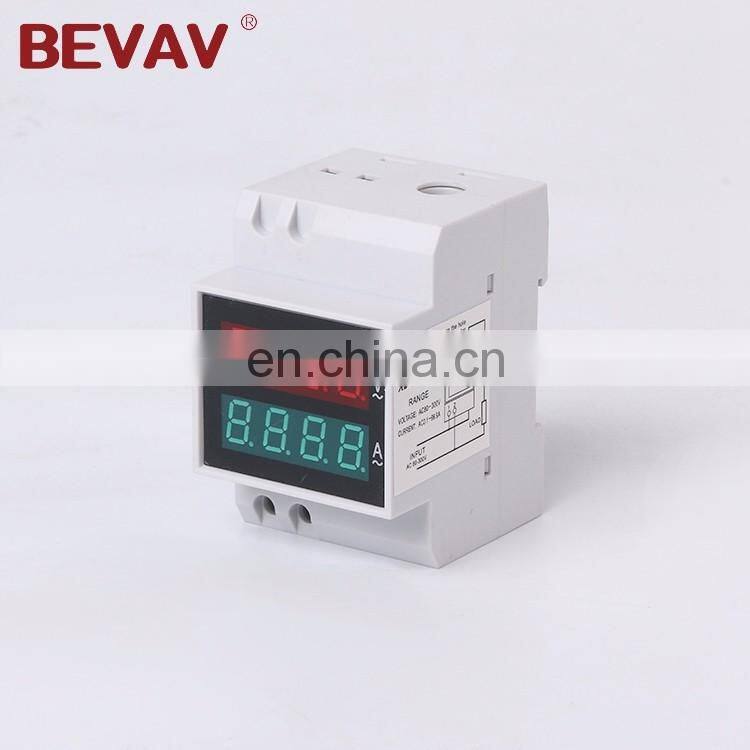

BEVAV D52-2042 Din-Rail Digital Meter , AC Ampere and Voltage Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1991
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40A o R63A 100-450V Din Rail Voltage Protective Protector Relay Protection Over and Under Voltage ProtectorNegotiableMOQ: 1 -
Adjustable Intelligent Over&Under Voltage Protector V-Protector 40A 63A Home Appliance GuardianNegotiableMOQ: 1
-
Hot Sales Single Phase Over & Under Automatic Voltage ProtectorNegotiableMOQ: 1
-
AUTOMATIC VOLTAGE REGULATOR OVER UNDER VOLTAGE PROTECTOR FOR HOMENegotiableMOQ: 1
-
Intelligent Household Din Rail Automatic Recovery Reconnect Current Limiting Protective Device ProtectorNegotiableMOQ: 1
BEVAV
Detailed Images
Product Description
D52-2042 Din-rail AC voltage and current meter User Guides & Instructions
D52-2042 Din-rail AC voltage and current meter can display AC voltage and current at the same time.If the measuring current is lower than 99.9A , you can getthe AC current only making the wire across the hole which in the right side of the meter. If the measuring current is higher than 99.9A, you should connect meter with a current transformer.
Technical Indicators
1. Accuracy : 1%
2. Display mode: 0.5 inch LED digital tube
3. Range: AC voltage : 80 - 300V, 200 - 450V
(You should select the one of measuring range in your order)
AC current: 0.1 - 99.9A
(You should order current transformer when current is higher than 100A independent)
4. Speed: 2 per second
5. Size: 54*80*64 mm

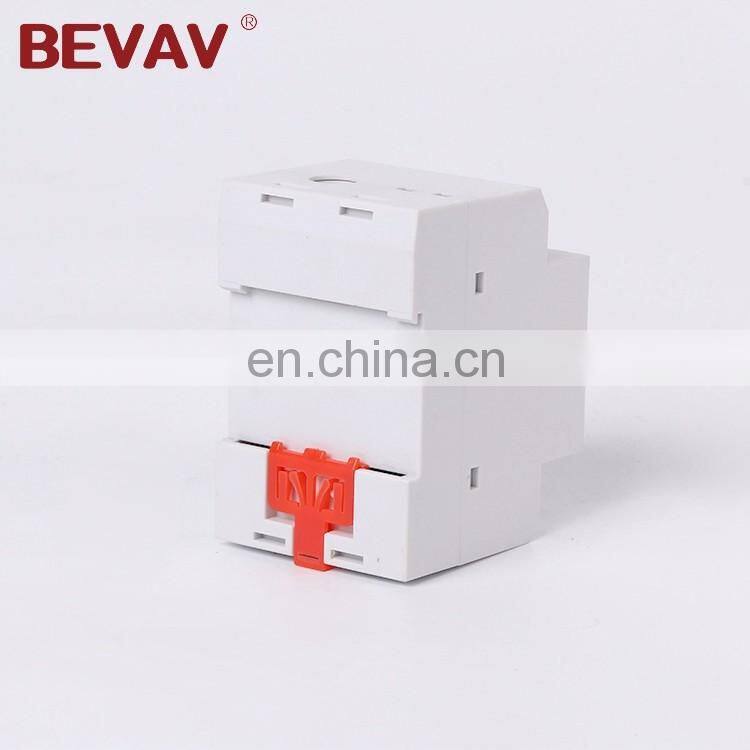

6. Installation: Din-rail
2. Display mode: 0.5 inch LED digital tube
3. Range: AC voltage : 80 - 300V, 200 - 450V
(You should select the one of measuring range in your order)
AC current: 0.1 - 99.9A
(You should order current transformer when current is higher than 100A independent)
4. Speed: 2 per second
5. Size: 54*80*64 mm
6. Installation: Din-rail
Application method
1. Connect the meauring voltage to the 1 and 2 terminal on the bottom left of meter.

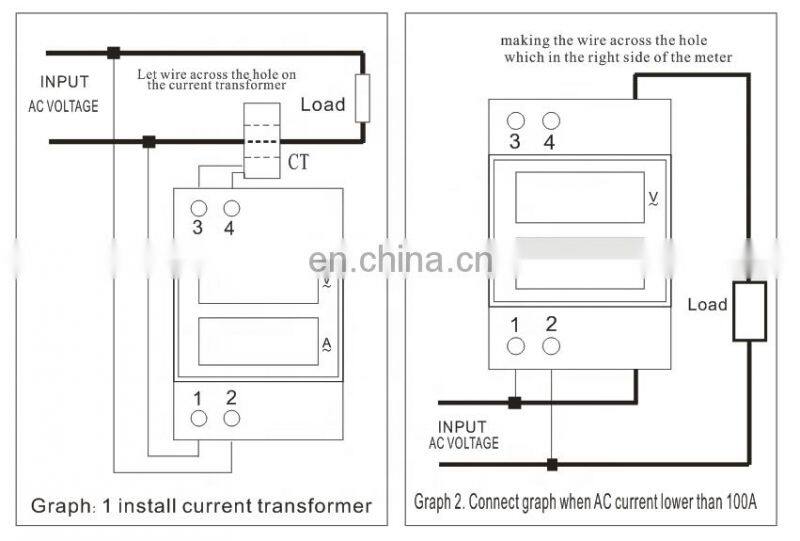

2. Install current transformer as graph 1. Connect the wires of secondary transformer to the terminal
of 3 and 4 on the meter surface. Make the measure wire across to the hole of current transformer.
3. If measuring current between 0.1and 99.9A, see graph2, you can get current only making the
wire across the hole on the b ottom of the meter, and the direction of insert do not impact the measure result.
2. Install current transformer as graph 1. Connect the wires of secondary transformer to the terminal
of 3 and 4 on the meter surface. Make the measure wire across to the hole of current transformer.
3. If measuring current between 0.1and 99.9A, see graph2, you can get current only making the
wire across the hole on the b ottom of the meter, and the direction of insert do not impact the measure result.
