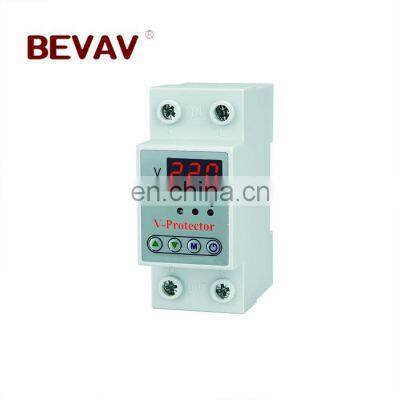

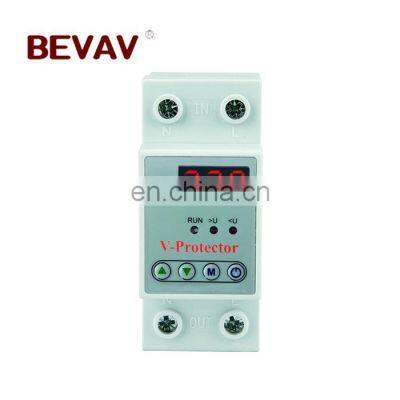

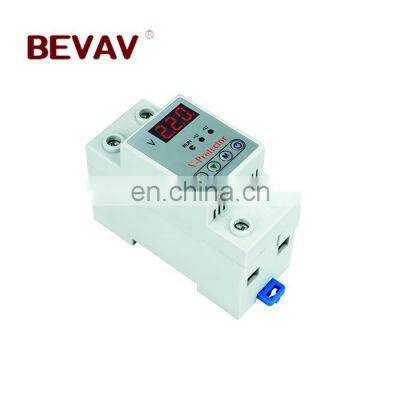

40A o R63A 100-450V Din Rail Voltage Protective Protector Relay Protection Over and Under Voltage Protector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1991
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Adjustable Intelligent Over&Under Voltage Protector V-Protector 40A 63A Home Appliance GuardianNegotiableMOQ: 1 -
Hot Sales Single Phase Over & Under Automatic Voltage ProtectorNegotiableMOQ: 1
-
AUTOMATIC VOLTAGE REGULATOR OVER UNDER VOLTAGE PROTECTOR FOR HOMENegotiableMOQ: 1
-
Intelligent Household Din Rail Automatic Recovery Reconnect Current Limiting Protective Device ProtectorNegotiableMOQ: 1
-
Din Rail Intelligent Over&Under Voltage Protector 40A Protect Air Conditioner Voltage ProtectionNegotiableMOQ: 1
BEVAV
Adjustable Voltage Relay Control Over Under Voltage Protector 220V 110V 40A 63A 80A Overvoltage and Over Current Protection

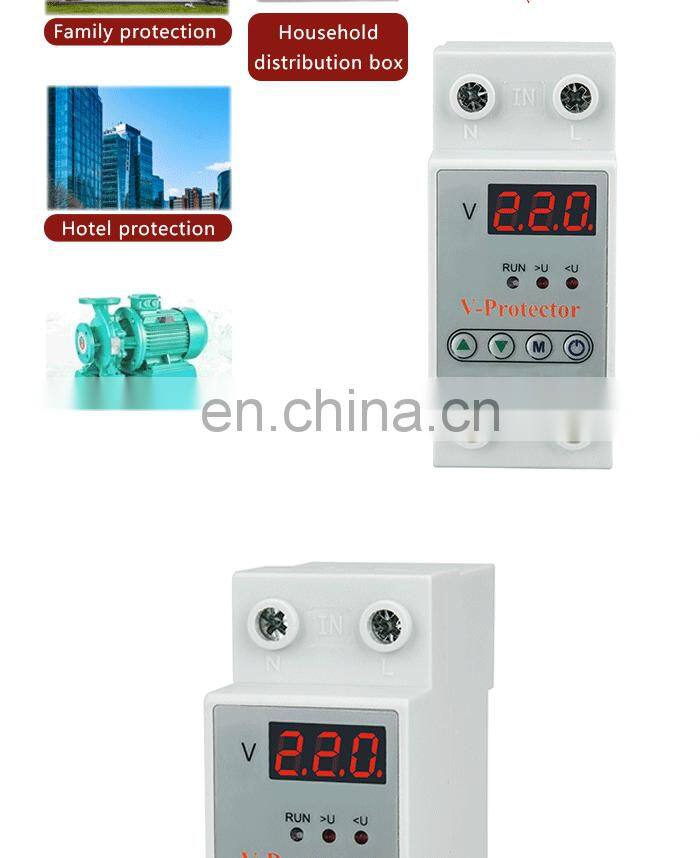

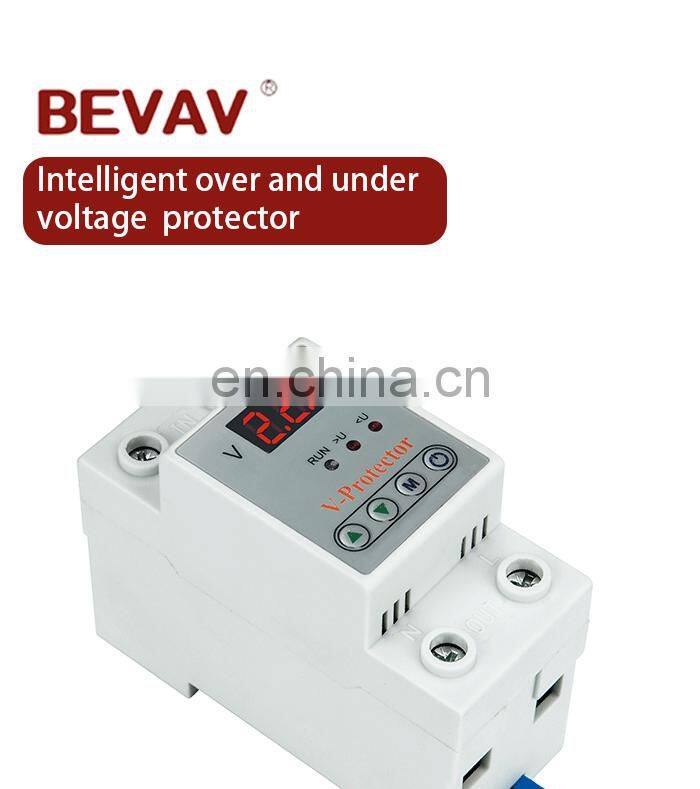

Protector series BEVAV brand automatic over-voltage and under-voltage protector is suitable for single-phase AC 230V 50/60Hz, rated working current 40A or 63A or 80A or less loads. It is mainly used for residential household box entry or
over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main

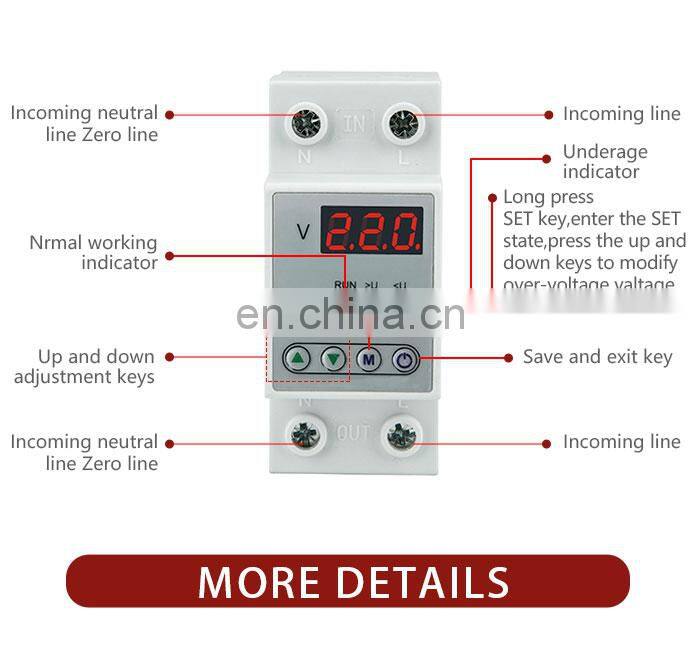

feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal. The green indicator display, when the power is normal supply. The red indicator display, when the power over voltage or under voltage.
over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main
feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal. The green indicator display, when the power is normal supply. The red indicator display, when the power over voltage or under voltage.
Functions:
1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement)
Product Parameters:
1.Model number:BE-VAP 40A or 63A or 80A
1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement)
Product Parameters:
1.Model number:BE-VAP 40A or 63A or 80A
2.Power supply: AC 230V 50/60Hz
3.Max.Loading power:1~40A or 1~63A or 1~80A Adjustable(default:40A or 63A or 80A)
4. Over-voltage protection value range:230V~300(default:270V)
Under-voltage protection value range:210V--140V(default:170V)
Over-current adjustment range:1-40A or 63A or 80A(default:40A or 63A or 80A)
Over-current action range:1~400 second (default:2.0s)
Over-current action range:1~400 second (default:2.0s)
Recovery delay time:1s~400s(default:2s)
Power-on delay time:1s~30s(default:30s)
5.Power consumption : <2W
6.Electric machinery life : 100,000 times

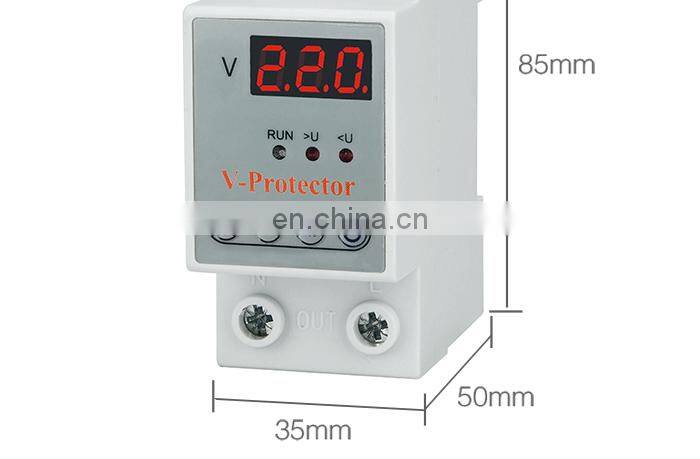

7.Installation:35mm DIN rail
