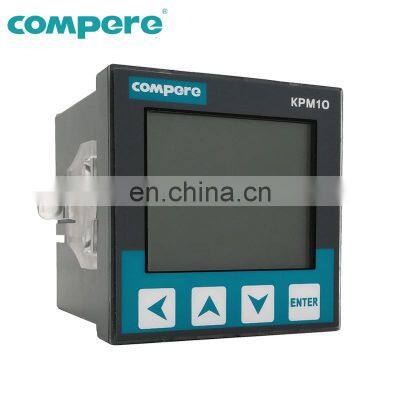

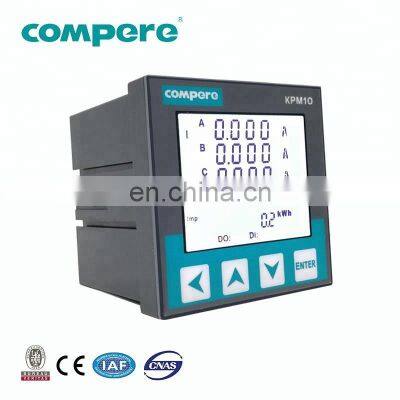

Industrial IOT Device Bidirectional Electric Panel Modbus Energy Meter for Energy Management System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini 3 Phase Electric Energy Power Consumption Monitor Digital Power Analyser PowermeterNegotiableMOQ: 1 -
Three Phase Digital Power Meter Multifunction Power Quality and Energy Analyzer Digital Power Meter PriceNegotiableMOQ: 1
-
Energy Meter Rs485 Online System Power Quality Analyzer Energy Power Monitor Power Factor MeterNegotiableMOQ: 1
-
Three Phase Multifunction Power Meter With RS485 Port and Modbus-RTU Power Quality and Energy Analyzer Panel MeterNegotiableMOQ: 1
-
KPM53 Class 0.5 Three Phase Smart Digital Power Meter Voltmeter ac Voltage Meter Power Quality and Energy AnalyzerNegotiableMOQ: 1
FEATURES AT A GLANCE
KPM10Z bidirectional electric panel modbus energy meter was designed that using advanced 32-bit ARM processor and digital signal processing technology comprehensive set of three-phase electrical parameter measurement/display, power accumulation, fault alarm.
Optional function:
21st harmonic measurement
2 wires digital inputs
2 wires relays Output
Modbus network communications
21st harmonic measurement
2 wires digital inputs
2 wires relays Output
Modbus network communications
Standard 72mm panel, large screen LCD screen, standard 1-way RS485 communication interface. With high precision,strong isolation,stable performance,anti-interference ability and so on.
KPM10 three phase multifuction power |
||||||||||||
product type |
measurement |
special function |
communication |
extensions function |
hole size |
|||||||
KPM10 |
3 phase voltage, current, power, power factor, 4 quadrant power, frequency, etc.
|
Four quadrant power measurement,duplication of fees statistics;three-phrase unbalance rate current K coefficient 2-21 harmonics measurement |
RS485/standard |
2DO(-R) |
2DI(-K) |
68*68mm |
||||||
Optional |
optional |
|||||||||||
Details Images
Basic Functions
1.Measurement of three-phase voltage,current,active power,reactive power, apparent power,power factor,frequency,active
energy,reactive energy.
2.Multi-rate energy statistics,a day can be set up to eight time periods,four kinds of rates.
3.Historical power statistics function.
4.Rated current optional.
5.1 road passive optical coupler collector active pulse output
6.1 –way RS485 communication interface,Modbus communication
7.7 +1 bit LCD display a variety of power parameters and information
8.Built-in clock and maintenance-free battery,battery capacity real-time monitoring,data is permanently saved after power off.
9.Application of large-capacity magnetic retention relay,Load on-off control.
energy,reactive energy.
2.Multi-rate energy statistics,a day can be set up to eight time periods,four kinds of rates.
3.Historical power statistics function.
4.Rated current optional.
5.1 road passive optical coupler collector active pulse output
6.1 –way RS485 communication interface,Modbus communication
7.7 +1 bit LCD display a variety of power parameters and information
8.Built-in clock and maintenance-free battery,battery capacity real-time monitoring,data is permanently saved after power off.
9.Application of large-capacity magnetic retention relay,Load on-off control.
Modbus RS485 solution and wireless connection solution for bidirectional electric panel modbus energy meter
Product Paramenters
KPM10 Modbus 3 phase current voltage frequency meter |
||||
Working Power Source |
Operating Voltage |
AC85~265V/DC80~300V |
||
Rated Power |
<3VA |
|||
Input Voltage |
Rated Voltage |
57.7/100V,220/380V, 380/660A (needs customization) |
||
Sill Value |
5V |
|||
Overload Capacity |
1.2 times rated voltage allowed,continuous work; 2 times the rated voltage allowed 1 second |
|||
Power Consumption |
<0.5VA/phase(rated) |
|||
Measurement Range |
5~260VAC, |
|||
Frequency Range |
45~65Hz |
|||
Input Current |
Rated Current |
Default 5A,Input range 1-6A;Optional 1A,Input range 1-1.2A |
||
Sill Value |
5A Configuration,5mA;1A Configuration,0.8mA |
|||
Overload Capacity |
1.2 times rated current allowed,continuous work; 20 times the rated current allowed 1 second |
|||
Power Consumption |
<0.75VA/phase(Rated current 5A);<0.25VA/phase(Rated current 1A) |
|||
Frequency Range |
45~65Hz |
|||
Input/Output |
Switch Value Input |
2-way passive main line contact DI input, internal supply DC24V power source |
||
Relay Output |
2-way DO output, Contact capacity 250VAC/5A,30VDC/5A |
|||
Power Quality Monitor |
Harmonic Measurement |
Voltage/current2~21th harmonic distortion rate, total harmonic distortion rate. |
||
Harmonic Distortion Rate |
Phase voltage,line voltage |
|||
Imbalance Rate |
Voltage. current |
|||
Measurement Accuracy |
Voltage |
±0.2%(0.01V) |
||
Current |
±0.2%(0.01A) |
|||
Active Power |
±0.5%(0.1W) |
|||
Reactive Power |
±2.0%(0.1kvar) |
|||
Active Energy |
±0.5%(0.1kWh) |
|||
Reactive Energy |
±2.0%(0.1kvarh) |
|||
Power Factor |
±0.5%(0.001) |
|||
Frequency |
±0.02Hz(0.01Hz) |
|||
Temperature |
±1℃(1℃) |
|||
Communication |
Communication Interface |
RS485,Photoelectric isolation interface |
||
Communication Protocol |
Modbus-RTU,1200~38400bps |
|||
Electrical Insulation |
Power Frequency Withstand Voltage |
AC2kV/min~1mA Input-output-power source (GB/T 13729) |
||
Insulation Resistance |
>50MΩ (GB/T 13729) |
|||
Impact Voltage |
5kV(Peak)1.2/50us (GB/T 13729) |
|||
Working Environment |
Operating Temperature |
-25℃ ~ +70℃ |
||
Relative Humidity |
5%~95% No condensation |
|||
Storage Temperature |
-30℃ ~ +75℃ |
|||
Altitude |
No more than 4000m |
|||
Product size
