Product Overview

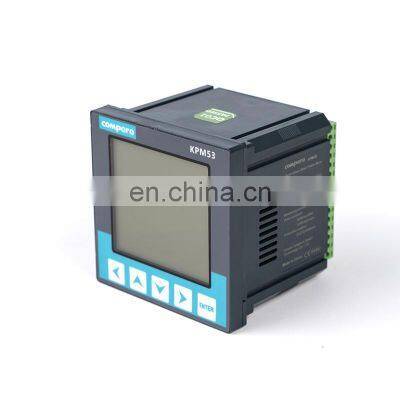

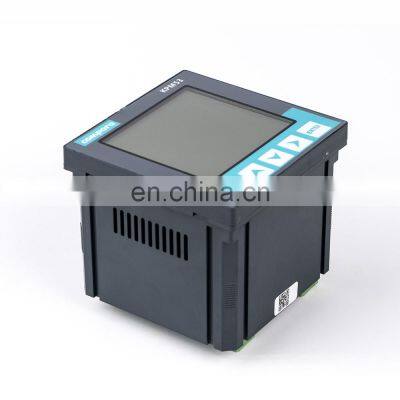

Energy Meter rs485 online System Power Quality Analyzer Energy Power Monitor Power Factor Meter
KPM53 series rs485 smart meter with accurate measurement of power parameters,the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters measurement,display, power statistics,power quality analysis,digital input/Output and network communications in one;with high precision,strong isolation,stable performance,anti-interference ability and a little; the instrument also has a very strong expansion capabilities,such as monitoring of external switching action,4-20mA analog output,but also The network management of the instrument can be realized through RS-485/Modbus communication protocol.
FEATURES AT A GLANCE
1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.
Details Images
Product Paramenters
Technical Parameters |
||||||||
KPM 53 smart digital commercial electric meter |
||||||||
Accuracy Class |
Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5 |
|||||||
Active Power: 0.5S; Reactive Power: 2.0 |
||||||||
Active Energy: 0.5S; Reactive Energy: 2.0 |
||||||||
Input |
Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A)
|
||||||
Overload |
Voltage: Sustained Overload: 1.2 times of the rated value |
|||||||
Momentary Overload: 2 times of the rated value, allows 1s |
||||||||
Current: Sustained Overload: 1.2 times of the rated value |
||||||||
Momentary Overload: 20 times of the rated value, allows 1s |
||||||||
Frequency |
45-60Hz |
|||||||
Functional Module |
Pulse Output |
1 |
||||||
Interface |
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps |
|||||||
Power Supply |
Working Range |
AC: 85-265V; DC: 80-300V |
||||||
Consumption |
< 3VA |
|||||||
Working Condition |
Temperature |
Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
||||||
Humidity |
5%~95% No condensation |
|||||||
Altitude |
<4000m |
|||||||
Dimensions: |
96×96×88mm |
|||||||
