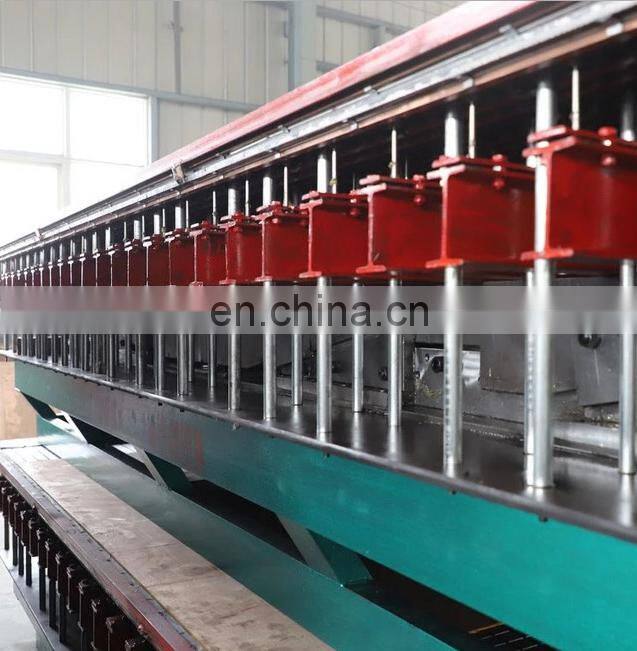

Fiberglass Reinforced Plastic FRP Molded Grating Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP Grating Equipment Fiberglass Molded Grating MachineNegotiableMOQ: 1 -
FRP Grating Production Line Fiberglass Grating MachineNegotiableMOQ: 1
-
FRP/GRP Pipe Filament Winding Machine FRP Pipe Production LineNegotiableMOQ: 1
-
Practical Grp/frp Pipe Continuous Winding MachineNegotiableMOQ: 1
-
Automatic Fiberglass/GRP/FRP Filament Winding MachineNegotiableMOQ: 1
Product Description

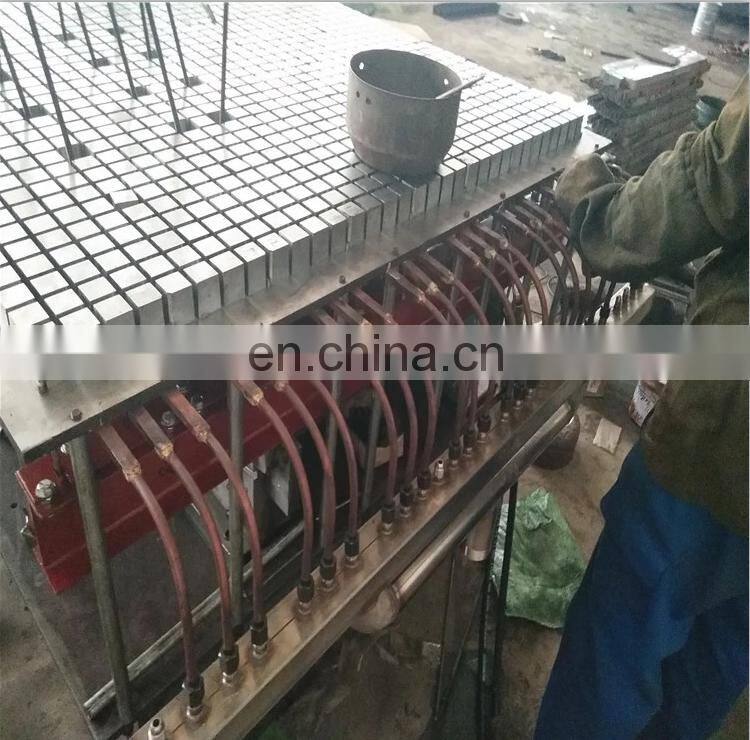

1220 * 4920 * 38mm FRP grating mold is a non-standard model of glass steel grille equipment, as the recent car gradually into the homes of ordinary people, around the car and car beauty shop in the ascendant. FRP grille in the field of caravans to promote, making the glass car grille market really formed, expanding the FRP grating has a new field. We have designed this specification in accordance with this form of equipment, because you can also in the direction of the length of the production of 3660 and 4000 grid plate, so the mold once listed, immediately received the majority of glass steel grille manufacturers of all ages. The following technical information on the equipment described below: to readers.
First, the mold forming surface size: 1220 * 4920 * 40mm, at the same times the production of arbitrary specifications of the card grille. For example: 1.22 * 3.66m or 1.22 * 4m board can be produced.
Second, the module specifications: the upper end: 31.1 * 31.1, the lower end: 33.1 * 33.1, the module height of 40 mm. The size of the entire module deviation is not greater than 0.08 mm. Of course, we can also adjust the size of the module according to customer requirements, here omitted 50 words, you know!
Third, the module material and technology: the module selection of high-quality S45C die steel, after sawing cutting, grinding machine flat head, milling machine open oblique, grinding machine leveling, drilling, sanding chamfering, cloth wheel polishing, plating hard chrome and other 8 processes Into, which is the most attention to the module plating, to strictly accept the seventy-nine forty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The whole process gives us an exclusive tour of another version of a steel art tour.
Fourth, the product size: Center distance: 38.1 * 38.1, height: 38 mm, product ribs thickness, the next 5mm 7 mm. Products in the square meter in the 19.5 kg, material consumption, close porcelain real.
Fifth, the color: According to customer requirements for glass fiber reinforced plastic grating equipment, the general factory color for the general-purpose motor gray.
Six, roof thickness: 14mm, material S45C steel, roof surface milling machine trim, large-scale sanding machine high-speed polishing. Seven, bottom plate thickness: 14mm, material Q235A, large gantry milling machine planning. 8, the trip part: the stroke of the equipment is the central part of the movement of the mold, we use 25 mm thick S45C steel plate, after milling machine precision machining to ensure that the size of strict fit, combined with eight 45 mm square steel as the support, to ensure that the whole Stroke advance and retreat, smooth operation. Cylinder size diameter 110mm, length 350mm, cylinder pillow selection of wide Q235A forged steel, super pressure.
Nine, mold overall appearance: wide 1300 * long 5730 * high 850 mm. The height of the mold can be adjusted according to the grille production process selected by the customer. For example, choose a single pull the yarn customers; our mold height is generally not more than 750 mm.
Second, the module specifications: the upper end: 31.1 * 31.1, the lower end: 33.1 * 33.1, the module height of 40 mm. The size of the entire module deviation is not greater than 0.08 mm. Of course, we can also adjust the size of the module according to customer requirements, here omitted 50 words, you know!
Third, the module material and technology: the module selection of high-quality S45C die steel, after sawing cutting, grinding machine flat head, milling machine open oblique, grinding machine leveling, drilling, sanding chamfering, cloth wheel polishing, plating hard chrome and other 8 processes Into, which is the most attention to the module plating, to strictly accept the seventy-nine forty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The whole process gives us an exclusive tour of another version of a steel art tour.
Fourth, the product size: Center distance: 38.1 * 38.1, height: 38 mm, product ribs thickness, the next 5mm 7 mm. Products in the square meter in the 19.5 kg, material consumption, close porcelain real.
Fifth, the color: According to customer requirements for glass fiber reinforced plastic grating equipment, the general factory color for the general-purpose motor gray.
Six, roof thickness: 14mm, material S45C steel, roof surface milling machine trim, large-scale sanding machine high-speed polishing. Seven, bottom plate thickness: 14mm, material Q235A, large gantry milling machine planning. 8, the trip part: the stroke of the equipment is the central part of the movement of the mold, we use 25 mm thick S45C steel plate, after milling machine precision machining to ensure that the size of strict fit, combined with eight 45 mm square steel as the support, to ensure that the whole Stroke advance and retreat, smooth operation. Cylinder size diameter 110mm, length 350mm, cylinder pillow selection of wide Q235A forged steel, super pressure.
Nine, mold overall appearance: wide 1300 * long 5730 * high 850 mm. The height of the mold can be adjusted according to the grille production process selected by the customer. For example, choose a single pull the yarn customers; our mold height is generally not more than 750 mm.

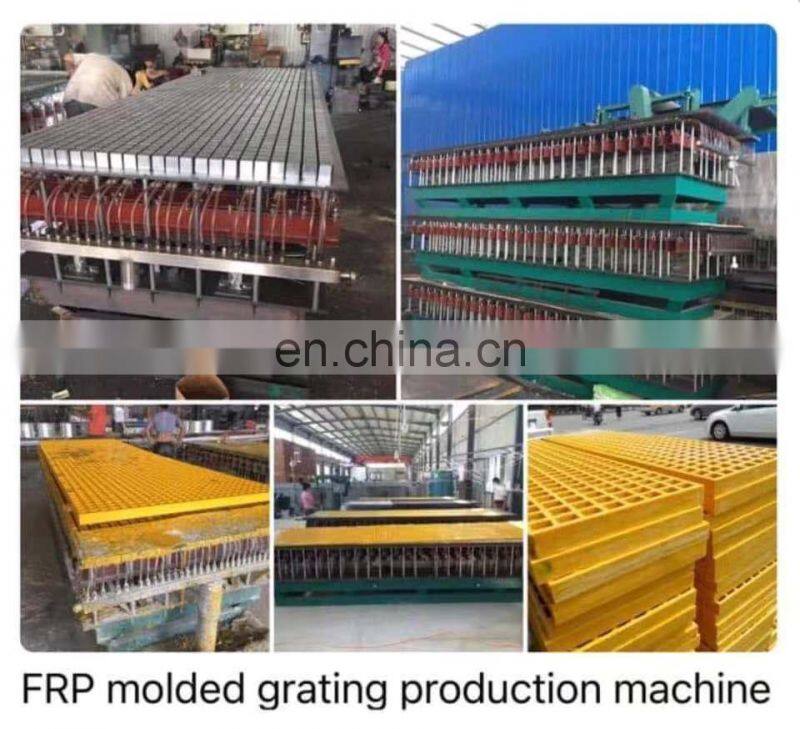

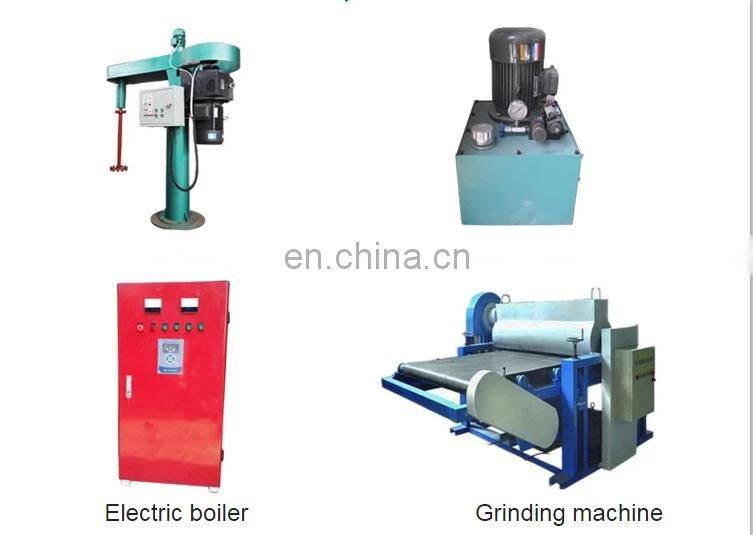

Our FRP molded grating production line is made of following devices:

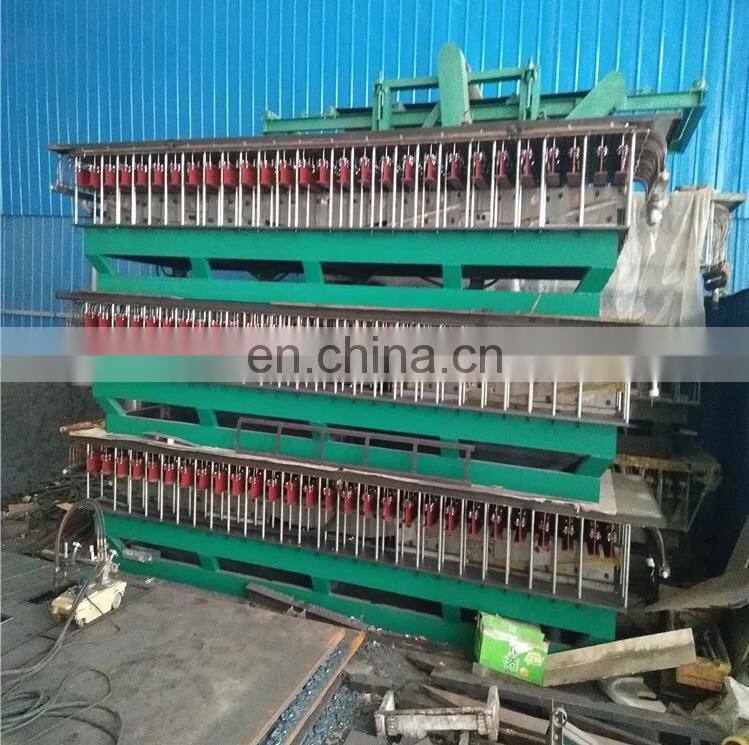

1) FRP Molded Grating Machine

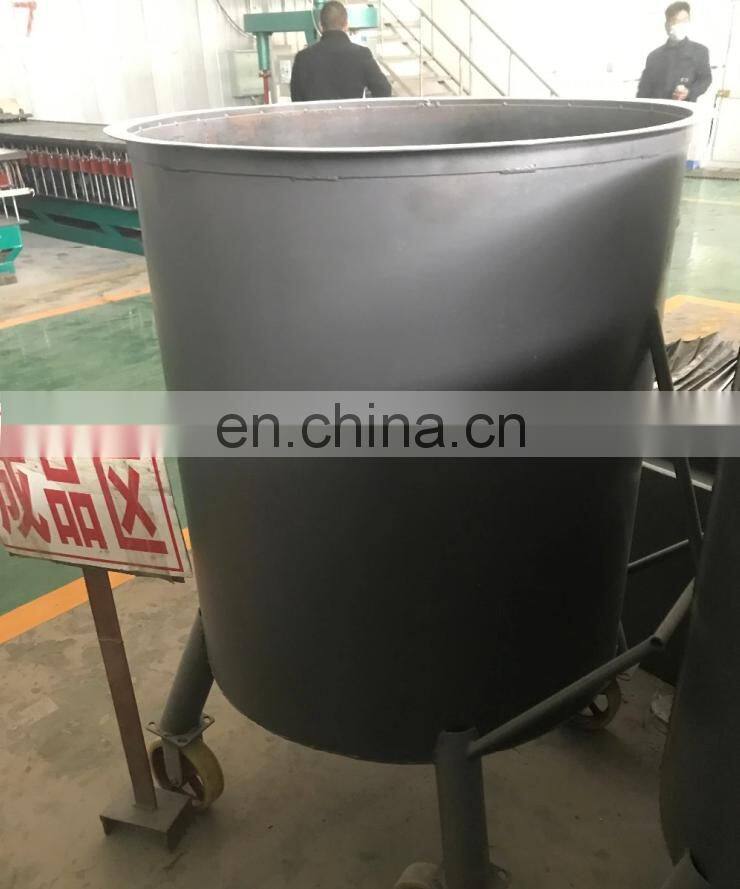

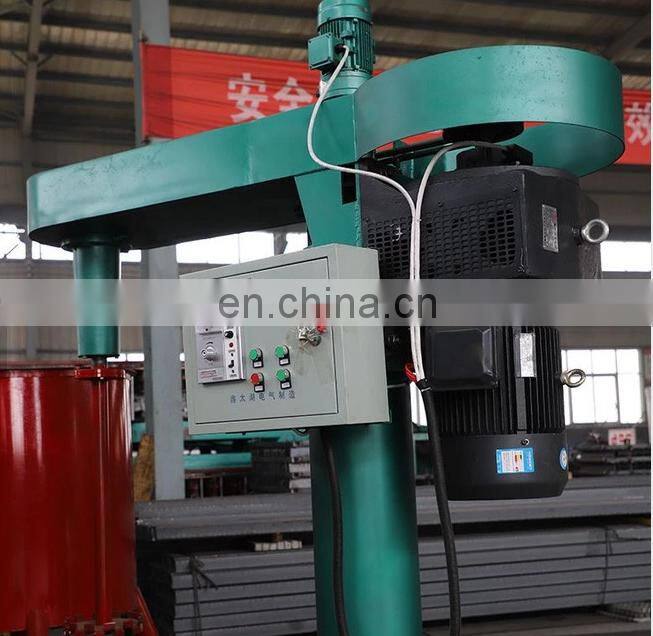

2) Mixer Storage tank
4) Hydraulic pump
5) Grinding machine
6) Water-circulating pump
7) SS hot water tank
8) Air source heating pump
9) Cooling tower
We provide full set of FRP grating machines together with technology of producing if required.
Main Features of FRP Grating Production Line
1) Working principle: hydraulic lift;
2) Fast heating, strong operability;
3) Convenient installation;
4) 2kw moter, 10t hydraulic force;
5) Water heating or electric heating,automatic demould;
6) Easy operation,installation,and maintemance.
Specification
No. |
Mesh Size (mm) |
Grating Panel Size L*W*H (mm) |
Module (mm) |
1 |
38*38 |
1220*3660*38 |
38.5-41 |
2 |
38*38 |
1220*3660*30 |
30.5-32 |
3 |
38*38 |
1220*3660*25 |
25.5-27 |
4 |
50*50 |
1220*3660*50 |
50.5-52 |
5 |
38*38 |
1000*4038*38 |
38.5-41 |
6 |
38*38 |
1000*4038*25 |
25.5-27 |
Note: The size can be customized according to customer requirements.
Product Details

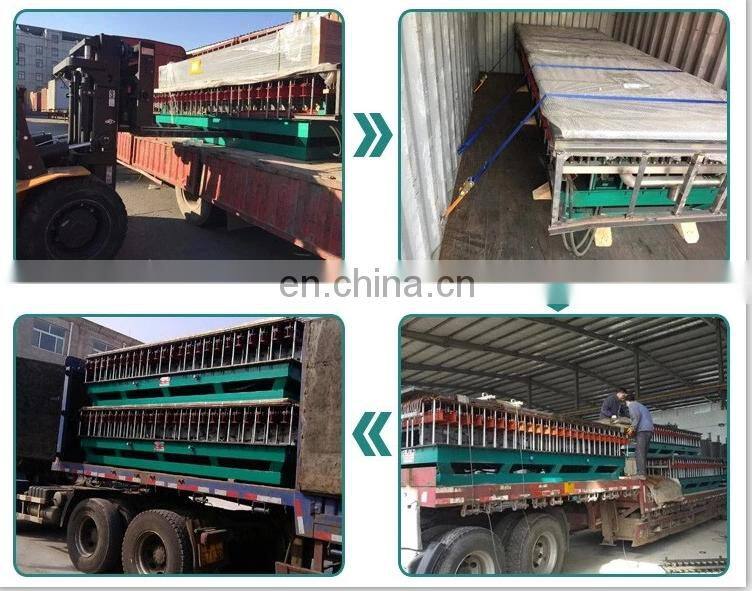

Packing & Delivery
Company Profile
Hengshui Jiubo Composite Co., Ltd. (our factory) is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology, we have two international sales branches - Hengshui Aoliande Trading Co., Ltd. (our trade sales company) and Hengshui Gains Trade Co., Ltd, through the continuous development and introduction of professionality and technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 management system certification, now we have 300 staff, annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Egypt, Chile, Panama, Spain, etc., and won the support and trust from new & old customers.
Major products:
FRP vessel and chemical
Equipment in sets;
FRP high, medium & low pressure pipe
FRP septic tank
FRP water tank & stainless steel water tank
FRP molded & pultruded products
Electrolytic cell S/F, F/F oil storage tank
Whole set of FRP production machines
Hengshui Aoliande Trade Co.,Ltd. not only have ability to sell & supply products, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc., service.
Main application:
Urban water supply and drainage
Desalination of sea water
Chemical industry
Metallurygy Brewing
Electric power
Oil storing
Sewage treatment
Building Municipal works
Highway facilities
Major products:
FRP vessel and chemical
Equipment in sets;
FRP high, medium & low pressure pipe
FRP septic tank
FRP water tank & stainless steel water tank
FRP molded & pultruded products
Electrolytic cell S/F, F/F oil storage tank
Whole set of FRP production machines
Hengshui Aoliande Trade Co.,Ltd. not only have ability to sell & supply products, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc., service.
Main application:
Urban water supply and drainage
Desalination of sea water
Chemical industry
Metallurygy Brewing
Electric power
Oil storing
Sewage treatment
Building Municipal works
Highway facilities
Our customers and certification
FAQ
1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost 10 years, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q: How about the Delivery time?
A: Normally, 10-15 days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
4. Q: What is about the payment terms.
A: Basically, the payment terms are paypal, T/T, L/C at sight. Western Union, Alipay.
5. Q: Can you do OEM for me?
A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.
A: We are both manufacturer and trading company. We have our own factory for almost 10 years, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q: How about the Delivery time?
A: Normally, 10-15 days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
4. Q: What is about the payment terms.
A: Basically, the payment terms are paypal, T/T, L/C at sight. Western Union, Alipay.
5. Q: Can you do OEM for me?
A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.
