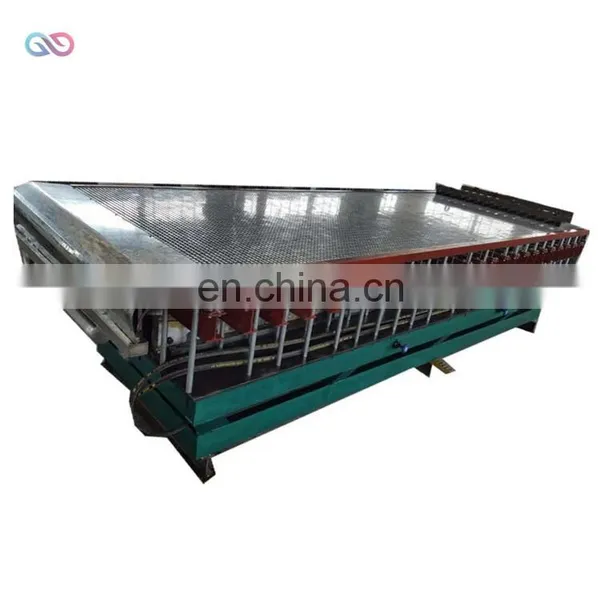

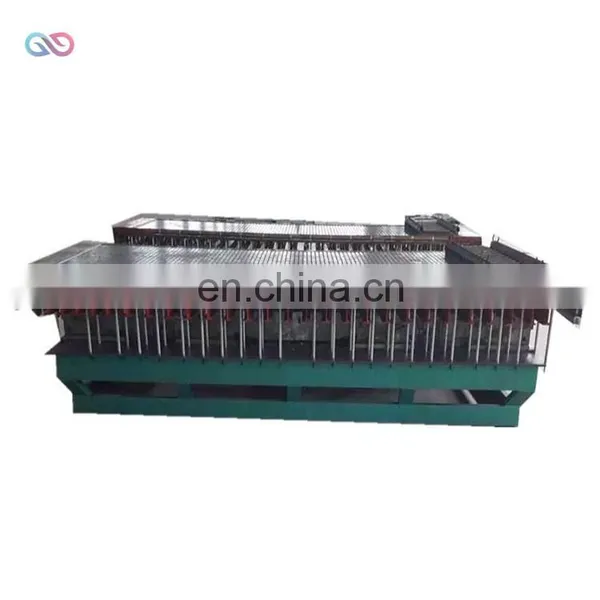

FRP Grating Production Line Fiberglass Grating Machine

Name: FRP Grating Production Line Fiberglass Grating Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

1220 * 4920 * 38mm FRP grating mold is a non-standard model of glass steel grille equipment, as the recent car gradually into the homes of ordinary people, around the car and car beauty shop in the ascendant. FRP grille in the field of caravans to promote, making the glass car grille market really formed, expanding the FRP grating has a new field. We have designed this specification in accordance with this form of equipment, because you can also in the direction of the length of the production of 3660 and 4000 grid plate, so the mold once listed, immediately received the majority of glass steel grille manufacturers of all ages. The following technical information on the equipment described below: to readers.

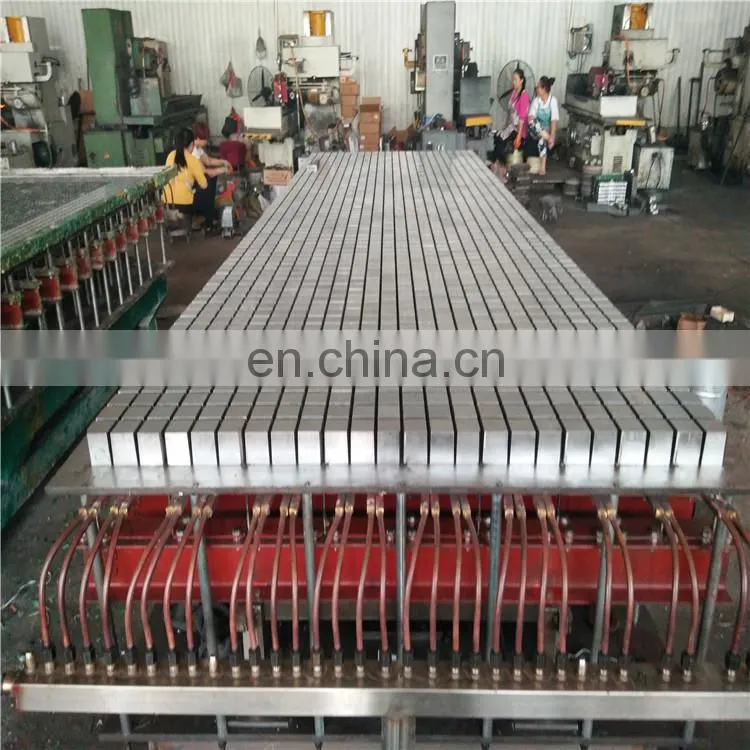

First, the mold forming surface size: 1220 * 4920 * 40mm, at the same times the production of arbitrary specifications of the card grille. For example: 1.22 * 3.66m or 1.22 * 4m board can be produced.

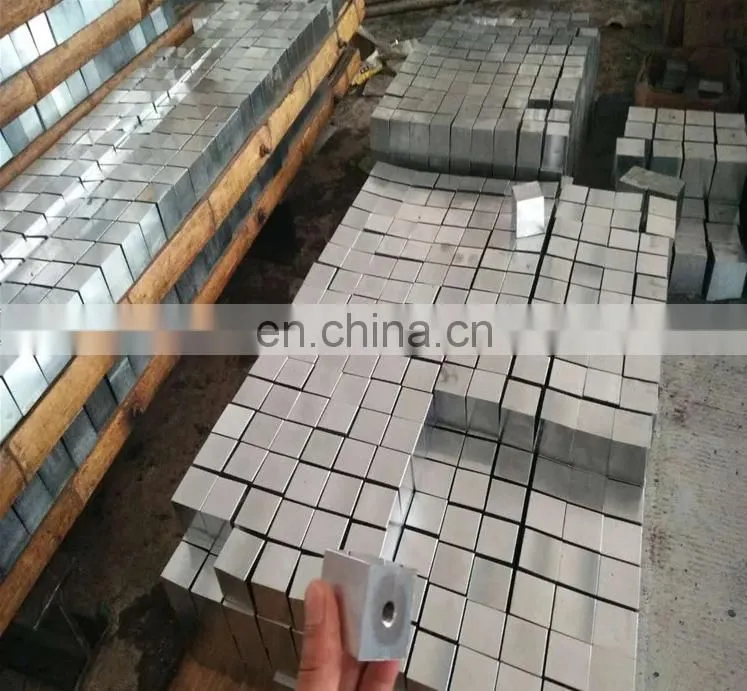

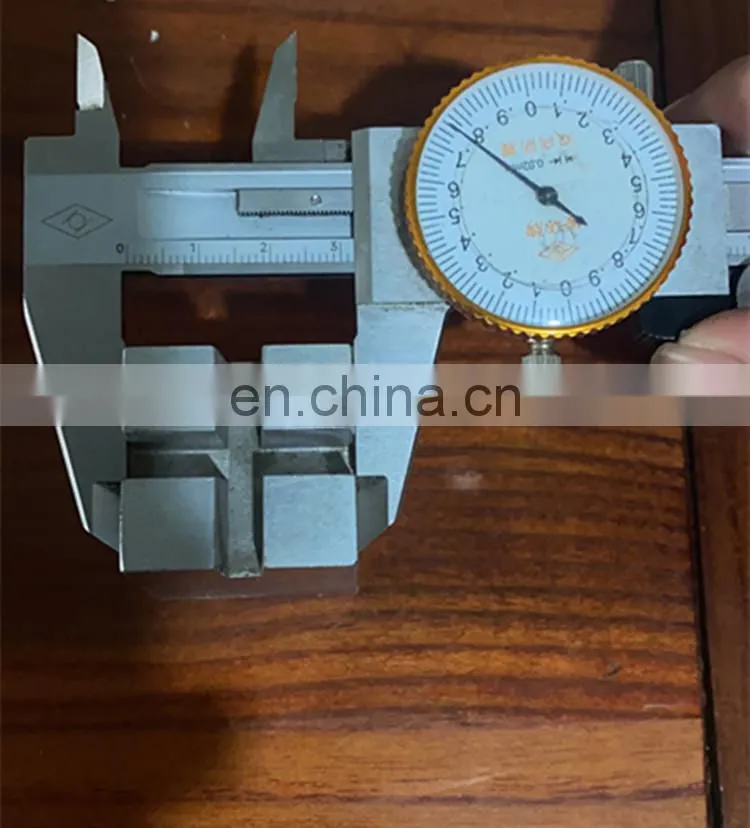

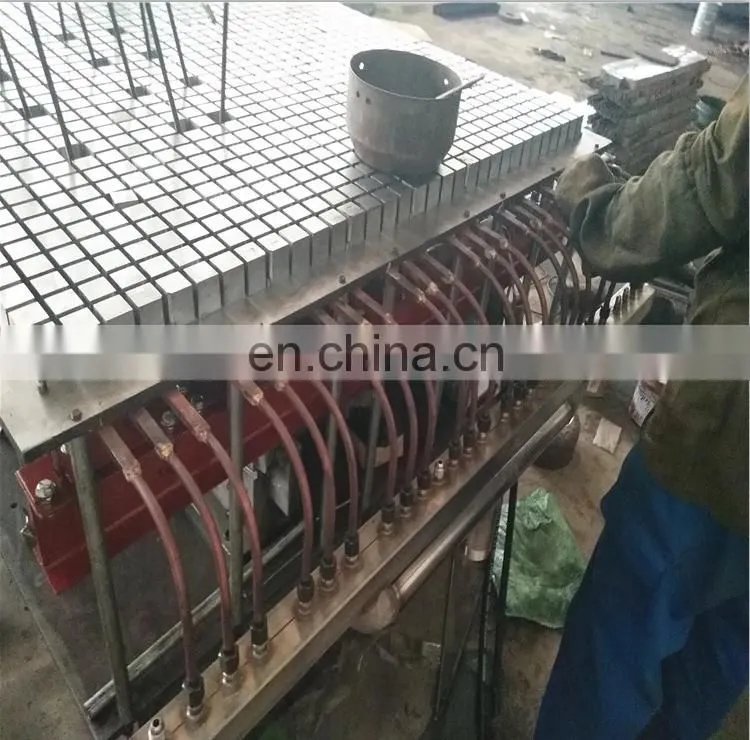

Second, the module specifications: the upper end: 31.1 * 31.1, the lower end: 33.1 * 33.1, the module height of 40 mm. The size of the entire module deviation is not greater than 0.08 mm. Of course, we can also adjust the size of the module according to customer requirements, here omitted 50 words, you know!

Third, the module material and technology: the module selection of high-quality S45C die steel, after sawing cutting, grinding machine flat head, milling machine open oblique, grinding machine leveling, drilling, sanding chamfering, cloth wheel polishing, plating hard chrome and other 8 processes Into, which is the most attention to the module plating, to strictly accept the seventy-nine forty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The whole process gives us an exclusive tour of another version of a steel art tour.

Fourth, the product size: Center distance: 38.1 * 38.1, height: 38 mm, product ribs thickness, the next 5mm 7 mm. Products in
the square meter in the 19.5 kg, material consumption, close porcelain real.

Fifth, the color: According to customer requirements for glass fiber reinforced plastic grating equipment, the general factory color for the general-purpose motor gray.

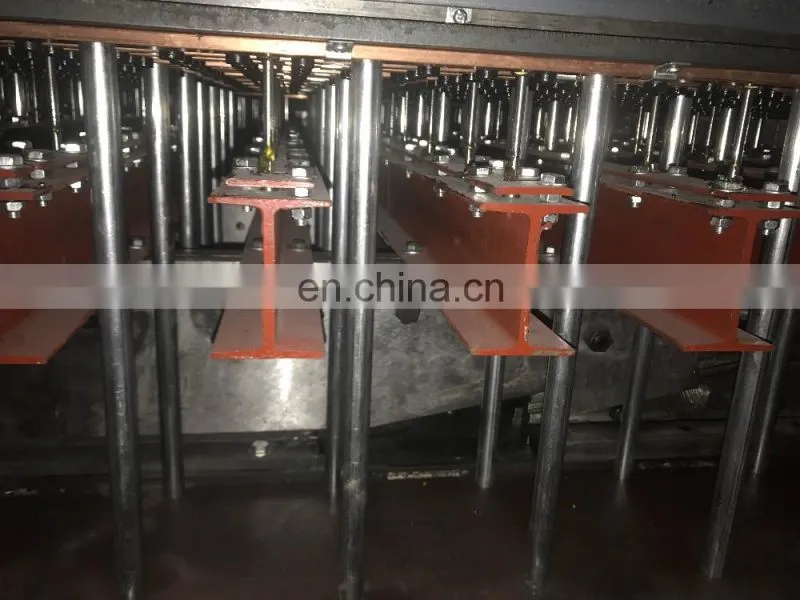

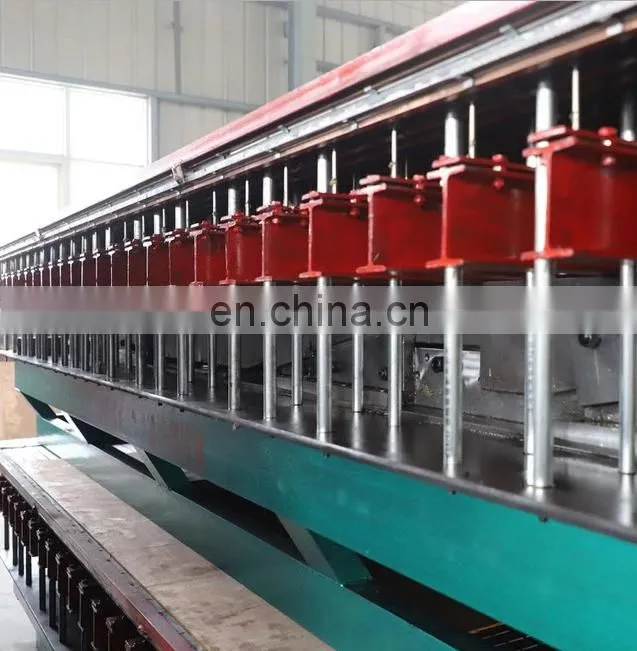

Six, roof thickness: 14mm, material S45C steel, roof surface milling machine trim, large-scale sanding machine high-speed polishing. Seven, bottom plate thickness: 14mm, material Q235A, large gantry milling machine planning. 8, the trip part: the stroke of the equipment is the central part of the movement of the mold, we use 25 mm thick S45C steel plate, after milling machine precision machining to ensure that the size of strict fit, combined with eight 45 mm square steel as the support, to ensure that the whole Stroke advance and retreat, smooth operation. Cylinder size diameter 110mm, length 350mm, cylinder pillow selection of wide Q235A forged steel, super pressure.

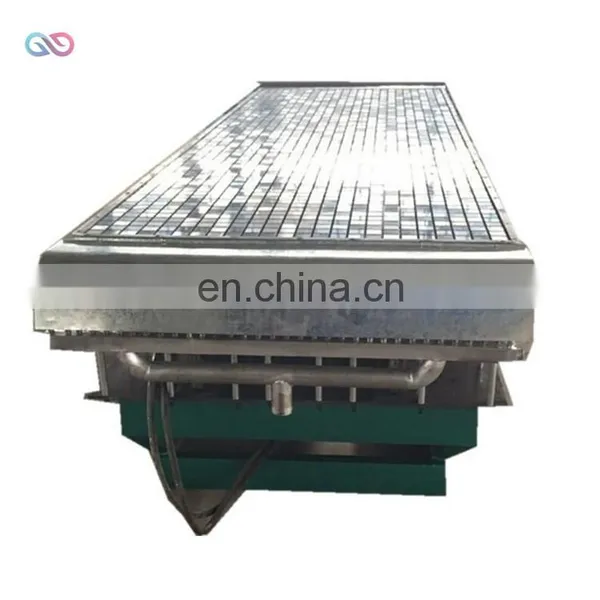

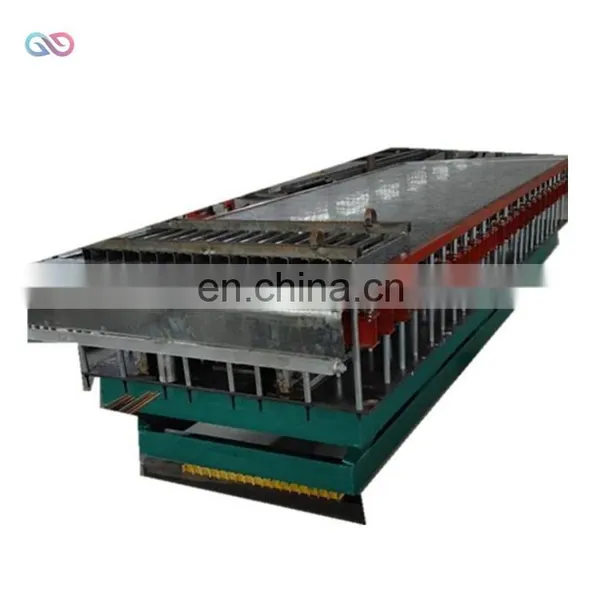

Nine, mold overall appearance: wide 1300 * long 5730 * high 850 mm. The height of the mold can be adjusted according to the grille production process selected by the customer. For example, choose a single pull the yarn customers; our mold height is generally not more than 750 mm.

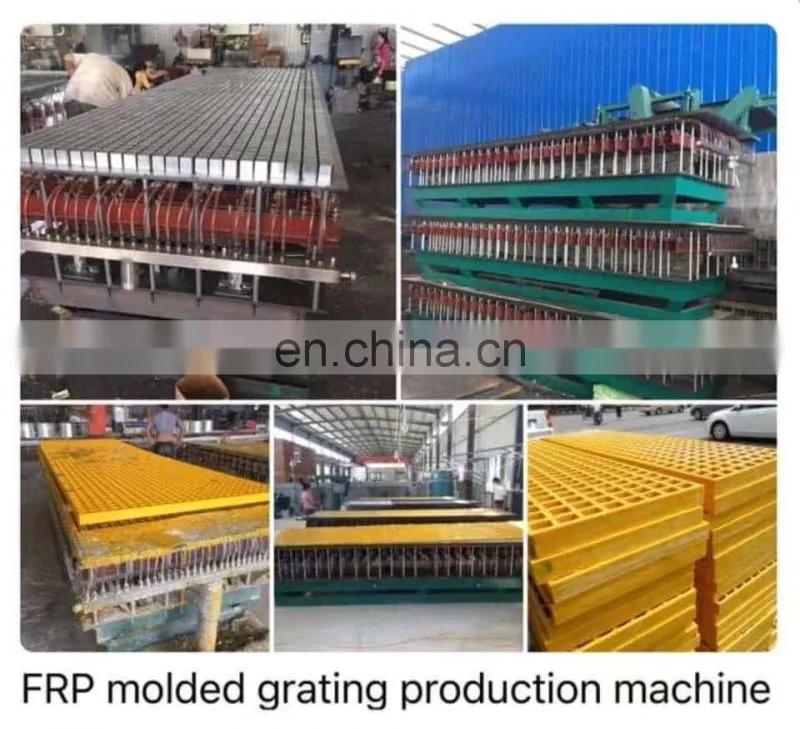

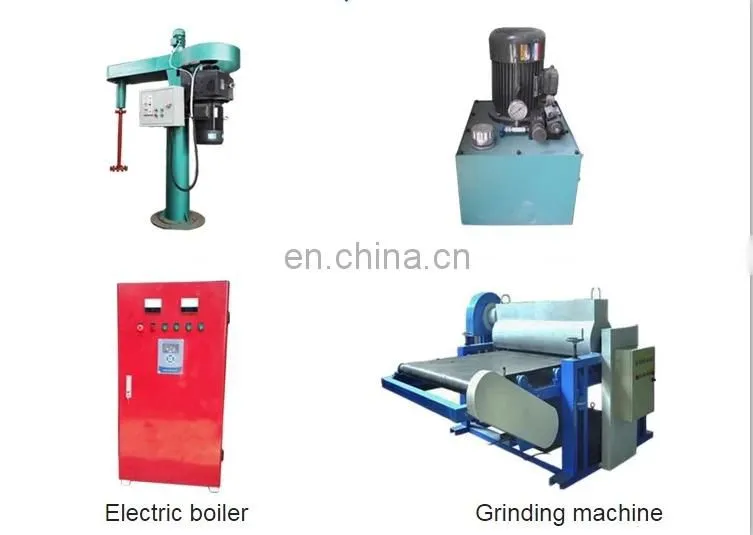

Our FRP molded grating production line is made of following devices:

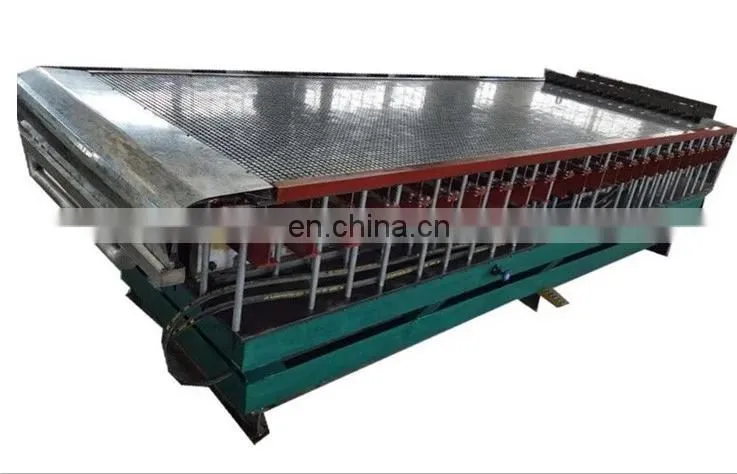

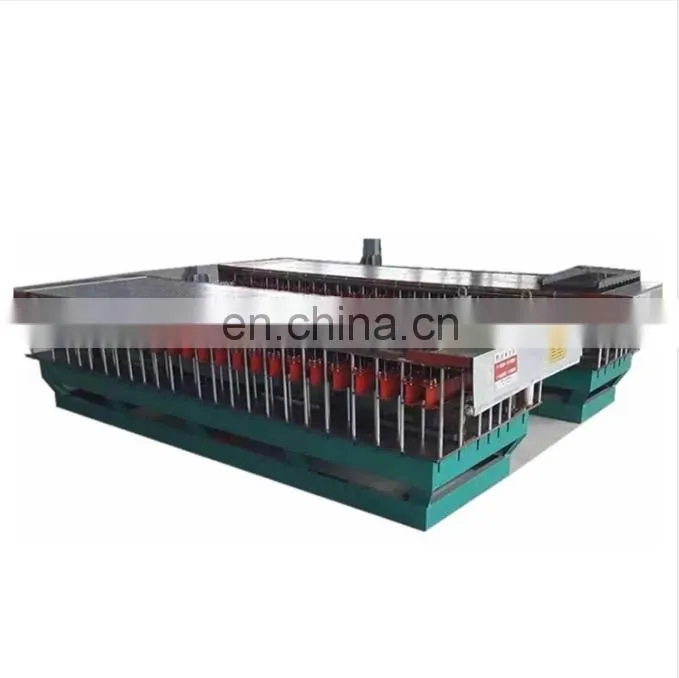

1) FRP Molded Grating Machine

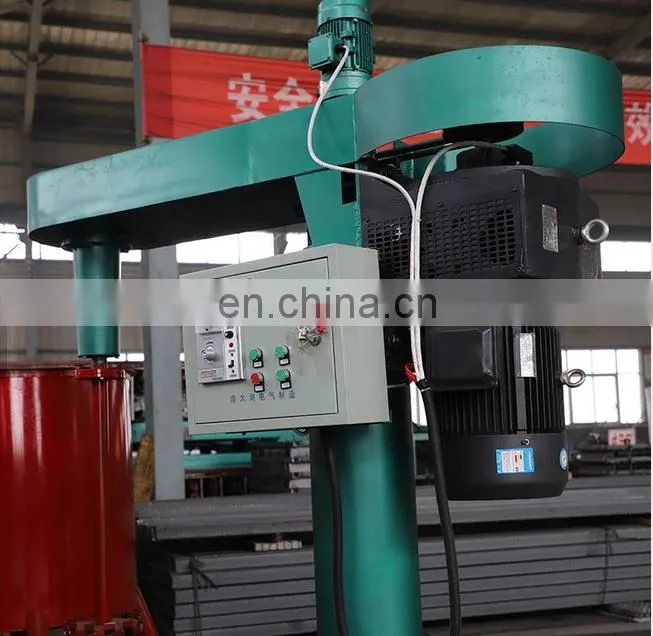

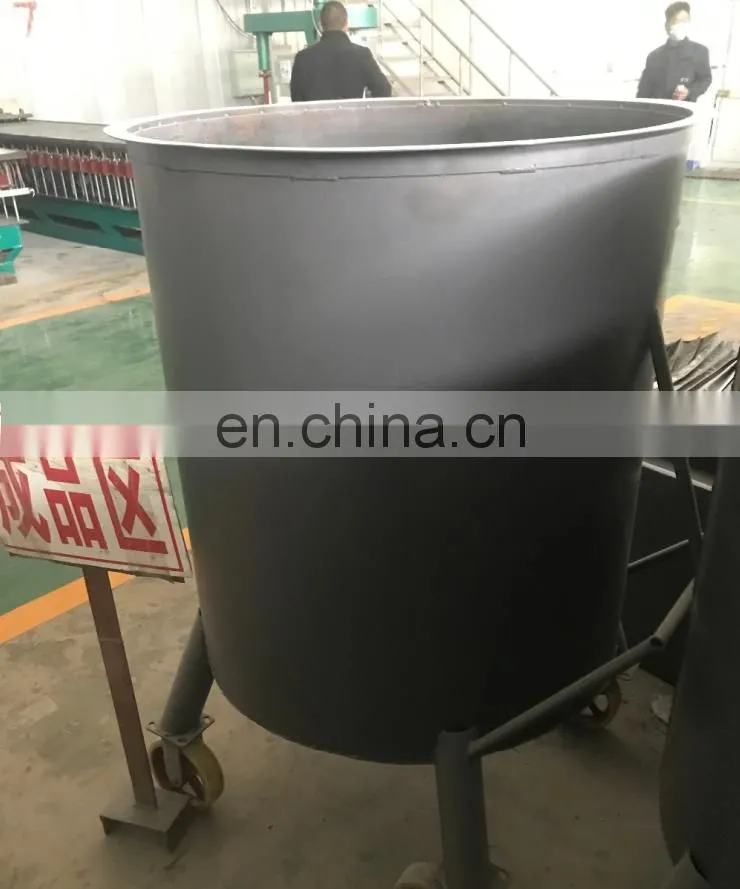

2) Mixer Storage tank
4) Hydraulic pump
5) Grinding machine
6) Water-circulating pump
7) SS hot water tank
8) Air source heating pump
9) Cooling tower
We provide full set of FRP grating machines together with technology of producing if required.

Main Features of FRP Grating Production Line：

1) Working principle: hydraulic lift;
2) Fast heating, strong operability;
3) Convenient installation;
4) 2kw moter, 10t hydraulic force;
5) Water heating or electric heating,automatic demould;
6) Easy operation, installation, and maintemance

Specification

No.	Mesh Size (mm)	Grating Panel Size LWH (mm)	Module (mm)
1	38*38	1220366038	38.5-41
2	38*38	1220366030	30.5-32
3	38*38	1220366025	25.5-27
4	50*50	1220366050	50.5-52
5	38*38	1000403838	38.5-41
6	38*38	1000403825	25.5-27

Note: The size can be customized according to customer requirements

Product Details

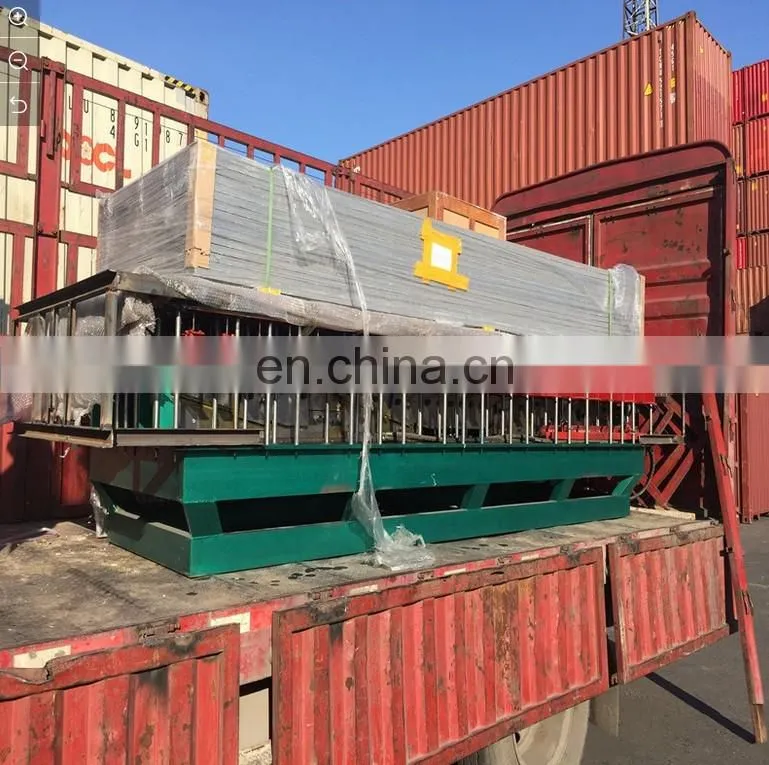

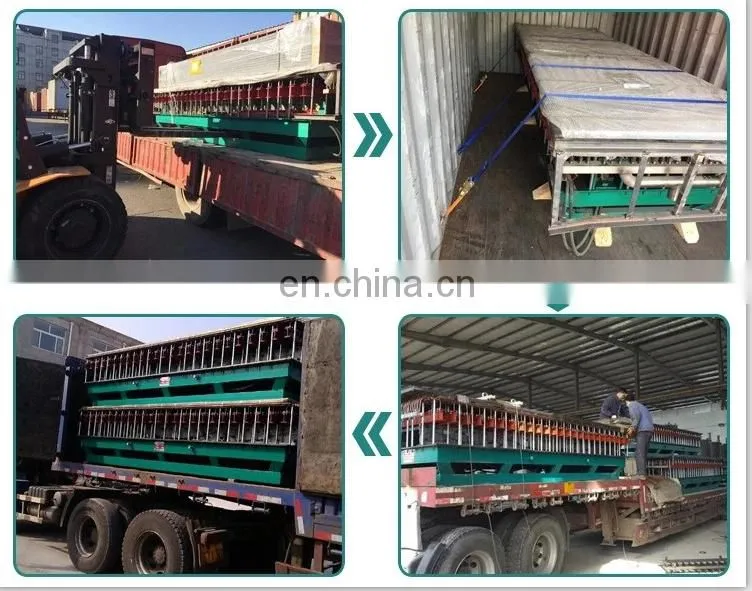

Packing & Delivery
