We are a professional dry ice machine manufacturer since 1993 who comes from gas equipment designing and manufacturing industry.
Ms. Vicky Liu
M/W: 008615928354487
Ziyang Sida Cryogenic Machine Co.,Ltd
Address: No.320, Waihuan Road, Yanjiang District, Ziyang City, Sichuan Province, China
Our products:
1. Dry ice pelletizer
Small, medium or big dry ice pellet making machine capacity 30kg/h-2000kg/h
2. Dry ice block maker machine
Small, medium or large dry ice block production machine capacity 100kg/h-2000kg/h, the dry ice block size can be customized
3. Full auto dry ice production line
Mainly consist of dry ice pellet maker, dry ice block reformer machine, dry ice conveyor and dry ice packing machine
4. Small dry ice machine
5. Dry ice cleaning blasting machine
6. CO2 gas recovery unit
7. Liquid CO2 and dry ice related machine and equipment

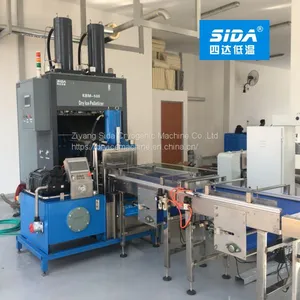

Generally the output of a basic dry ice production line is 500kg/h or 1000kg/h. The main components of the dry ice production line are the dry ice pellet machine, dry ice reformer machine and dry ice packaging line.
1. Dry ice pelletizer machine, output 500kg/h or 1000kg/h, dry ice size Φ3-19mm
Product name: KBM-1000 double head dry ice pellet making machine
Raw materials: low temperature LCO2 (water content less than 20ppm, pressure less than 2.5MPa)
Dry ice output: 1000-1100kg/h
Dry ice size: Φ3-19mm
Dry ice density: ≥1500kg/m3
Dry ice conversion rate: ≥42%
Motor power: 22kw, three-phase five-wire 380V/50Hz
Operation: fully automatic hydraulic operation, can continuously run 24 hours a day
Oil tank volume: 350 L
Machine size: main machine (LWH) 1600X1400X1470mm + oil cylinder extension height 885mm
Machine weight: 3500kg
2. Dry ice briquetting machine (dry ice reformer machine), output 500kg/h or 1000kg/h, dry ice block size is 125X105X25-60mm or required size, 500g/pc, 1kg/pc or required weight
Product name: YKJ6-125X105/1000 dry ice reformer machine
Raw materials: Φ3m crushed granular dry ice
Dry ice output: ≥1000kg/h
Dry ice size: 125X105X(20-60)mm, dry ice thickness can be adjusted, dry ice block weight deviation ±10g, thickness error
Dry ice density: >1450kg/m3
Operation: fully automatic hydraulic operation, can continuously run 24 hours a day
Motor power: 7.5kw+0.75kw, three-phase five-wire 380V/50Hz
Oil tank volume: 150L
Machine weight: 1400kg
Overall dimensions (LWH): 1750X1500X1720mm
3. Dry ice packaging line, consisting of dry ice sorting conveyor, dry ice packaging machine and dry ice tidying machine.
Product name: BZX-125X105/1000 fully automatic dry ice packaging line
Power: total power 4kw, power supply single-phase two-wire 220V, 50Hz
Packaging speed: 20-80 packs/min
Film width: 320mm-360mm
Packaging height: 15-60mm
Film roll diameter: about 300mm
Main features
1) The dry ice pelletizer machine has vertical oil cylinder, and the cylinder moves up and down, eliminating the defect of pulling the cylinder caused by the eccentric load of the horizontal dry ice machine.
2) The floor space is very small, and the mold can be replaced standing on the ground and there is a lifting trolley, which is labor-saving and convenient. For other models in the industry, the staff need to climb and stand on the 2-meter-high equipment and need to hold the mold manually, which is very dangerous.
3) It has double-sided dry ice discharge ports. The side discharge can be used to connect the pellets to the dry ice box separately, and the front discharge pellets directly enter the hopper of the dry ice reformer machine. The feeding is reliable, eliminating the defects of the industry that the pellet machine is usually set up very high, and the dry ice flows into the reformer through a long chute, which brings about the difficulty and danger of operation and maintenance.
4) The dry ice pellet machine and briquetting machine are all driven by imported oil pumps, which are highly reliable, energy-saving, and save hydraulic oil.
5) The weight of the dry ice block can be adjusted steplessly, and the weight error of each dry ice block is within 10g.
