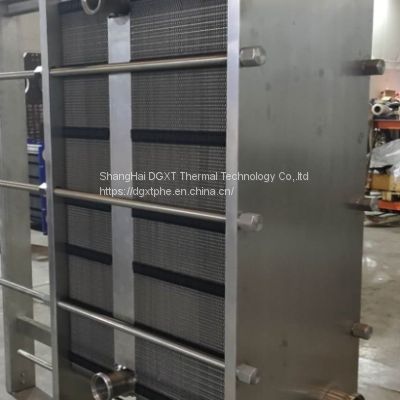

Help CenterChina Beer Milk and Juice Plate Heat Exchanger,Sanitary Stainless Steel 304 316L Plate Heat Exchanger
Related Products
-
MX25 Equivalent Heat Transfer Plate Heat ExchangerUS$ 1000 - 10000MOQ: 1 Piece -
TS20M Gasket Plate Heat Exchanger Equivalent DGXT Steam Water Carbon Epoxy Painted Frame Heat ExchangerUS$ 1000 - 10000MOQ: 1 Piece
-
Plate Heat ExchangerUS$ 1000 - 100000MOQ: 1 Piece
-
Plate and Frame Heat ExchangerUS$ 1000 - 4000MOQ: 1 Piece
-
NBR Gasket Ti Plate Heat Exchanger For Seawater Heating and CoolerUS$ 1000 - 4000MOQ: 1 Piece

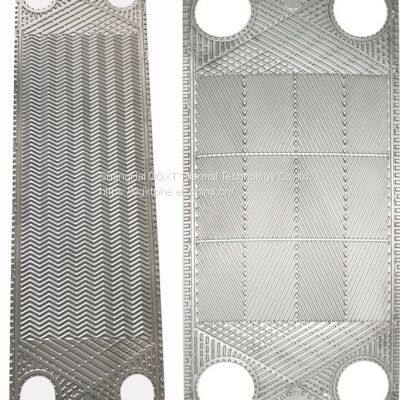

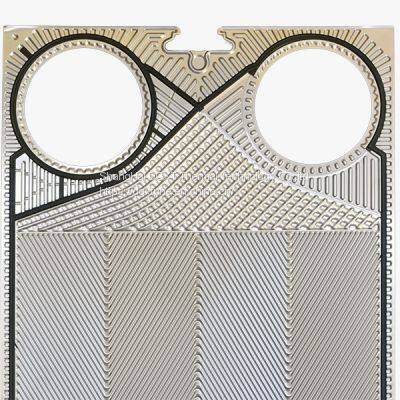

Plates and Gaskets have many kinds of models for your choose.
DGXT is ourself brand,we are specilized in Industry Gasket Plate heat exchanger manuturing more than 10 years.
We also have AT series,AD series,SF series etc.
| Model | Connections | Flow Rate Max | Width | Height | Max surface |
| mm | M³/H | mm | mm | ㎡ | |
| AT25-M | 25 | 8 | 140 | 380 | 1 |
| AT25-S | 25 | 8 | 200 | 621 | 1 |
| AT32-M | 32 | 14 | 180 | 490 | 3 |
| AT32-S | 32 | 14 | 200 | 896 | 5 |
| AT50-M | 50 | 45 | 320 | 930 | 37 |
| AT50-S | 50 | 45 | 300 | 994 | 40 |
| AT65-S | 65 | 72 | 430 | 1215 | 55 |
| AT100-M | 100 | 190 | 460 | 1084 | 100 |
| AT100-S | 100 | 190 | 480 | 1160 | 100 |
| AT100-S1 | 100 | 190 | 480 | 1755 | 200 |
| AT150-M | 150 | 390 | 650 | 1940 | 370 |
| AT150-S | 150 | 390 | 640 | 1450 | 370 |
| AT150-S1 | 150 | 390 | 640 | 1852 | 420 |
| AT200-M | 200 | 600 | 780 | 2260 | 410 |
| AT200-S | 200 | 650 | 790 | 1400 | 425 |
| AT200-S1 | 200 | 650 | 750 | 1700 | 425 |
| AT250-S | 250 | 650 | 750 | 2098 | 425 |
| AT250-S1 | 250 | 650 | 750 | 2500 | 425 |
| AT250-M | 250 | 900 | 920 | 2900 | 100 |
| AT300-M | 300 | 1400 | 1150 | 3100 | 1400 |
| AT300-S | 300 | 1400 | 970 | 1766 | 1400 |
| AT300-S1 | 300 | 1400 | 970 | 2176 | 1400 |
| AT350-S | 350 | 1400 | 1030 | 2806 | 1400 |
| AT350-S1 | 350 | 1400 | 1030 | 2176 | 1400 |
| AT500-S | 500 | 1800 | 1370 | 3560 | 1800 |
Commonly Features;
| Plate And Gasket Material | ||
| 1.Plate material | 2.Gaster material | |
| *Stainless steel AISI304(14301) | *NBR,H-NBR | |
| *Stainless steel AISI316(14401) | *EPDM,EPDM-NT,EPDM-HT | |
| *Titanium and titanium palladium (Ti, ti-pd) | *CR | |
| *HASTELLOY alloy (C276) | *Viton | |
| *Special Steel 6Mo(254SMO) | ||
| *20Cr,18Ni,, nickel (Ni)etc | ||
| Frame And Connection Material | ||
| 1.Frame material | 2.Liner material | |
| *Stainless AISI304/AISI316 | *Stanard:EPDM/NBR/stainless AISI316 | |
| *Carton Steel Q235B | *Special Material 254SMO,C276,Ti | |
| Application | ||
| Application | ||
| *Petroleum industry | *Power station | *Solar photovoltaic |
| *Food industry | *Oil processing | *Metallurgy industry |
| *Chemical industry | *Marine and engine | *HAVC |
| *electronic industry | *Papermaking industry | *Textile industry |
| Plate material | Suitable for fluid | |
| Stainless（AISI304,AISI316）： | Clean water, river water, cooking oil, mineral oil | |
| Ti,Ti-Pd： | Sea water, salt water, salt | |
| 20Cr,18Ni,6Mo（254SMO）： | Dilute sulfuric acid, dilute salinized water solution, inorganic water solution | |
| Ni： | High temperature, high viscosity caustic soda | |
| HASTELLOY： | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+100℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |
Features: Compact structure, small area, good heat transfer effect, small pressure drop, a variety of fillers, good corrosion resistance, especially in the treatment of foamy materials and vacuum operation, has its unique advantages.
Advantages: high heat transfer efficiency, large logarithmic temperature difference, light weight, small area, convenient cleaning, and easy to change the heat area or process combination, suitable for heat transfer in multiple media.
Application: Widely used in the petroleum industry, power station, solar photovoltaic, electronics industry, papermaking industry, textile industry, chemical industry, marine and engine, HVAC, food industry, edible oil processing, metallurgical industry and so on.
Role: Heat exchanger is a device that transmits heat from a hot fluid to a cold fluid, also known as a heat exchanger. Its main function is to guarantee the specific temperature required by the process for the medium.
It can transfer heat between materials between two or more fluids at different temperatures, transfer heat from a higher temperature fluid to a lower temperature fluid, and bring the fluid temperature to meet the flow specifications to meet the needs of the process conditions., At the same time, heat exchanger is also one of the main equipment to improve energy efficiency.
