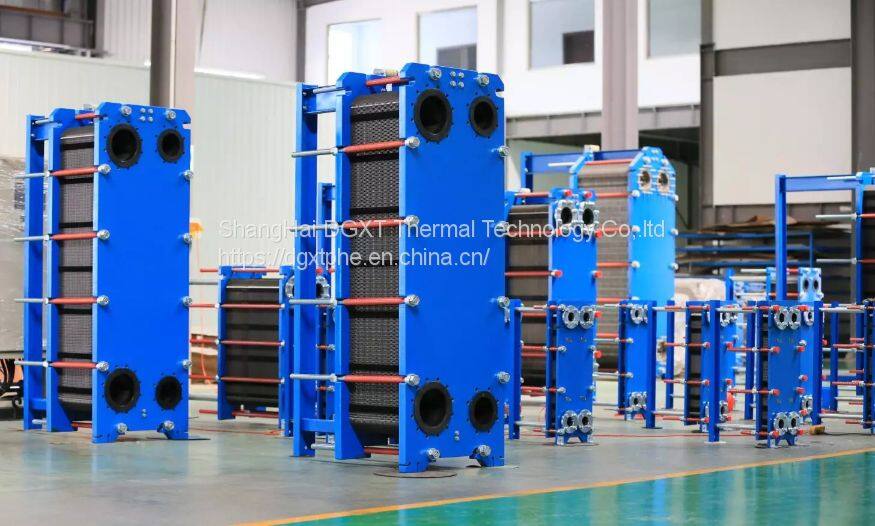

Plate and frame heat exchanger
We supply all kinds of plate heat exchangers, spare parts as well as PHE units. Our service covers the heating, cooling and recovery of waste heat areas in industrial users. Our mainly products include plate heat exchangers, plate heaters, air coolers, wide-runner plate heat exchangers, Titanium heat exchangers, Brazed plate heat exchangers, heat exchanger units as well as waste heat recovery devices.Now our products has been widely used in many fields such as power, metallurgy, chemistry, food, beverage, sugar, paper, textile, ships, HAVC and cooling etc. We wish to built a long and good relationship with each customers,Our customers spread out all over the world, such as America, England, India and so on.
DGXT plate heat exchanger Technical parameters
Product Model |
Interface caliber |
LENGTH A mm |
LENGTH B mm |
PLATE PACK THICKNESS C mm |
Longitudinal hole spacing D mm |
Horizontal hole spacing E mm |
Maximum flow
m3/h |
|
|
|||||||
A3D |
DN32 |
480 |
180 |
N*(2. 5+X) |
357 |
60 |
15 |
A6D |
DN50 |
920 |
320 |
N* (3. 0+X) |
640 |
140 |
36 |
A6F |
DN65 |
704 |
400 |
N* (4. 0+X) |
380 |
203 |
60 |
A8D |
DN80 |
890 |
400 |
N* (3. 0+X) |
606 |
196 |
90 |
A10D |
DN100 |
1084 |
470 |
N* (4. 0+X) |
719 |
225 |
145 |
A15D |
DN150 |
1815 |
610 |
N* (4. 0+X) |
1294 |
298 |
320 |
A20D |
DN200 |
2105 |
780 |
N* (4. 0+X) |
1478 |
353 |
570 |
A25D |
DN250 |
2595 |
920 |
N* (4. 0+X) |
1939 |
439 |
890 |
|
DN300 |
2882 |
1170 |
N*(3. 3+X) |
1842 |
596 |
1300 |
Material, gasket and applicable medium of detachable plate heat ex changer
Stainless（AISI304,AISI316） |
Clean water, river water, cooking oil, mineral oil |
|
Stainless（AISI304,AISI316） |
Clean water, river water, cooking oil, mineral oil |
|
Ti,Ti-Pd： |
Sea water, salt water, salt |
|
20Cr,18Ni,6Mo（254SMO） |
Dilute sulfuric acid, dilute salinized water solution, inorganic water solution |
|
Ni |
High temperature, high viscosity caustic soda |
|
HASTELLOY |
Concentrated sulfuric acid, hydrochloride acid, phosphoric acid |
|

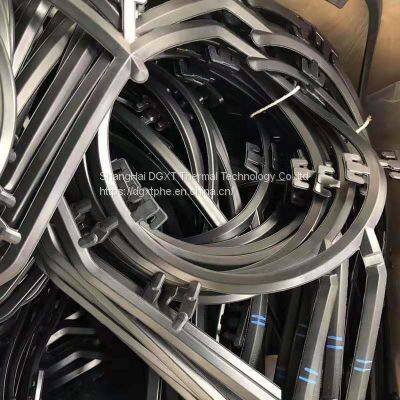

Sealing material |
adapt temperature |
Suitable for fluid |
NBR |
-15~+120℃ |
Water, sea water, cooking oil, salt water |
HNBR |
-15~+140℃ |
High temperature mineral oil, high temperature water |
EPDM |
-25~+170℃ |
Hot water, water vapor, acid, alkali |
Viton |
-5~+130℃ |
Acid, alkali, fluid |
Standard design:
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place.The plate pack is assembled between a fixed frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the
interplate channel and directs the fluids into alternate channels.The number of plates is determined by the flow rate, perties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure.
The plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column.
Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
Products&Services of DGXT
Providing different services for different kinds of PHE products. such as products perfection plans,product types choosing etc.
Providing different import brands PHE products and spares.
Providng different kinds of high quanlity PHE products.
Providing different technical services for different PHE products,for example installation,cleaning,maintenance etc.
Providing professioal design services for different renewable heat transfer systems and heat pump systems .
Providing different products for different renewable heat transfer systems and heat pump systems.
Application of DGXT PHE products
1.Nuclear Power Industry ，Cold water cooler，Diesel engine cooler
2.Ship building Industry,Diesel motor cooler,Jacket water cooler
3.Chemical Industry, Manufacturing titanium,Synthetic ammonia
4.Air conditioning,Cooling of the refrigerant,Cold temperature of the refrigeran
5.Heating,Heating for exhaust heat areas of steam stations
6.Paper,Cooling liquid sodium hydroxide,Heating or cooling liquid saline and alkaline for bleach
7.Textile industry,Heat recovery of different waste liquor
8.Food industy,Salt manufacturing，Dairy products
9.Pharmaceuticals Industry，Heating or cooling solution
10.Metal lurgy Industry，Heating or cooling aluminate mother liquor
11.Oil Industry，Heating or cooling synthetic detergent
12.Machine building industry，Cooling various quenching liquid
