Products Description
Application Features
Use in aerial bundled conductor (ABC) systems for city power grid transmission line.
Operating voltage up to 600/1000 volts. Main for overhead single-phase and three-phase electricity distribution and other purposes.Stable working temperature -10°C to 80°C Economical - Good electricity property and cheaper than cooper cables.Flexible - easy to install and work with distributions and other applications.Safe - prevent electric short circuit and potential risk of fire.Durable - anti UV Radiation and moisture, Corrosion Resistance.Aesthetically pleasing - Good finishing is guaranteed.Adaptable - physical properties and electricity suits Africa environment and market.
Specifications

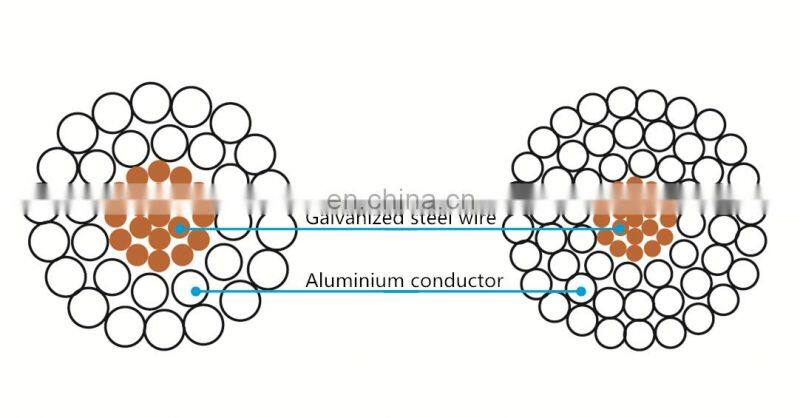

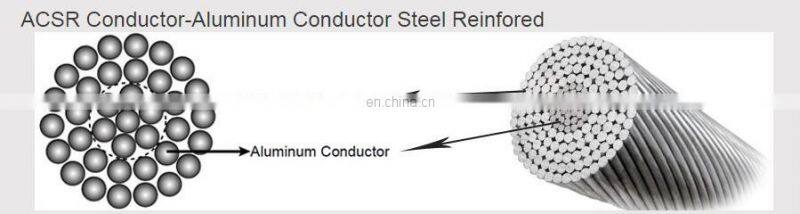

Conductor Technical Structure
Unit
Value



Structure
Center: steel wire



Nos./mm
1/2.0
Layer 1:steel wire
6/2.0
Layer 2: Aluminum wire
10/2.57
Layer 3: Aluminum wire
16/2.57
Standard
/
GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
Stranding direction of outer layer
Direction
Right-hand
Conductor diameter
mm
16.28±1％
Cross section
mm2
156.8±1％
Conductor weight
kg/km
547.8±1％
Rated tensile strength
kN
52
Modulus of Elasticity
GPa
73.9
Coefficient of linear expansion
10-6/℃
18.9
Max. DC Resistance at 20℃
Ohm/ft
0.637

Lay ratio
Aluminum layer

times
16-wire layer 10-14
10-wire layer 10-16
Steel layer
6-wire layer 18-30
Properties of Aluminum Wire (Before Stranding)
Unit
Value
Diameter and tolerance
mm
2.57±0.03
Min. tensile strength
MPa
175
Min. elongation at 250mm
%
1.7
Max. resistivity at 20℃
Ω·mm2/m
0.028172
Properties of Steel wire (Before stranding)
Unit
Value
Diameter and tolerance
mm
2.0±0.02
Min. tensile strength
MPa
1410
Min. tension at 1% elongation
MPa
1280
Min elongation at 250 mm
%
3.5
Class of zinc coating
/
Class A
Zinc coating quality
g /mm²
230
Conductor diameter
MM
6.0
Rated tensile strength
KN
/
packaging
Packaging & Shipping
Packing : Steel wooden drum (fumigation) Cable length in each drum: 1000m/2000m or as per actual cable length
requirements. Drum size: As per cable length and container size *In order to quote you accurate price, kindly tell us your needed
cable length quantity. Larger quantity, more discount benefit ready for you! Shipping Port:Tianjin, Qingdao, or other ports as per
your requireents. Sea freight:FOB/C&F/CIF quotation are all available. *For some countries such as Africa countries, middle east
countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

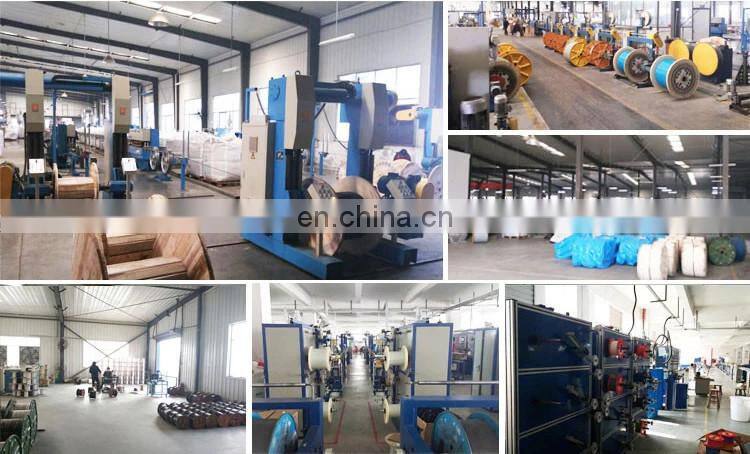

Company Profile

Hunan Guanglian Optoelectronics Technology Co., Ltd. was established in 2009. The company is located in China Changsha, Hunan. The company is an AAA credit enterprise and a national high-tech enterprise. The company has passed ISO9001 quality certification, TLC product certification, management system certification, power cable access license, Coal safety certification, and has obtained a number of technical patents, and has a comprehensive and unique solution in the national grid optical fiber transmission project. If you need visit our factory , we will meet you at the airport or train station.

lso we can offer other service. Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
