Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > CU/CCS/CCA 75Ohm Low Loss Coaxial Cable rg 11 PE/PVC/LSZH Coaxial Cable
CU/CCS/CCA 75Ohm Low Loss Coaxial Cable rg 11 PE/PVC/LSZH Coaxial Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CU/CCS/CCA 50 Ohm Low Loss RG8 PE/PVC/LSZH Jacket Coaxial CableNegotiableMOQ: 1 -
CU/CCS/CCA 50ohm Low Loss RG213 PE/PVC Outer Jacket Coaxial CableNegotiableMOQ: 1
-
High Quality 50OHM 75OHM RF RG Coaxial Cable WireNegotiableMOQ: 1
-
RG MIL-C-17 Coaxial Cable RG8XNegotiableMOQ: 1
-
CU/CCS/CCA 50ohm Low Loss RG214 PE/PVC/LSZH Jacket Coaxial CableNegotiableMOQ: 1
RG11

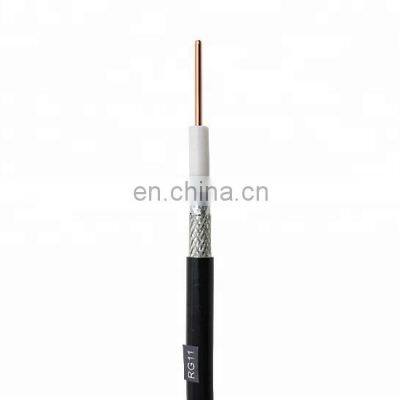

Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation First Shield Second Shield Jacket |
CCS Foam PE Bonded Aluminum Foil AL-Mg Wire Braid PVC |
1.63 7.11 7.30 8.00 10.03 |
Per customer’s requirements: The inner conductor could be CCS or BC;The second shield could be 96,112,128 or 144 AL-Mg /TC wires braiding;Jacket could be PVC or PE ; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(0C) |
75±3 54±2 84.0 1.6 ≤1.2 ≥20 ≥75 35.0 -25 to +70 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
250 300 400 500 600 865 1000 |
6.72 7.38 8.53 9.51 10.43 13.05 14.27 |
