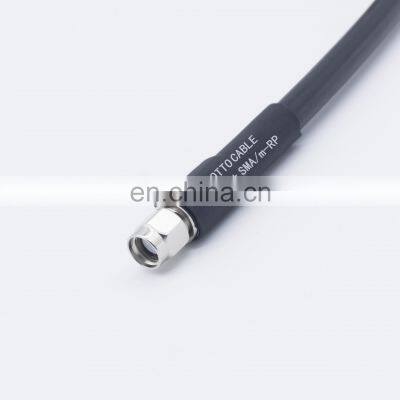

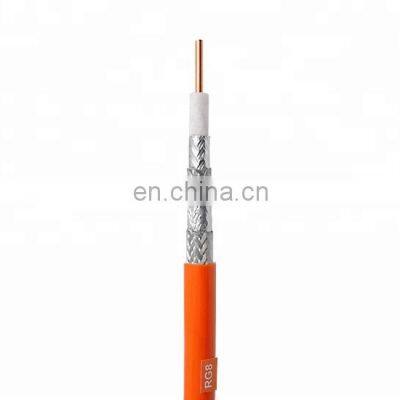

CU/CCS/CCA 50 ohm Low Loss RG8 PE/PVC/LSZH jacket Coaxial Cable

Item

Material

Diameter(mm)

Remarks

Inner Conductor

Dielectric

First Shield

Second Shield

Jacket

Copper Clad Aluminum

Foam PE

Bonded Aluminum Foil

TC Wire Braid

PVC

2.74

7.24

7.39

8.13

10.29

Impedance (Ω)

Capacitance (pF/m)

Velocity of Propagation (%)

Return Loss

Screening Effectiveness(db)

Voltage With Stand

Installation Temp(℃)

Operating Temp(℃)

Bending radius(mm)

50±3

78.4

85.0

≥18

≥90

2000.0

-30 to +70

-30 to +70

Min. 200

Frequency(MHz)

Max Attenuation(dB/100m)

150

450

900

1500

1800

2000

2500

5.0

8.9

12.8

16.8

18.6

19.6

22.2
