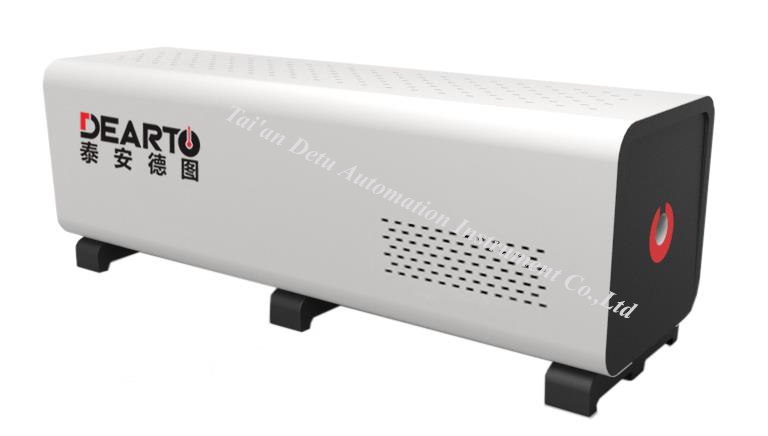

* Furnace inner size:φ40mmx1000mm
* Scope of use:Thermocouple annealing
* Temperature field index:one end of the temperature field is less than 100mm from the furnace mouth,and the uniformity of the temperature field of 400mm is less than±20°C
* Dimensions:1010×305×365(mm)
Home > Instruments & Meters > Test Instrument > Test Machine > Thermocouple Calibration Dedicated Test Furnace Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DEARTO
Place of Origin:
China
Model Number:
DTL Series
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Automatic Test System of Verification Calibration Thermocouple and Thermal ResistanceUS$ 30000 - 60000MOQ: 1 Set -
Automatic Multi-furnace Group Control System for Thermocouple CalibrationUS$ 30000 - 60000MOQ: 1 Set
-
Chilled-mirror Type Dew-point Meter Hygrometer as a Reference StandardNegotiableMOQ: 1 Piece
-
Intelligent PID Heat Thermostatic Small Oil Bath for Lab Temperature Calibration MetrologyNegotiableMOQ: 1 Piece
-
10%RH to 95%RH Humidity Range Humidity Standard Cabinet / ChamberUS$ 15000 - 25000MOQ: 1 Set
Brand Name
DEARTO
Place of Origin
China
Model Number
DTL Series
Power
Electronic
Usage
Other, Thermocouple test
Products Description

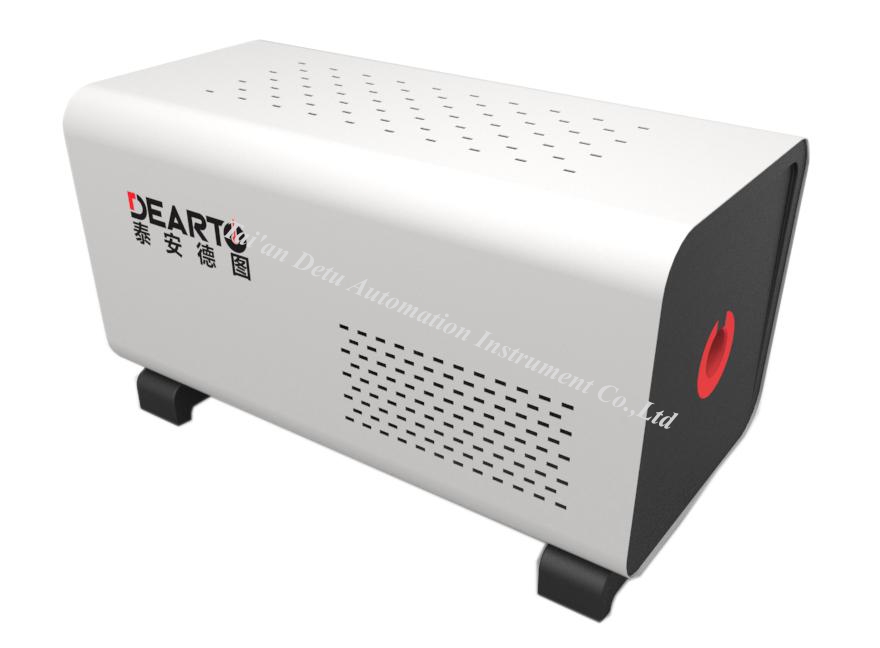

DTL series thermocouple verification furnace is a temperature field constant temperature equipment suitable for verification of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. This series of products has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national verification regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Product Paramenters

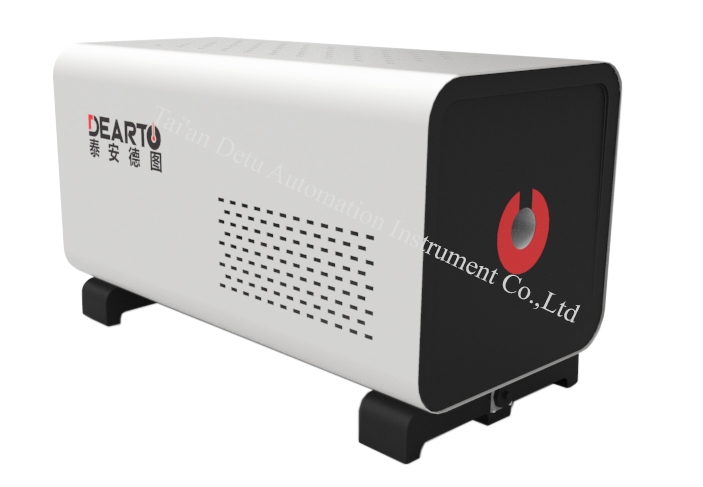

DTL-600G Low-cost metal thermocouple calibration furnace
* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:within 30mm of the effective working area,the temperature difference between any two points is not more than 0.5℃,the radius is within 14mm,and the temperature difference between any two points of the same section is not more than 0.25℃.
* Temperature range: 300℃~1200℃
* Thermal field distribution:within 30mm of the effective working area,the temperature difference between any two points is not more than 0.5℃,the radius is within 14mm,and the temperature difference between any two points of the same section is not more than 0.25℃.
DTL-600BG Precious metal thermocouple calibration furnace
* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:The highest temperature point deviates from the geometric
center of the furnace:≤20mm, Temperature gradient:≤0.4℃/10 mm.
* Temperature range: 300℃~1200℃
* Thermal field distribution:The highest temperature point deviates from the geometric
center of the furnace:≤20mm, Temperature gradient:≤0.4℃/10 mm.

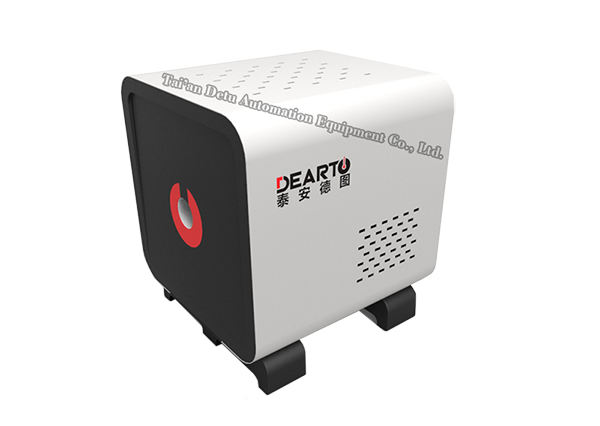

DTL-300G Short thermocouple calibration furnace
* Furnace inner size:40 mm x 300 mm
* Temperature range: 300℃~1200℃
* Temperature field index:the center of the temperature field deviates from the geometric center≤10mm,the axial temperature gradient: ≤0.4℃/10 mm
* Temperature range: 300℃~1200℃
* Temperature field index:the center of the temperature field deviates from the geometric center≤10mm,the axial temperature gradient: ≤0.4℃/10 mm
DTL-T Thermocouple annealing furnace
