Alloy dry block 50 to 1200 deg C temperature calibrator

Name: Alloy dry block 50 to 1200 deg C temperature calibrator
Brand: DEARTO
Availability: InStock

FOB Price

USD $2500 - $3500 / Piece

1 Piece(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Shenzhen / Shanghai
Payment TermsT/T L/C Cash
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DEARTO	Place of Origin	China
Model Number	DTG Series	Temperature Range	50℃-1200℃
Usage	Industrial	Theory	Temperature Controller
Accuracy	≤±0.2℃

Product Description

DTG series portable intelligent dry body furnace, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.

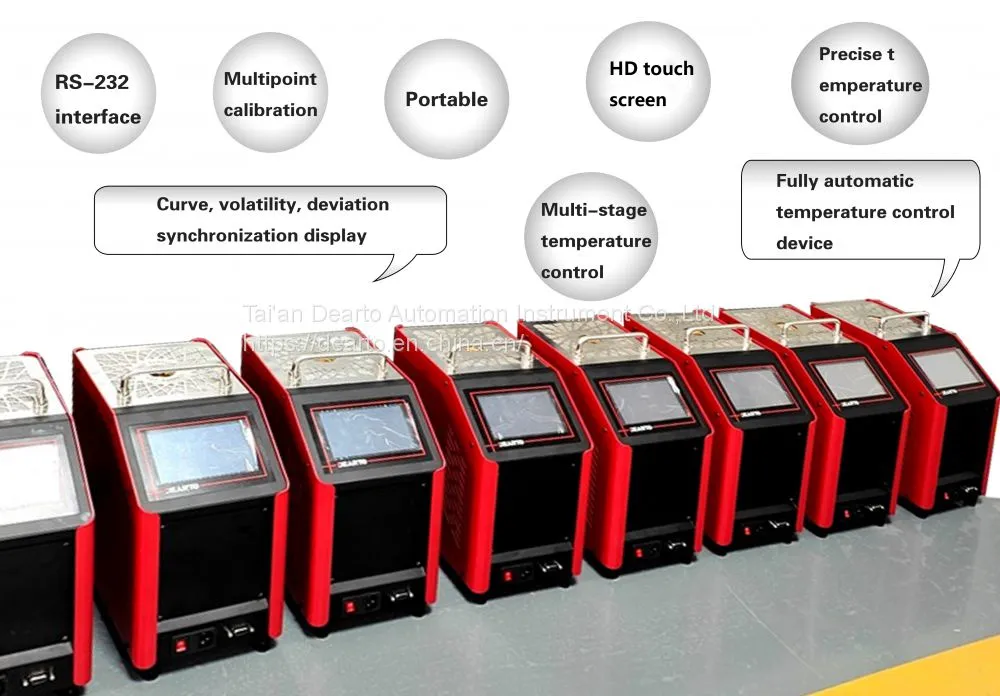

Functional characteristics

- Accurate temperature control and uniform temperature field
- Beautiful, portable and lightweight, convenient for on-site verification.
- Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
- Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
- Multi-point calibration interpolation calibration technology for more accurate temperature control
- RS-232 interface for data export
- Temperature curve, volatility, deviation synchronous display, intuitive reading

Product Paramenters

Medium temperature portable intelligent dry block furnace
Model	DTG-300G	DTG-450G	DTG-660G
Temperature range	50℃~300℃	50℃~450℃	50℃~660℃
Control style	Touch screen	Touch screen	Touch screen
Heat source	Heating	Heating	Heating
Display resolution	0.01℃	0.01℃	0.01℃
Horizontal temperature field	≤±0.3℃	≤±0.3℃	≤±0.3℃
Vertical temperature field	Within 30mm up from the bottom of the well≤1.0℃
Deep well	170mm	170mm	170mm
Standard hole diameter(mm)	φ6,φ8,φ8,φ8,φ10,φ12 When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions(mm)	310×165×360
P	800W	800W	1200W
Power supply	110/220V,60/50Hz

High temperature portable intelligent dry block furnace
Model	DTG-800G	DTG-1000G	DTG-1200G
Temperature range	300℃~800℃	300℃~1000℃	300℃~1200℃
Control style	Touch screen	Touch screen	Touch screen
Heat source	Heating	Heating	Heating
Display resolution	0.01℃	0.01℃	0.01℃
Temperature fluctuation	0.2℃/min	0.2℃/min	0.3℃/min
Standard hole diameter(mm)	φ6.5,φ12 When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Deep well	200mm	200mm	200mm
Dimensions(mm)	310×165×360
P	1800W	1800W	1800W
Power supply	110/220V,60/50Hz
