Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath

Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath thumbnail-1
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath thumbnail-2
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath thumbnail-3
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath thumbnail-4
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath thumbnail-5
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath photo-1
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath photo-2
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath photo-3
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath photo-4
Portable -40 to 180 C Intelligent Thermostatic High and Low Temperature Liquid Bath photo-5
US$ 3750 - 7000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
DEARTO
Place of Origin:
China
Model Number:
DTS-BG Series
Contact Supplier Request Quote Chat Now
Tai'an Dearto Automation Instrument Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEARTO
Place of Origin China
Model Number DTS-BG Series
Temperature Range -40℃-180℃
Usage Industrial
Theory Temperature Controller
Accuracy ≤0.02℃（0℃）
Product Overview

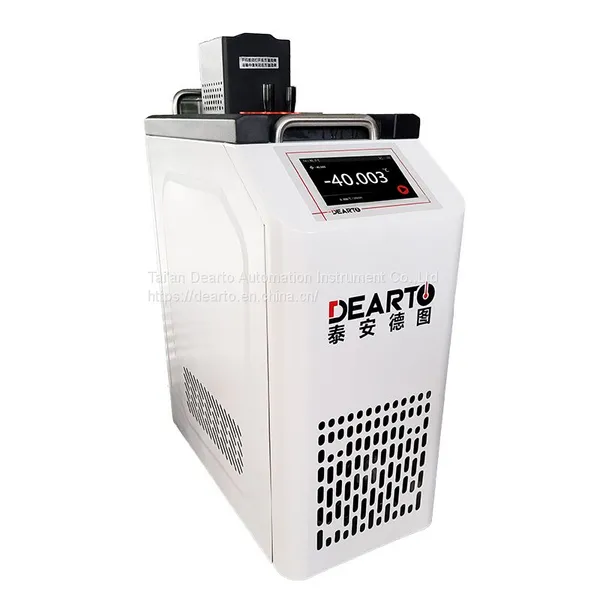

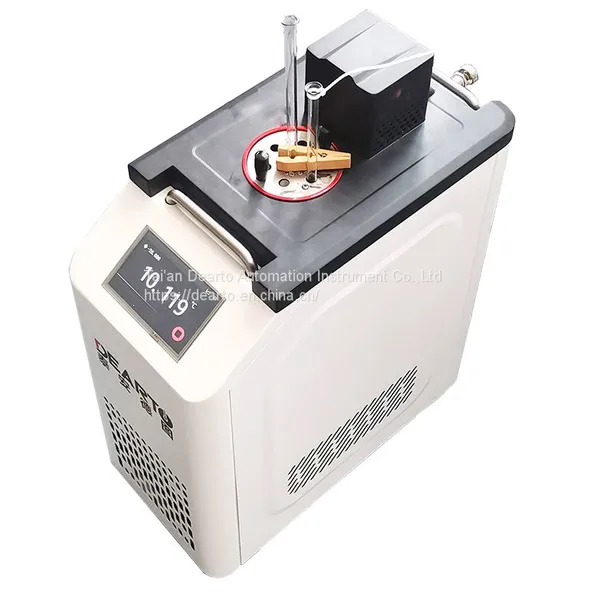

DTS-BG ultra-portable intelligent thermostatic oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
-Compact dimensions;
-Intelligent touch screen control;
-Display temperature difference,fluctuation data;
-Automatic segment temperature control,rapid cooling/heating "0"overshoot;
-Micro-circulation technology;

-Temperature curve display. ETC.

PRODUCT SPECIFICATIONS
Product name
                                Intelligent micro refrigerated/heated thermostatic bath
Model
DTS-10BG
DTS-20BG
DTS-30BG
DTS-95BG
DTS-125BG
DTS-40BG
Temperature range
-10℃~180℃
-20℃~150℃
-30℃~150℃
-40℃~95℃
-40℃~125℃
Customized

-20℃~180℃


-40℃~150/180℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation
≤±0.02℃/10min（0℃）
Temperature uniformity
≤0.02℃（0℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
5℃~10℃/min（20℃）
Work area size
Φ80×280 mm
Dimensions（mm）
500(L)×220(W)×600(H)
Working medium
Special medium
 Anhydrous alcohol
Special medium
Remarks
Flange size can be customized according to customer needs



Product Tags: thermostatic bath , PID liquid thermostat , refrigerant bath
