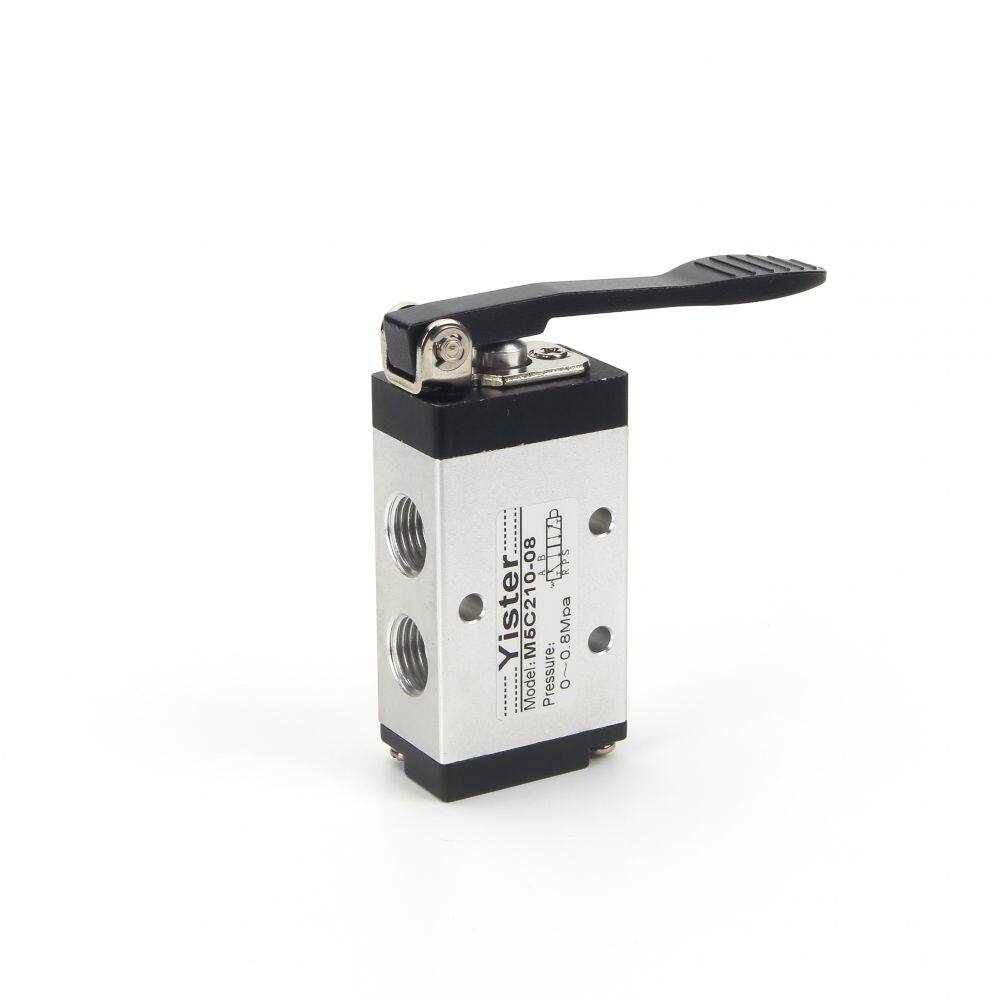

Help CenterM5C210-08 5/2 Way Machinery Solenoid Valve Pneumatic Valve
Related Products
-
Air Solenoid Valve 5/2 Way M5D210-08 Machinery Pneumatic Mechanical ValveUS$ 1 - 10MOQ: 1 Piece -
Selecto Type M5HS Series 5 Way M5HS210-08 Manual Mechanical ValveUS$ 1 - 10MOQ: 1 Piece
-
Air Solenoid Valve M5L210-08 Mechanical Pneumatic ValveUS$ 1 - 10MOQ: 1 Piece
-
5/2 Solenoid Valve Electric Solenoid Coil Pneumatic Air Control Valve M5PF210-08US$ 1 - 10MOQ: 1 Piece
-
M5PL Series 5 Way Latching Type Manual Valve M5PL210-08 Mechanical ValveUS$ 1 - 10MOQ: 1 Piece
Feature
Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be position test or [stroke switch] limit switch
M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
It is in sliding column structure that control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
Lubricant is not necessary.
Multi-mounting makes it convenient to install and apply.
The control joints of series of M5C, M5D, M5Y, M5R and M5L are made of metal which has longer service life and more reliable and steady performance.
Product description：
Item No. |
M3B |
M3C |
M3D |
M3R |
M3L |
M3Y |
M3PM |
M3PP |
M3PF |
M3PL |
M3HS |
Fluid |
Air |
||||||||||
Operation type |
External control |
||||||||||
Pressure range |
0-1.0 Mpa |
||||||||||
Proof pressure |
1.5Mpa |
||||||||||
temperature |
-20 to 70℃ |
||||||||||
Valve type |
3 port 2 position |
||||||||||
Port size |
05:M5 06:G1/8” 08:G1/4” |
||||||||||
Orifize size |
05:2.5mm2 110 :06:8.0mm2 210 : 06:9.0mm2, 08:12.0mm2 |
||||||||||
Lubrication |
Not required |
||||||||||
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic complete systems.
FAQ
1.Q.Whats your packing
A:Transparent plastic bag + white small box + neutral carton + pallet
2.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
4.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
5 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
