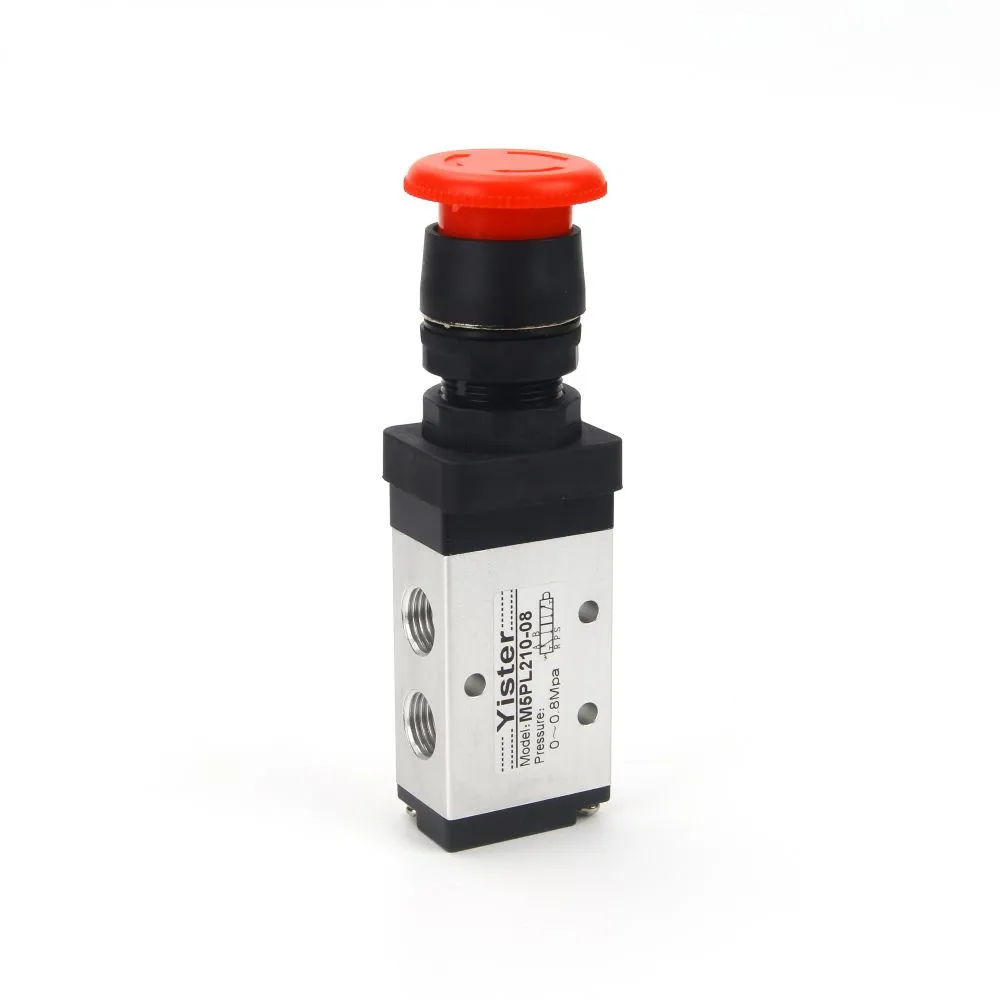

Help CenterM5PL Series 5 Way Latching Type Manual Valve M5PL210-08 Mechanical Valve
Related Products
-
M5PM210-08 Mushroom Pneumatic Push Button Air Valve Mechanical ValveUS$ 1 - 10MOQ: 1 Piece -
K23JC3-L6 Pneumatic 3/2 Way Roller Lever Manual Control Mechanical Reversing Valve for Paper Cup MachineUS$ 1 - 10MOQ: 1 Piece
-
Pneumatic Air Solenoid Valve M5PP210-08 Mechanical Pneumatic ValveUS$ 1 - 10MOQ: 1 Piece
-
Pneumatic Control Valve M5R210-08 5/2 Way Mechanical Valve With Roller HandleUS$ 1 - 10MOQ: 1 Piece
-
Lever Type M5Y 5 Way Series M5Y210-08 Manual ValveUS$ 1 - 10MOQ: 1 Piece
Feature
Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be position test or [stroke switch] limit switch
M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
It is in sliding column structure that control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
Lubricant is not necessary.
Multi-mounting makes it convenient to install and apply.
The control joints of series of M5C, M5D, M5Y, M5R and M5L are made of metal which has longer service life and more reliable and steady performance.
Product description：
Item No. |
M3B |
M3C |
M3D |
M3R |
M3L |
M3Y |
M3PM |
M3PP |
M3PF |
M3PL |
M3HS |
Fluid |
Air |
||||||||||
Operation type |
External control |
||||||||||
Pressure range |
0-1.0 Mpa |
||||||||||
Proof pressure |
1.5Mpa |
||||||||||
temperature |
-20 to 70℃ |
||||||||||
Valve type |
3 port 2 position |
||||||||||
Port size |
05:M5 06:G1/8” 08:G1/4” |
||||||||||
Orifize size |
05:2.5mm2 110 :06:8.0mm2 210 : 06:9.0mm2, 08:12.0mm2 |
||||||||||
Lubrication |
Not required |
||||||||||
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
The company mainly serves the metallurgy, shipbuilding, aviation, petroleum, chemical, mining, wharf, transportation, hydropower, construction, light industry and other industries.
The company adheres to the tenet of "reputation first, customer first", and earnestly fulfills the promise of "reliable quality, timely delivery, reasonable price, and excellent service" to provide customers with 100% qualified products.
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
5. Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
