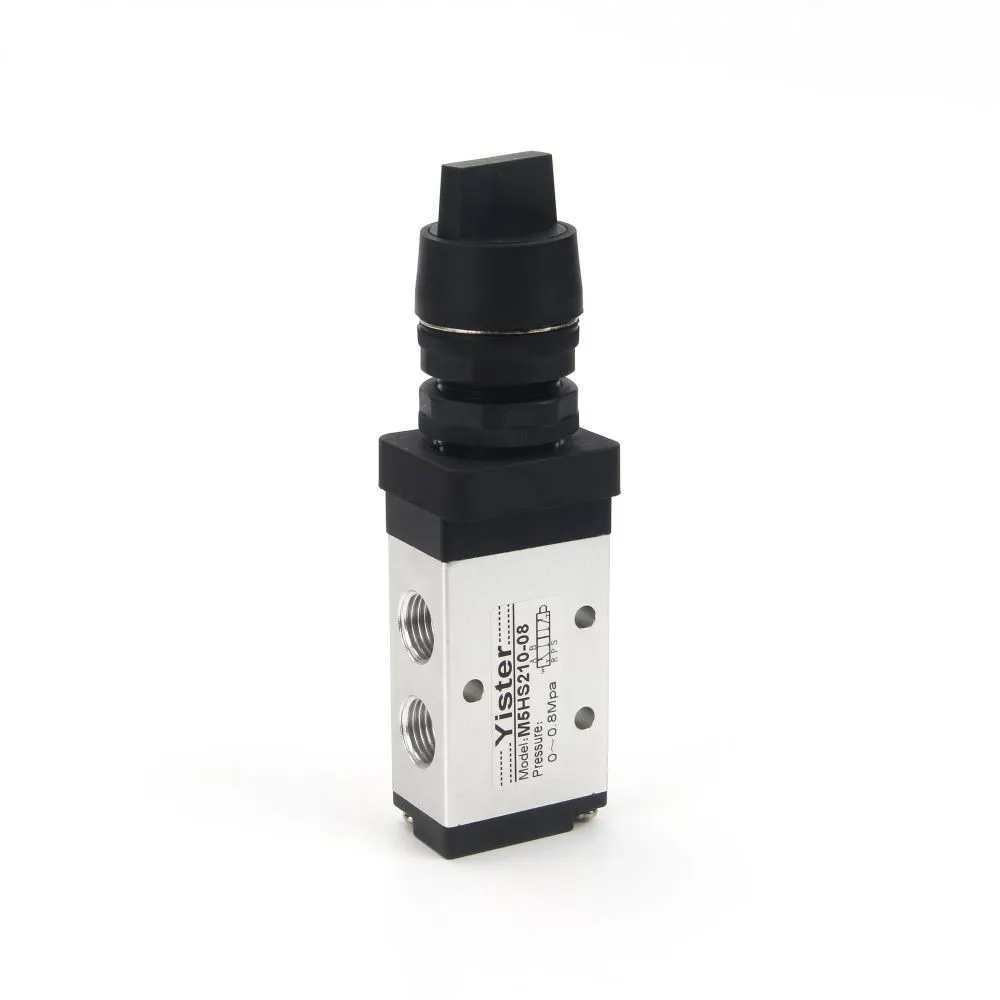

Help CenterSelecto Type M5HS Series 5 Way M5HS210-08 Manual Mechanical Valve
Related Products
-
Air Solenoid Valve M5L210-08 Mechanical Pneumatic ValveUS$ 1 - 10MOQ: 1 Piece -
5/2 Solenoid Valve Electric Solenoid Coil Pneumatic Air Control Valve M5PF210-08US$ 1 - 10MOQ: 1 Piece
-
M5PL Series 5 Way Latching Type Manual Valve M5PL210-08 Mechanical ValveUS$ 1 - 10MOQ: 1 Piece
-
M5PM210-08 Mushroom Pneumatic Push Button Air Valve Mechanical ValveUS$ 1 - 10MOQ: 1 Piece
-
K23JC3-L6 Pneumatic 3/2 Way Roller Lever Manual Control Mechanical Reversing Valve for Paper Cup MachineUS$ 1 - 10MOQ: 1 Piece
Product description：
Item No. |
M3B |
M3C |
M3D |
M3R |
M3L |
M3Y |
M3PM |
M3PP |
M3PF |
M3PL |
M3HS |
Fluid |
Air |
||||||||||
Operation type |
External control |
||||||||||
Pressure range |
0-1.0 Mpa |
||||||||||
Proof pressure |
1.5Mpa |
||||||||||
temperature |
-20 to 70℃ |
||||||||||
Valve type |
3 port 2 position |
||||||||||
Port size |
05:M5 06:G1/8” 08:G1/4” |
||||||||||
Orifize size |
05:2.5mm2 110 :06:8.0mm2 210 : 06:9.0mm2, 08:12.0mm2 |
||||||||||
Lubrication |
Not required |
||||||||||
Feature
Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be position test or [stroke switch] limit switch
M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
It is in sliding column structure that control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
Lubricant is not necessary.
Multi-mounting makes it convenient to install and apply.
The control joints of series of M5C, M5D, M5Y, M5R and M5L are made of metal which has longer service life and more reliable and steady performance.
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products.
The company’s designers are all professional and senior technical elites. After the company’s professional training, the ability to incorporate the company’s proprietary technology and the latest international technology into product design is the primary guarantee for the company’s products to reach the international advanced level.
The company’s business personnel are all served by the company’s best designers, who can assist customers in selecting the best models of standard products according to the working conditions of their equipment, and can design suitable non-standard products for customers. We can provide in-depth technical consulting services for customers’ special requirements.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
FAQ
1. Q:Why your quotation is different with the price listed in web?
A: We have different price policy to the buyer with different quantity and demand. you can contact with me directly to get a cheaper price.
2. Q:How many days you can send order after payment?
A: For standard products, we can send around 2~3 days after payment.
3. Q:Do you accept OEM?
A: Yes, we offer OEM service.
4. Q:What certificates can you offer?
A: CE, ISO9001 certificates.
