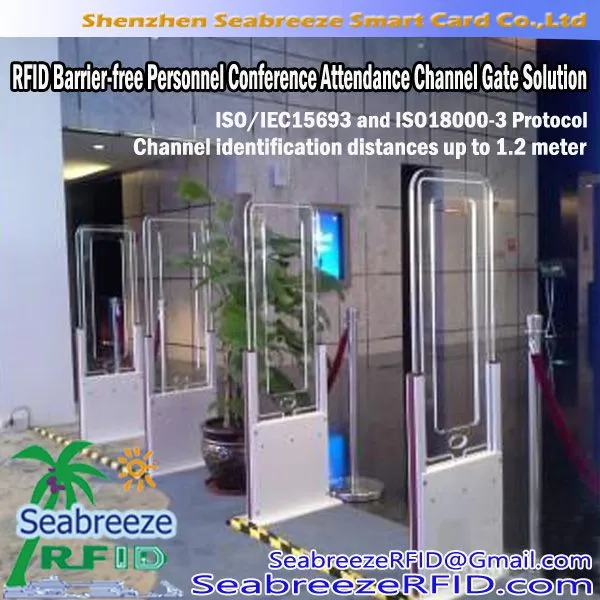

RFID Barrier-free Personnel Conference Attendance Channel Gate Solution
Supports multiple IC chip manufacturers' RFID electronic tags that comply with ISO/IEC15693 and ISO18000-3 standards protocol; channel identification distances up to 1.2 meter.
High Frequency Intelligent Channel Machine, Long Distance Access Control Attendance Machine, Barrier-free Conference Channel Gate Machine, Staff Accessibility Attendance Channel Machine, High-frequency Barrier-free Personnel Channel Gate Attendance Solution, High-frequency Barrier-free Conference Channel Solution, High-frequency Barrier-free Staff Channel Attendance Solution, High-frequency Barrier-free Staff Attendance Channel Gate Solution, Long-distance High Frequency Multiple Antenna Gate,
15693 & ISO 18000-3 Long-distance Multiple Antenna Time Attendance Gate
The ISO 15693 protocol high-frequency series of barrier-free channel gate identification devices integrate high-performance high-power readers and infrared sensors to quickly and accurately identify the entry and exit of carrying RFID cards and non-carry RFID cards personnel. The multi-directional identification of the channel and the access control attendance function can be further realized by the optional direction controller and the access controller.
This FA-253 series access control device supports reading multiple manufacturers' RFID tags conforming to ISO/IEC15693 and ISO18000-3 standards; the channel identification distance can be up to 1.2 meter (the recognition distance is related to the performance, size and on-site environment of the tag). This series of products can be widely used in accessibility conference sign-in, exhibition/concert/stadium/ordering conference and other access control systems, large factory enterprise access control attendance system.
This product can be customized for multiple antenna, 3 antennas, 4 antennas, 6 antennas and 8 antennas gate, especially suitable for access control time attendance channels.
Main feature
1. Integrated infrared sensor cutting analysis to accurately determine the entry and exit of carrying RFID cards personnel or non-carry RFID cards personnel to accurately prevent trailing;
2. Can integrate two-dimensional single-door two-way or two-door two-way controller and access controller (optional);
3. With a variety of communication interfaces: RS232/RS485/Wiegand interface and TCP/IP (optional);
4. Built-in sound and light alarm/prompt function (red light green light);
5. Using industrial grade design, can work in low temperature environment, waterproof, dustproof, lightning protection, anti-static design;
6. Can be customized according to the application needs of different customers;
7. The device has a noise detection function to detect whether there is electromagnetic interference in the environment.
Application
Conference sign-in management system
Exhibition Management System
Concert management system
Warehousing/counting management system
Jewelry store channel management system
Apartment residential access control system
Personnel attendance channel identification management system
Product acessories
RFID reader, channel dual antenna, power adapter, base, access controller, infrared device, key, RS232 communication line, RF line, test software, SDK development kit, communication protocol, etc.
Main technical parameters
Working frequency: 13.56MHz
Standard protocol: ISO/IEC15693 and ISO18000-3
Compliance card: NXP I CODE2, TI, ST
Input voltage: AC 100-240V
Working current:
RF power:
Working mode: Host mode / Scan mode / Channel mode
Communication interface: RS232/RS485/Wiegand interface and TCP/IP (optional)
GPIO: Scalable
Infrared sensing: three sets of infrared
Maximum communication baud rate: 38400 bps
Cards peak speed: > 100pcs/sec
Recognition distance: 1-120cm (dual antenna)
Work area support:
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208 with & without LBT regulations
Mainland China
Japan
Korea
Malaysia
Taiwan
Ambient temperature monitoring: support
Cooling method: air cooling
Antenna appearance: (length x width x height)1556x509x72mm, base(length x width): 545x180mm
Packing size: 160x64x23cmpiece
Weight: 25Kg/piece (set of double door with package weight 50kg)
Body material: Acrylic and sheet metal
Working temperature: -20℃~+55℃
Storage temperature: -20℃~+85℃
Operating humidity:
